NEXCOM Industrial Software | AIC OpcUa Extender Server Professional

Software Package for Industrial Internet of Things

Merchandise number：AIC OpcUa Extender Server Professional

Discounted price:US$
Sale US$
MSRP US$
Use bonus pointspt.

Description：

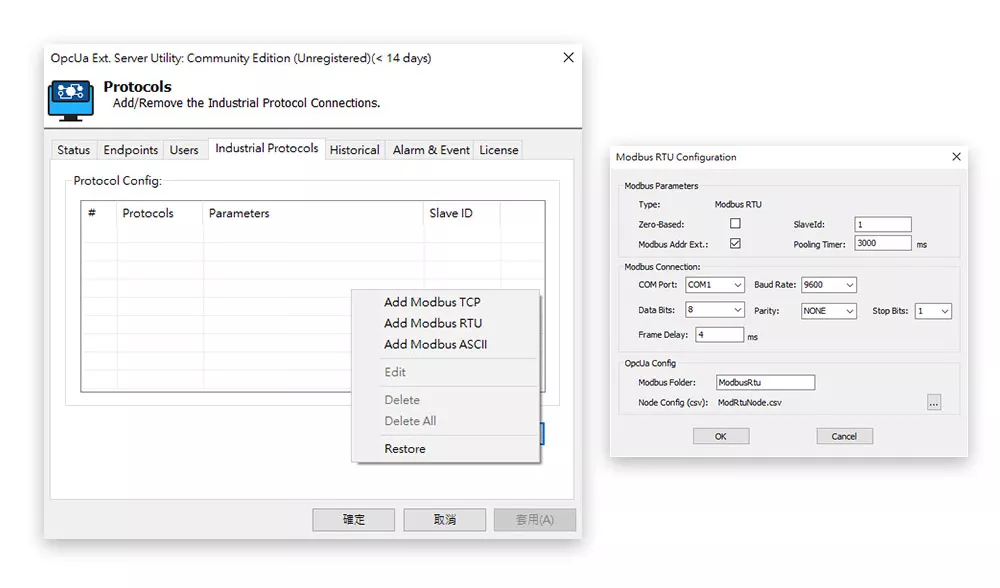

Seamless Connectivity:
Effortlessly connect to Modbus/TCP, Modbus/RTU, and Modbus/ASCII devices.

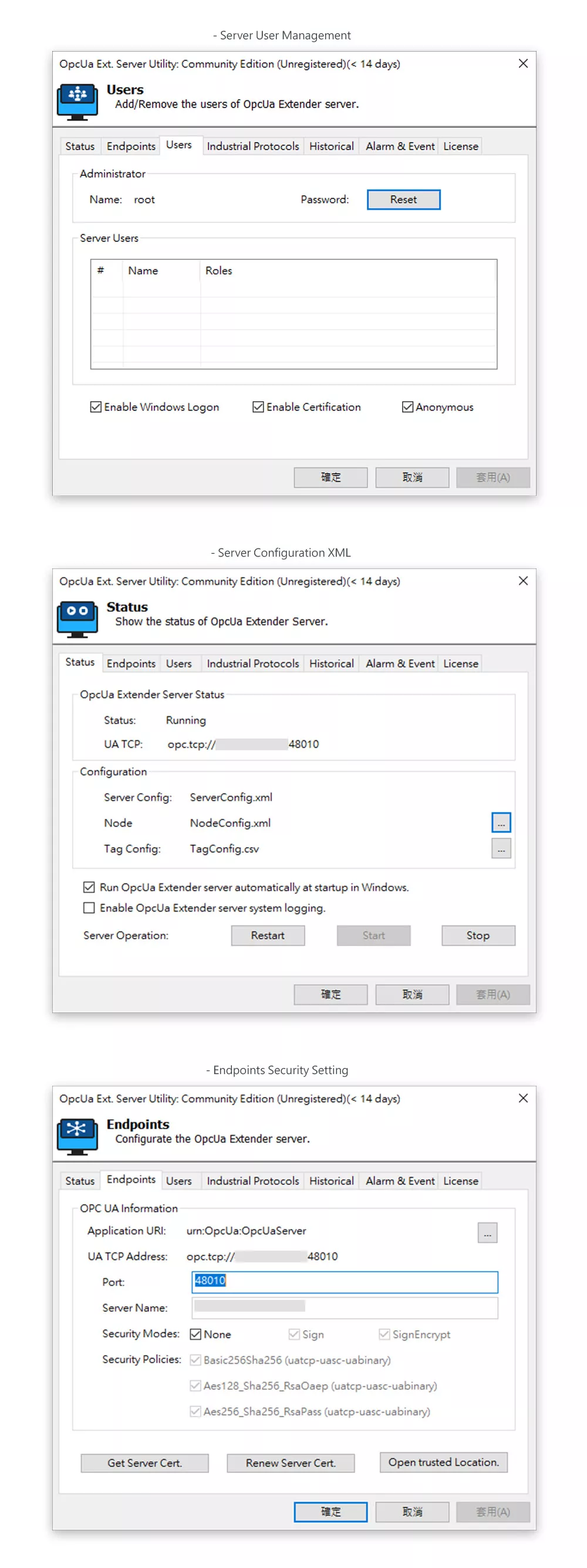

Advanced Security:
Multi-user authentication via Windows logon and certification for secure access.
Custom Data Models:
Define your own data structures and information models to suit your needs.

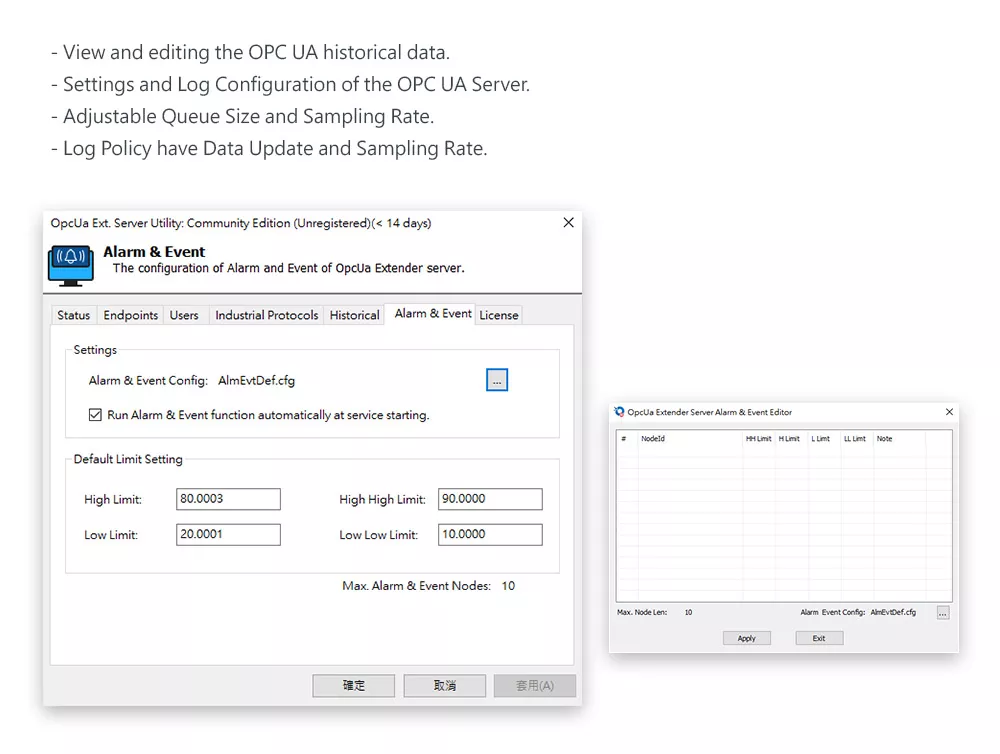

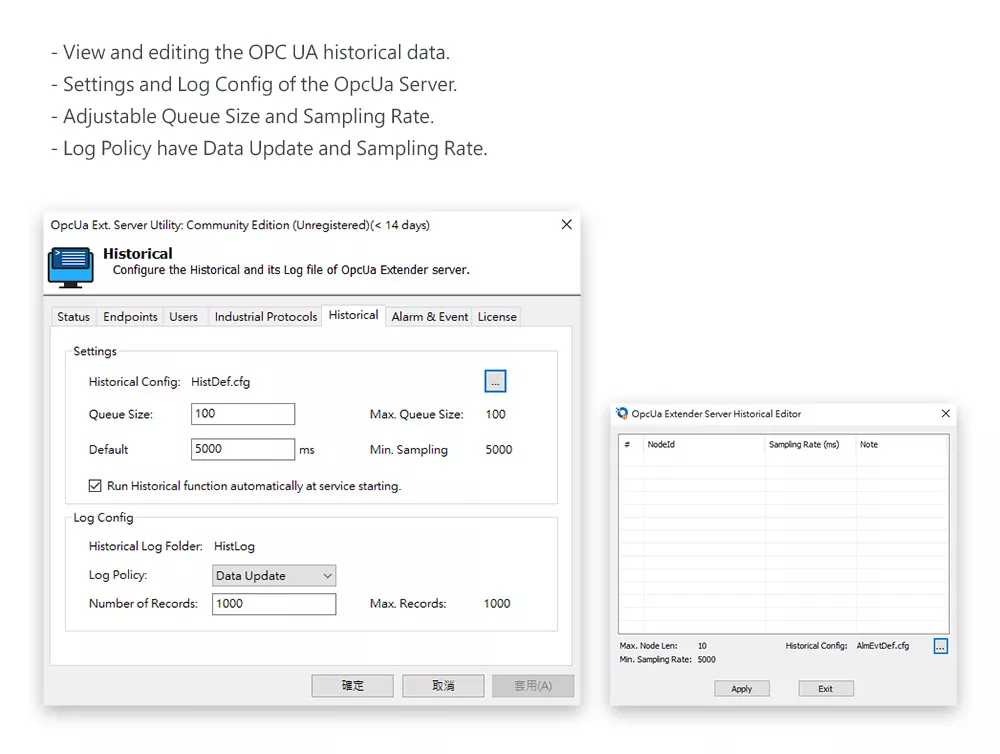

Comprehensive Data Logging:
Full-featured data logger with easy access to historical data, alarms, and events.
High Scalability:
Support for up to 1,000 concurrent client connections for large-scale deployments.

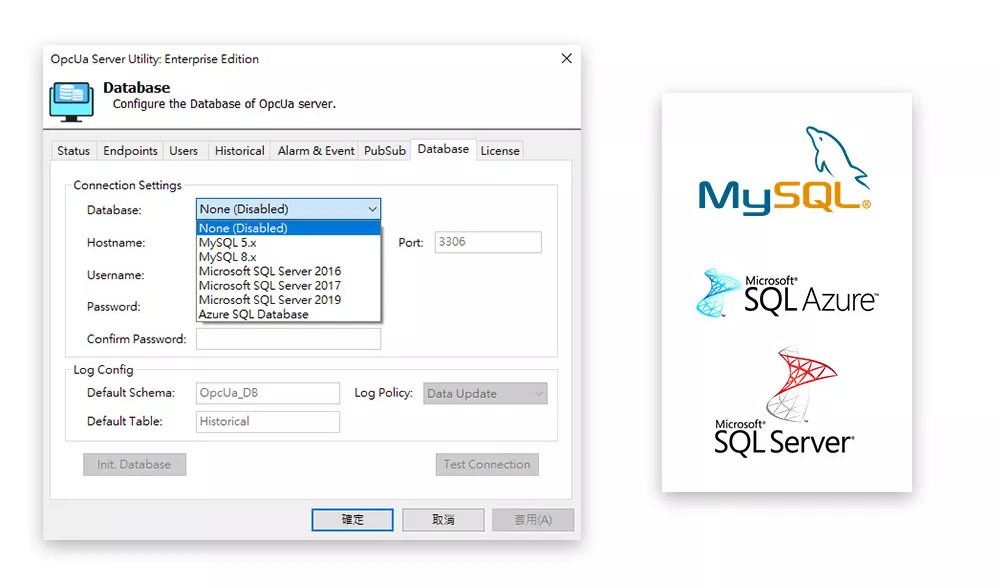

Flexible Data Storage:
Save and convert data to MySQL, MS SQL, Azure SQL, and .CSV formats.
Real-Time Performance:
Supports a maximum historical queue size of 1,000 with 500ms sampling rate.
Easy Integration:
Access data and configure nodes via a RESTful API.

Spec.

Community
- Max Connection Sessions
  2
- Max Browse Nodes
  10
- Max Historical Queue Size
  100
- Min Historical Sampling Rate
  5,000ms
- Log size per file (.csv)
  1,000
- Max Event Node
  10
- Remote Control by Restful
  --
- Industry Protocol TAGs
  10
- Database Connection
  --
- P/N
  --
- Authorization
  Permanent License
Standard
- Max Connection Sessions
  20
- Max Browse Nodes
  128
- Max Historical Queue Size
  1,000
- Min Historical Sampling Rate
  1,000ms
- Log size per file (.csv)
  2,000
- Max Event Node
  64
- Remote Control by Restful
  Ｏ
- Industry Protocol TAGs
  100
- Database Connection
  --
- P/N
  PAICH10060024
- Authorization
  Permanent License
Professional
- Max Connection Sessions
  100
- Max Browse Nodes
  512
- Max Historical Queue Size
  4,000
- Min Historical Sampling Rate
  500ms
- Log size per file (.csv)
  10,000
- Max Event Node
  200
- Remote Control by Restful
  Ｏ
- Industry Protocol TAGs
  1,000
- Database Connection
  Ｏ
- P/N
  PAICH10060025
- Authorization
  Permanent License

Own Brand, Own Factory Production: High-quality assurance and global fast shipping.
Ships Fast: Orders are processed and shipped within 2 business days.
2-Year Global Warranty: Limited hardware warranty from the shipment date.
30-Day Return Policy: Satisfaction guarantee window (terms apply).
Free Shipping: Complimentary shipping on eligible global orders.
Direct Support: For any usage issues after purchase, please feel free to contact us anytime.

NEXCOM Return & Warranty Policy

1. Return Window (30 Days)

Customers may request a return or exchange within 30 days. The period is calculated from the shipment date (as shown on the invoice) to the date the return request is formally submitted.

* Please note: A "Return" (for refund) is distinct from our "2-Year Hardware Warranty" (for repair).

2. 2-Year Limited Warranty

We provide a 2-year warranty on all Industrial PC hardware, starting from the shipment date. This covers technical defects in materials and workmanship. During this period, NEXCOM offers repair or replacement services according to the RMA evaluation.

3. Return Conditions

Items must be in original, unused condition with all original packaging, manuals, and accessories.
Customized Orders: IPCs with specific custom configurations (e.g., custom RAM/SSD/OS) are Non-Returnable unless a hardware defect is confirmed.
Electronic components must be returned in their original anti-static packaging.

4. Shipping & Destination

All returns must be shipped back to our headquarters in Taiwan:

Return Address:
NEXCOM International Co., Ltd.
9F, No.920, Zhongzheng Rd., Zhonghe Dist.,
New Taipei City, Taiwan 235015

Scenario	Cost Responsibility
Defective Items (DOA)	Seller covers return shipping.
Non-Defective Returns	Buyer covers shipping and duties. Restocking fees will be quoted based on actual inspection of the returned unit.

5. RMA Procedure

To initiate a return, please email us at ecommerce@nexcom.com.tw to obtain an RMA number.

* Shipments without an RMA number clearly marked on the outer box will be refused and returned at the sender's expense.

Contact Us: ecommerce@nexcom.com.tw
NEXCOM International Co., Ltd. | Industrial Computing Solutions

- NEXCOM AIoT Mart Customer Service Email: ecommerce@nexcom.com.tw

Version
Community

Max Connection Sessions
2

Max Browse Nodes
10

Max Historical Queue Size
100

Min Historical Sampling Rate
5,000ms

Log size per file (.csv)
1,000

Max Event Node
10

Remote Control by Restful
--

Industry Protocol TAGs
10

Database Connection
--

P/N
--

Authorization
Permanent License
Standard

Max Connection Sessions
20

Max Browse Nodes
128

Max Historical Queue Size
1,000

Min Historical Sampling Rate
1,000ms

Log size per file (.csv)
2,000

Max Event Node
64

Remote Control by Restful
Ｏ

Industry Protocol TAGs
100

Database Connection
--

P/N
PAICH10060024

Authorization
Permanent License
Professional

Max Connection Sessions
100

Max Browse Nodes
512

Max Historical Queue Size
4,000

Min Historical Sampling Rate
500ms

Log size per file (.csv)
10,000

Max Event Node
200

Remote Control by Restful
Ｏ

Industry Protocol TAGs
1,000

Database Connection
Ｏ

P/N
PAICH10060025

Authorization
Permanent License

After-sales service

Own Brand, Own Factory Production: High-quality assurance and global fast shipping.
Ships Fast: Orders are processed and shipped within 2 business days.
2-Year Global Warranty: Limited hardware warranty from the shipment date.
30-Day Return Policy: Satisfaction guarantee window (terms apply).
Free Shipping: Complimentary shipping on eligible global orders.
Direct Support: For any usage issues after purchase, please feel free to contact us anytime.

NEXCOM Return & Warranty Policy

1. Return Window (30 Days)

Customers may request a return or exchange within 30 days. The period is calculated from the shipment date (as shown on the invoice) to the date the return request is formally submitted.

* Please note: A "Return" (for refund) is distinct from our "2-Year Hardware Warranty" (for repair).

2. 2-Year Limited Warranty

3. Return Conditions

Items must be in original, unused condition with all original packaging, manuals, and accessories.
Customized Orders: IPCs with specific custom configurations (e.g., custom RAM/SSD/OS) are Non-Returnable unless a hardware defect is confirmed.
Electronic components must be returned in their original anti-static packaging.

4. Shipping & Destination

All returns must be shipped back to our headquarters in Taiwan:

Return Address:
NEXCOM International Co., Ltd.
9F, No.920, Zhongzheng Rd., Zhonghe Dist.,
New Taipei City, Taiwan 235015

Scenario	Cost Responsibility
Defective Items (DOA)	Seller covers return shipping.
Non-Defective Returns	Buyer covers shipping and duties. Restocking fees will be quoted based on actual inspection of the returned unit.

5. RMA Procedure

To initiate a return, please email us at ecommerce@nexcom.com.tw to obtain an RMA number.

* Shipments without an RMA number clearly marked on the outer box will be refused and returned at the sender's expense.

Contact Us: ecommerce@nexcom.com.tw
NEXCOM International Co., Ltd. | Industrial Computing Solutions

AIC OpcUa Extender Server Professional Industrial Software

Enhancing Industrial Data Communication with OPC UA Technology

AIC OpcUa Extender Server is an Open Platform Communications Unified Architecture (OPC UA) server package focused on communicating with systems for data collection. Based on the OPC UA information model, we provide the platform required for information collection and allow users to leverage the serviceoriented architecture of OPC UA to organize their complex data into an OPC UA namespace. With features such as tag subscriptions and real-time updates, AIC OpcUa Extender Server plays a key role as a communication portal that allows OPC UA clients to manipulate HMI or PLC data. AIC OpcUa Extender Server consists of a configurable GUI for parameters and settings as well as an OPC UA server service to act as a hub for gathering data and sending them to OPC UA client applications, enabling a streamlined OPC UA system operation.

AIC OpcUa Extender Server

Introduction of OPC UA Extender Server

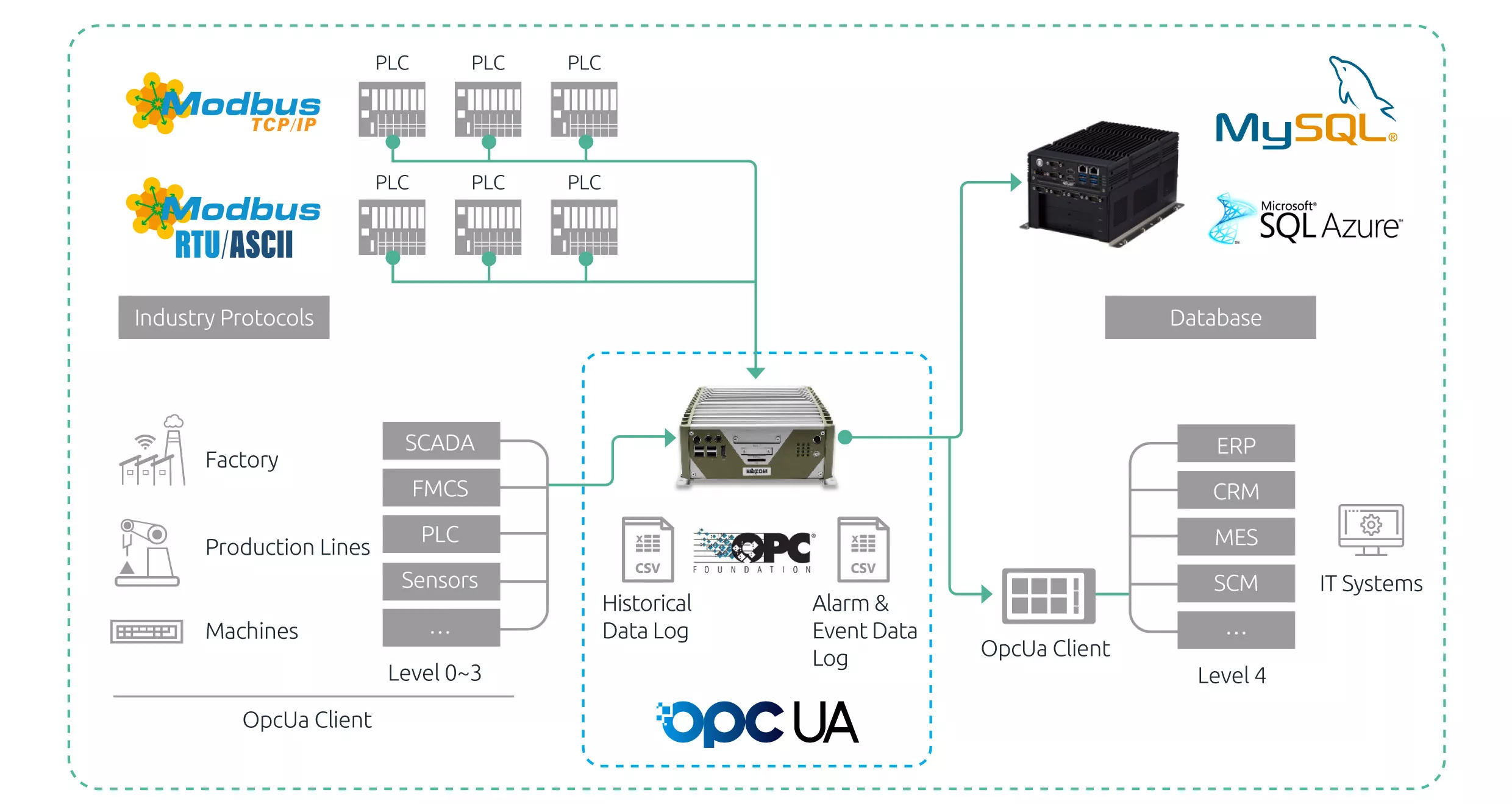

OPC UA is an industrial communication protocol that enables seamless data exchange between machines for real-time monitoring and automation. It connects devices like HMIs, PLCs, and SCADA systems, integrating various software and hardware interfaces. AIC OpcUa provides a flexible server solution, supporting multiple operating systems and allowing OPC UA clients to access real-time data from devices, simplifying data collection and system management.

Is there a fee for the OPC UA Extender Server software

The Community Edition is a permanent free version, the Standard, Professional, and Enterprise Business Edition are paid versions. You are welcome to use the free version first, download it now.

OPC UA Function

Based on machine to machine (M2M) communication processing, OPC UA is used to define data transmission between two or even multiple devices, which can be wired transmission or wireless transmission. It belongs to the function of Internet of Things transmission, not limited to smart devices and data exchange. It also includes digital signal transmission of sensors and actuators, which is transmitted from on-premises to the cloud after edge computing for complex factory data transmission and analysis operations. Under the trend of Industry 4.0, the development from automation to intelligence achieves the so-called “Smart Factory”, which has the ability to optimize the production process of the factory by itself and expand without human intervention. Moreover, it is able to track in real-time, the entire production process, life cycle, utilization rate, cumulative production value and innovation, all of which can deploy IoT for learning through OPC UA.

OPC UA development environment

It is an open standard unified architecture to standardize and simplify machine-to-machine (M2M) communication. It can work on any operating system, including, Windows, Linux, MacOS, iOS and Android. Moreover, it offers a comprehensive API interface to easily interface with different software applications. It is an independent platform that is not dependent on any programming language or application platform.

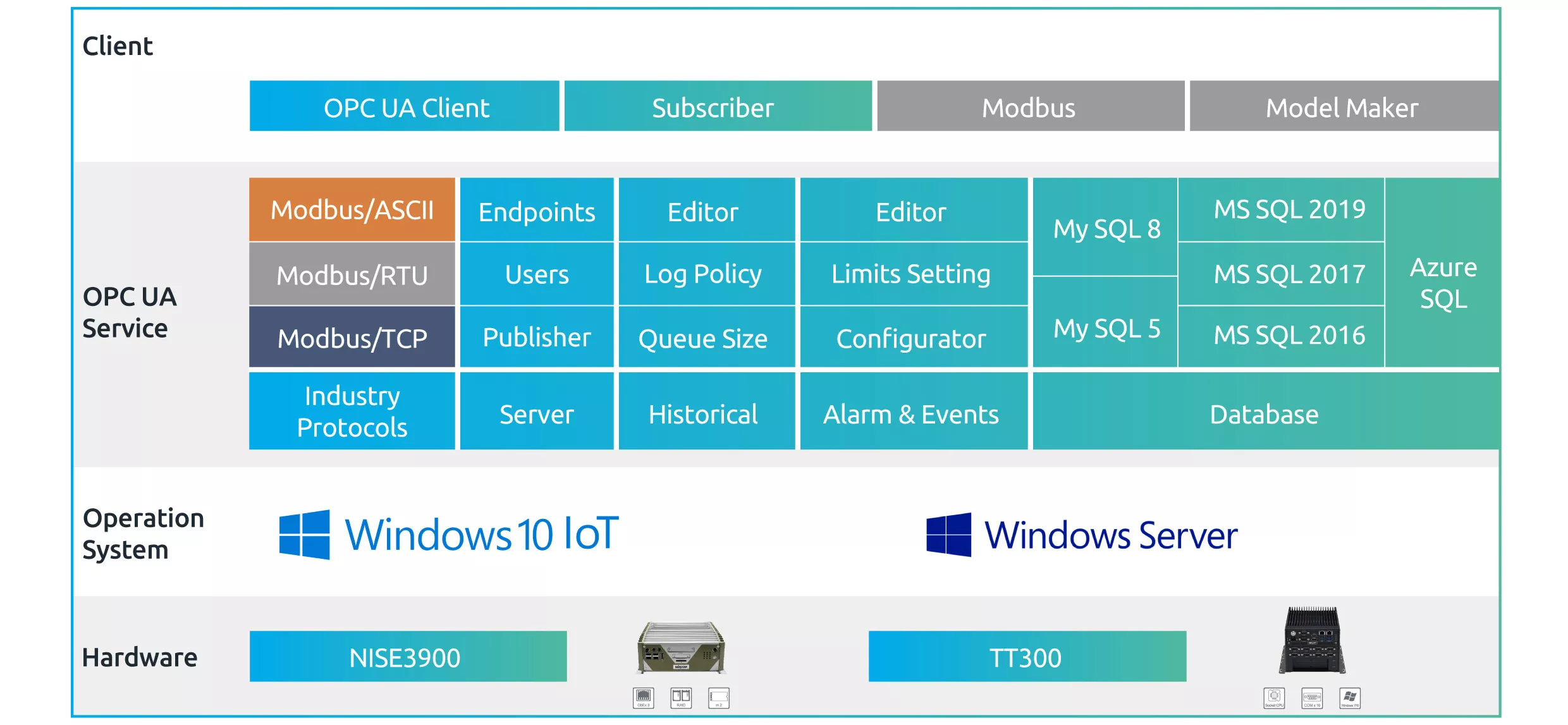

OPC UA Protocol Architecture

It provides two communication nodes, independent of the actual communication protocol, using TCP and HTTP for client-server and pub/sub, the bottom layer of OPC UA is a complete IP space, variable structure and warning mode. The second layer provides TCP and HTTP settings for the protocol layer. The third layer is the use of programming languages namely, Python, Java, .NET, and Ansi/C++ languages, and the fourth layer is the API connection layer. Three encoding methods are used: UA Binary, JSON, and XML are connected in accordance with the opc.tcp:// method.

The OPC UA unified architecture provides the following integrated content:

Real-time data access specification (OPC DA):
It mainly collects real-time data on the equipment side and transmit it to the remote storage system by DCOM, such as MES, SCADA, etc.
Historical data access specification (OPC Hda):
For the historical data that has been archived on the device side, it is transmitted to the analysis application.
Warning event prompt specification (OPC A&E):
It can define the transmission rules of warning events and the conditions of variables.
OPC security protocol
Integrate all the dispersion provided by OPC in the past into OPC UA.
