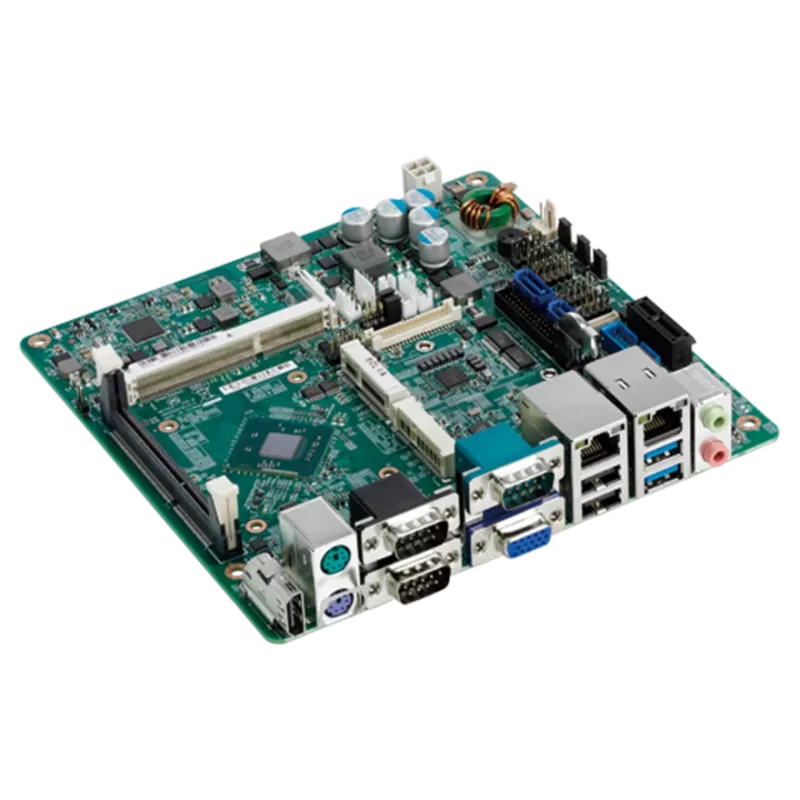

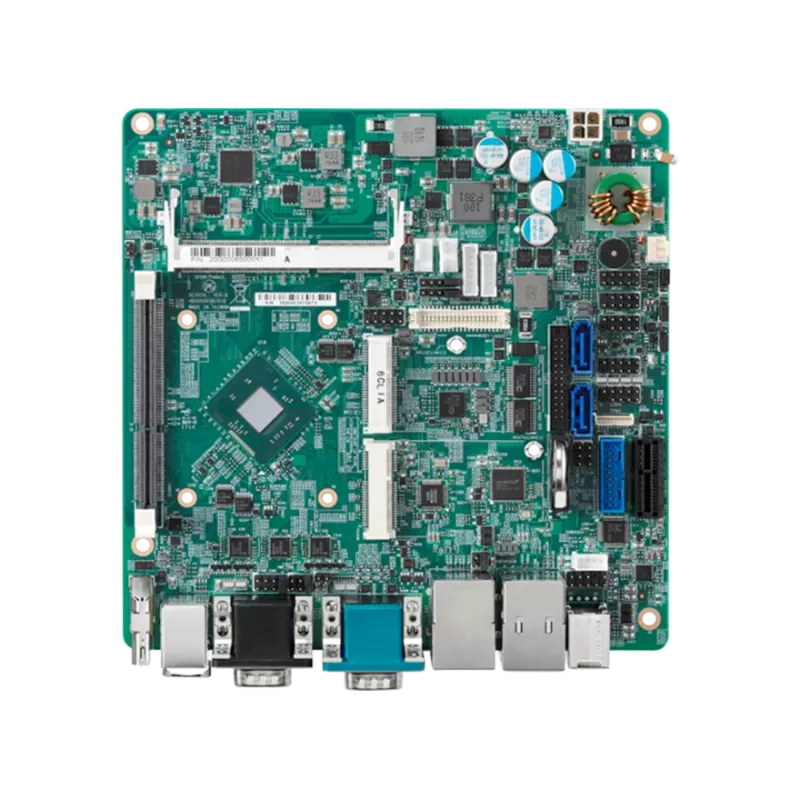

NexCOBOT Embedded board | Mini-ITX NexCOBOT NEX 650-ADU

NexCOBOT Embedded board | Mini-ITX NexCOBOT NEX 650-ADU

Mini-ITX form Factor with Onboard Intel® Celeron® Processor J1900 Product Family

Merchandise number：10G00065007X0

Discounted price:US$
Sale US$
MSRP US$
Use bonus pointspt.

Description：

Compact Form Factor:
Mini-ITX form factor for flexible integration
Powerful Processor:
Intel Celeron J1900 processor for efficient performance
Memory:
Up to 8GB DDR3/L memory for demanding applications
Graphics:
24/48-bit LVDS for high-quality display output
Wide Voltage Range:
12-24V DC-in for versatile power supply options
Customizable:
Can be embedded into fanless or 1U/2U rack-mounted chassis
Rich I/O:
Supports various I/O interfaces for diverse connectivity

Download file

Spec.

Form Factor
- Dimensions: Mini-ITX (6.7-in x 6.7-in)
Processor System
- CPU: Intel® Celeron® processor J1900
- Core number: 4
- Max speed: (by CPU)
- L3 cache: 2MB
- Chipset: N/A
- BIOS: UEFI
Expansion Slot
- mini-PCIe: 1 (full size)
- mSATA: 1
- PCIe: 1
Memory
- Technology: dual channel DDR3L 1333 MHz SDRAM
- Max.: 8GB
- Socket: 2 x SO-DIMMv
Graphics
- Controller: Intel® Gen7 Intel® graphics DX 11, OGL3.2
- VRAM: shared memory
- VGA: supports max. resolution 1920 x 1200
- LVDS: dual channel 24-bit, max resolution 1920 x 1200@60Hz
- HDMI: supports HDMI 1.3a, max resolution 1920 x 1200
Ethernet
- Ethernet: 10/100/1000 Mbps
- Controller: GbE LAN: 2 x Realtek RTL8111H-CG
- Connector: 2 x RJ-45
Rear I/O
- Max. data transfer rate: SATA2 (3.0 Gb/s)
- Rear I/O
- VGA: 1
- HDMI: 1
- Ethernet: 2
- USB: 4 (2 x USB 3.0, 2 x USB 2.0)
- Audio: 2 (Mic-in, Line-out)
- Serial: 3 (RS-232/422/485)
- PS2: 2 (1 x keyboard, 1 x mouse)
Internal Connector
- USB: 6 (2 x USB 3.0, 4 x USB 2.0)
- LVDS/inverter: 1/1
- VGA: 1 (shared with rear I/O VGA COM)
- Serial: 2 (RS-232)
- SATA: 2 x SATA2 (3.0Gb/s)
- mPCIe: 1
- Parallel: 1
- mSATA: 1 (shared)
- GPIO 8-bit: 4 x GPI + 4 x GPO
- SATA PWR output con: 1
- Speaker header: 1
Watchdog Timer
- Output: from super I/O to drag RESETCON#
- Interval: 256 segments, 0,1,2…255sec/min
Power Requirements
- Input PWR: 12~24V DC-in (4-pin ATX PWR Con)
- Power on: AT/ATX supported
- AT: directly PWR on as power input ready
- ATX: press button to PWR on after power input ready
Environment
- Temperature: 0ºC~60ºC
OS Support Lists
- Windows 7/ Windows 8
Certifications
- CE/FCC
Weight Information
- 1Kg
Warranty
- 2 year global warranty

Own Brand, Own Factory Production: High-quality assurance and global fast shipping.
Ships Fast: Orders are processed and shipped within 2 business days.
2-Year Global Warranty: Limited hardware warranty from the shipment date.
30-Day Return Policy: Satisfaction guarantee window (terms apply).
Free Shipping: Complimentary shipping on eligible global orders.
Direct Support: For any usage issues after purchase, please feel free to contact us anytime.

NEXCOM Return & Warranty Policy

1. Return Window (30 Days)

Customers may request a return or exchange within 30 days. The period is calculated from the shipment date (as shown on the invoice) to the date the return request is formally submitted.

* Please note: A "Return" (for refund) is distinct from our "2-Year Hardware Warranty" (for repair).

2. 2-Year Limited Warranty

We provide a 2-year warranty on all Industrial PC hardware, starting from the shipment date. This covers technical defects in materials and workmanship. During this period, NEXCOM offers repair or replacement services according to the RMA evaluation.

3. Return Conditions

Items must be in original, unused condition with all original packaging, manuals, and accessories.
Customized Orders: IPCs with specific custom configurations (e.g., custom RAM/SSD/OS) are Non-Returnable unless a hardware defect is confirmed.
Electronic components must be returned in their original anti-static packaging.

4. Shipping & Destination

All returns must be shipped back to our headquarters in Taiwan:

Return Address:
NEXCOM International Co., Ltd.
9F, No.920, Zhongzheng Rd., Zhonghe Dist.,
New Taipei City, Taiwan 235015

Scenario	Cost Responsibility
Defective Items (DOA)	Seller covers return shipping.
Non-Defective Returns	Buyer covers shipping and duties. Restocking fees will be quoted based on actual inspection of the returned unit.

5. RMA Procedure

To initiate a return, please email us at ecommerce@nexcom.com.tw to obtain an RMA number.

* Shipments without an RMA number clearly marked on the outer box will be refused and returned at the sender's expense.

Contact Us: ecommerce@nexcom.com.tw
NEXCOM International Co., Ltd. | Industrial Computing Solutions

NexCOBOT NEX 650-ADU Datasheet
- NEXCOM AIoT Mart Customer Service Email: ecommerce@nexcom.com.tw
Access NEXCOM Industrial Solutions on Our Official Online Channels:

Specifications
Form Factor

Dimensions: Mini-ITX (6.7-in x 6.7-in)
Processor System

CPU: Intel® Celeron® processor J1900

Core number: 4

Max speed: (by CPU)

L3 cache: 2MB

Chipset: N/A

BIOS: UEFI
Expansion Slot

mini-PCIe: 1 (full size)

mSATA: 1

PCIe: 1
Memory

Technology: dual channel DDR3L 1333 MHz SDRAM

Max.: 8GB

Socket: 2 x SO-DIMMv
Graphics

Controller: Intel® Gen7 Intel® graphics DX 11, OGL3.2

VRAM: shared memory

VGA: supports max. resolution 1920 x 1200

LVDS: dual channel 24-bit, max resolution 1920 x 1200@60Hz

HDMI: supports HDMI 1.3a, max resolution 1920 x 1200
Ethernet

Ethernet: 10/100/1000 Mbps

Controller: GbE LAN: 2 x Realtek RTL8111H-CG

Connector: 2 x RJ-45
Rear I/O

Max. data transfer rate: SATA2 (3.0 Gb/s)

Rear I/O

VGA: 1

HDMI: 1

Ethernet: 2

USB: 4 (2 x USB 3.0, 2 x USB 2.0)

Audio: 2 (Mic-in, Line-out)

Serial: 3 (RS-232/422/485)

PS2: 2 (1 x keyboard, 1 x mouse)
Internal Connector

USB: 6 (2 x USB 3.0, 4 x USB 2.0)

LVDS/inverter: 1/1

VGA: 1 (shared with rear I/O VGA COM)

Serial: 2 (RS-232)

SATA: 2 x SATA2 (3.0Gb/s)

mPCIe: 1

Parallel: 1

mSATA: 1 (shared)

GPIO 8-bit: 4 x GPI + 4 x GPO

SATA PWR output con: 1

Speaker header: 1
Watchdog Timer

Output: from super I/O to drag RESETCON#

Interval: 256 segments, 0,1,2…255sec/min
Power Requirements

Input PWR: 12~24V DC-in (4-pin ATX PWR Con)

Power on: AT/ATX supported

AT: directly PWR on as power input ready

ATX: press button to PWR on after power input ready
Environment

Temperature: 0ºC~60ºC
OS Support Lists

Windows 7/ Windows 8
Certifications

CE/FCC
Weight Information

1Kg
Warranty

2 year global warranty

After-sales service

Own Brand, Own Factory Production: High-quality assurance and global fast shipping.
Ships Fast: Orders are processed and shipped within 2 business days.
2-Year Global Warranty: Limited hardware warranty from the shipment date.
30-Day Return Policy: Satisfaction guarantee window (terms apply).
Free Shipping: Complimentary shipping on eligible global orders.
Direct Support: For any usage issues after purchase, please feel free to contact us anytime.

NEXCOM Return & Warranty Policy

1. Return Window (30 Days)

Customers may request a return or exchange within 30 days. The period is calculated from the shipment date (as shown on the invoice) to the date the return request is formally submitted.

* Please note: A "Return" (for refund) is distinct from our "2-Year Hardware Warranty" (for repair).

2. 2-Year Limited Warranty

3. Return Conditions

Items must be in original, unused condition with all original packaging, manuals, and accessories.
Customized Orders: IPCs with specific custom configurations (e.g., custom RAM/SSD/OS) are Non-Returnable unless a hardware defect is confirmed.
Electronic components must be returned in their original anti-static packaging.

4. Shipping & Destination

All returns must be shipped back to our headquarters in Taiwan:

Return Address:
NEXCOM International Co., Ltd.
9F, No.920, Zhongzheng Rd., Zhonghe Dist.,
New Taipei City, Taiwan 235015

Scenario	Cost Responsibility
Defective Items (DOA)	Seller covers return shipping.
Non-Defective Returns	Buyer covers shipping and duties. Restocking fees will be quoted based on actual inspection of the returned unit.

5. RMA Procedure

To initiate a return, please email us at ecommerce@nexcom.com.tw to obtain an RMA number.

* Shipments without an RMA number clearly marked on the outer box will be refused and returned at the sender's expense.

Contact Us: ecommerce@nexcom.com.tw
NEXCOM International Co., Ltd. | Industrial Computing Solutions

Download

NexCOBOT NEX 650-ADU Datasheet
Contact Us
- NEXCOM AIoT Mart Customer Service Email: ecommerce@nexcom.com.tw
Online Shopping

Access NEXCOM Industrial Solutions on Our Official Online Channels:

NexCOBOT NEX 650-ADU Industrial PC

Advanced Embedded Solution for Industrial Applications

The NexCOBOT NEX 650-ADU is a high-performance Mini-ITX embedded board powered by the Intel® Celeron® J1900 quad-core processor. Designed for flexibility and reliability, it supports up to 8GB of DDR3 memory, features rich I/O options, and integrates 24/48-bit LVDS for superior display output. With its compact form factor and wide voltage range (12-24V DC-in), this board is perfect for industrial computing, multimedia applications, and custom system integration in fanless or rack-mounted environments.

Core Features

Compact Mini-ITX Design:
Space-saving form factor for versatile integration.
Efficient Performance:
Powered by Intel® Celeron® J1900 quad-core processor.
Enhanced Graphics:
Supports 24/48-bit LVDS for high-quality display output.
Flexible Power Input:
Operates on a wide 12-24V DC voltage range.
Customizable:
Suitable for fanless or rack-mounted system designs.
Rich Connectivity:
Offers diverse I/O options, including dual LAN and multiple USB ports.
Reliable for Industrial Use:
Built for multimedia and high-computing applications.

Applications

Industrial Automation:
Reliable control for production lines.
Digital Signage:
Smooth content delivery in retail and public spaces.
IoT Gateways:
Smart edge computing for connected devices.
Medical Devices:
Stable performance for critical systems.
Surveillance:
High-definition monitoring solutions.
Compact Servers:
Fanless or rack-mounted data systems.
Multimedia:
Robust graphics for AV applications.

Compact Powerhouse for Versatile Applications

The NexCOBOT NEX 650-ADU, NEXCOM's flagship Mini-ITX board, features a 4-core Intel® Celeron® J1900 processor (Bay Trail) with support for up to 8GB DDR3/L memory and 24/48-bit LVDS display. Designed for high-performance multimedia and computing tasks, it seamlessly integrates into fanless or 1U/2U rack-mounted chassis as a system-ready PBOX solution, offering a flexible 12–24V DC power input for diverse industrial and embedded applications.
