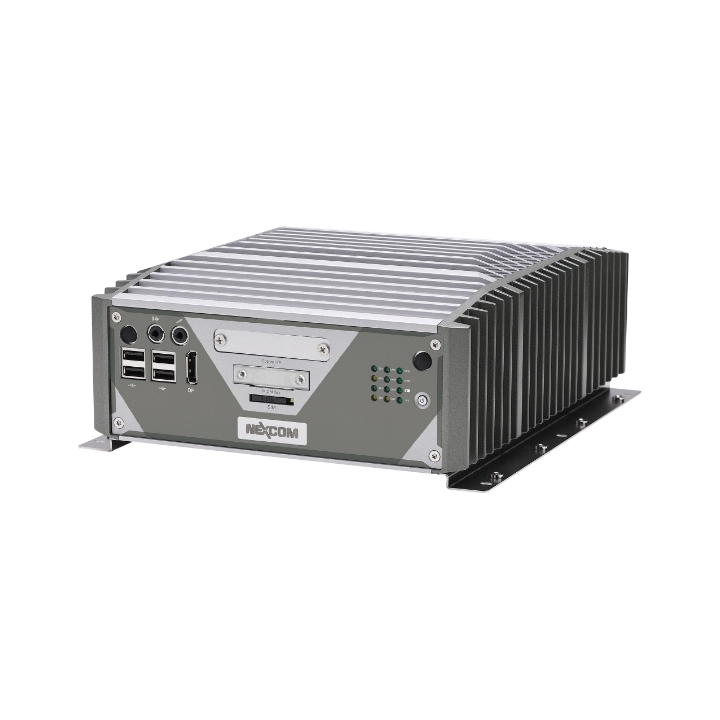

NexAIoT Fanless Embedded Computer | NISE3900E

NexAIoT Fanless Embedded Computer | NISE3900E

9th/8th Generation Intel® Core™ i7 LGA Fanless System with Expansion

Merchandise number：A0J00390000X0

Discounted price:US$
Sale US$
MSRP US$
Use bonus pointspt.

Description：

Intel Core Power:
Unlock seamless performance with 8th/9th generation Intel® Core™ processors, optimized for multitasking and heavy workloads.
Dual-Channel DDR4 Memory:
Achieve fast data access with up to 64GB of high-speed DDR4 memory for enhanced system performance.
Triple Display Flexibility:
Connect up to three displays simultaneously through HDMI, DisplayPort, and DVI-D for versatile and high-quality visualization.
Robust Networking:
Ensure reliable and high-speed connectivity with 3 x Intel® GbE LAN ports, supporting WoL, teaming, and PXE.
Extensive I/O:
Maximize connectivity with 6 x USB 3.1, 4 x USB 2.0, 4 x COM ports, and more for a variety of industrial applications.
Expandability:
Operate in diverse environments with input support ranging from +9V to 30V DC, ensuring reliability in various power settings.
Wide Voltage Input:
Leverage the onboard M.2 Key B/E slot for high-speed storage and wireless connectivity options.
Rugged Design:
Built to withstand tough industrial conditions with a fanless aluminum chassis and shock and vibration resistance.

Download file

Spec.

CPU Support
- Support 8th & 9th generation Intel® Core™ i7 LGA socket type embedded processor
  - Intel® Core™ i7-9700TE, 8 Core, 1.8GHz, 12M Cache
- Turbo-boost disabled by default
Main Memory
- 2 x DDR4 2400/2666 SO-DIMM socket, support up to 64GB
Display Option
- Three independent display
  - HDMI+DP+ DVI-D
- Dual independent display
  - HDMI+DP
  - HDMI+DVI-D
  - DP + DVI-D
Front I/O Interface Status LEDs
- 3 x LAN active LEDs
- 2 x GPO status/COM1/2 TX/RX LEDs
- 1 x HDD access LEDs
- 1 x Battery low
- 1 x M.2

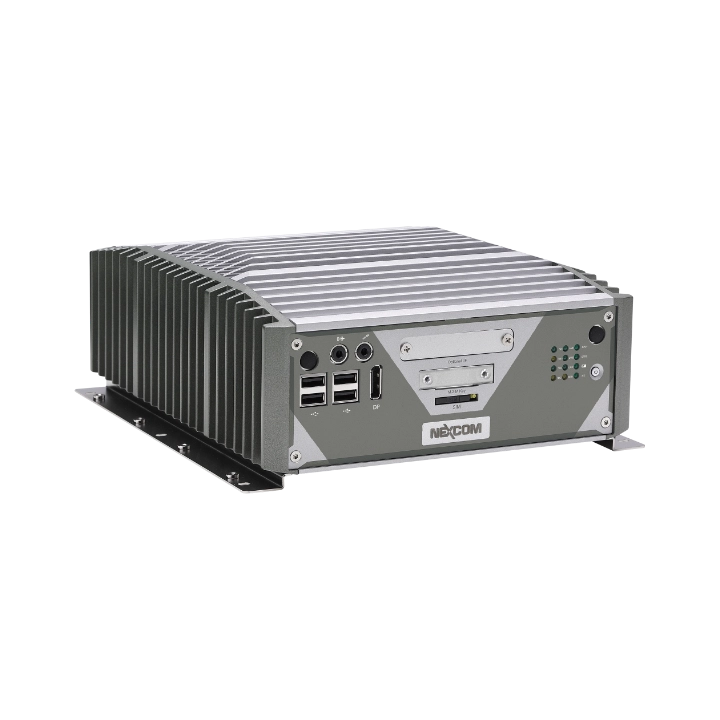

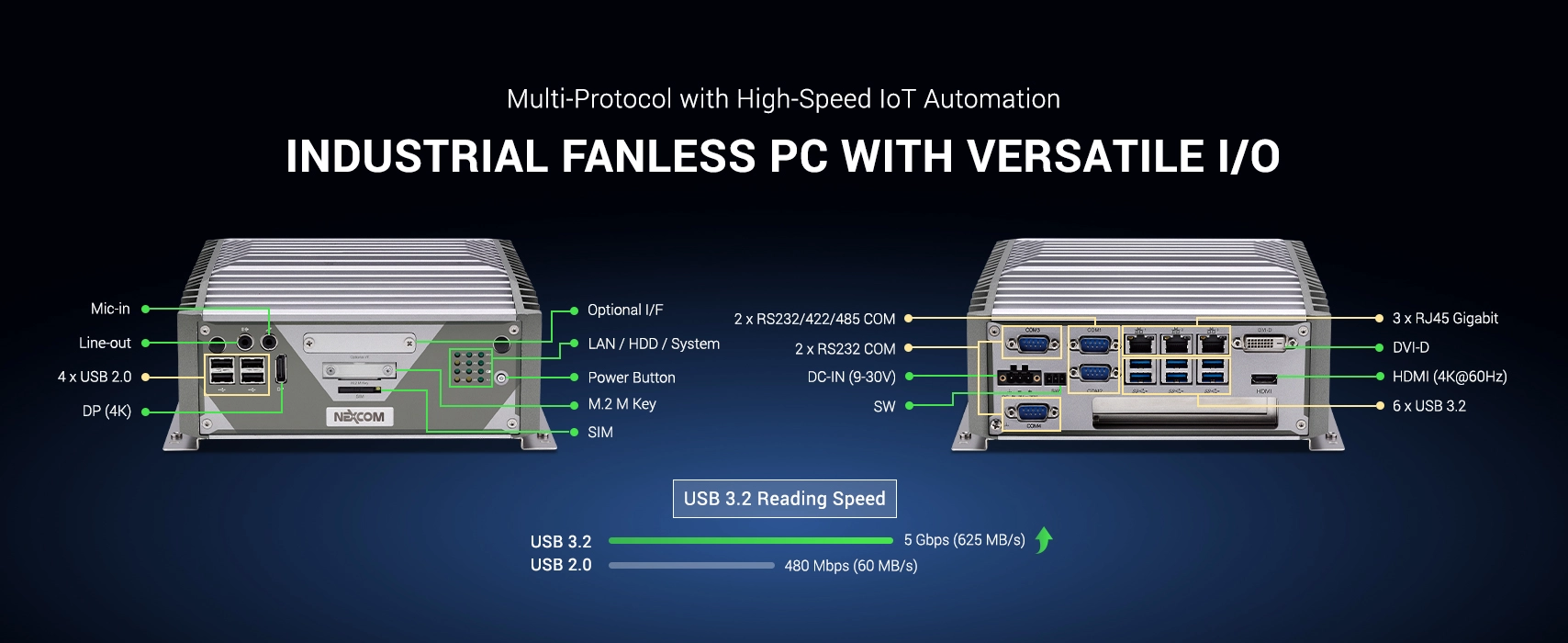

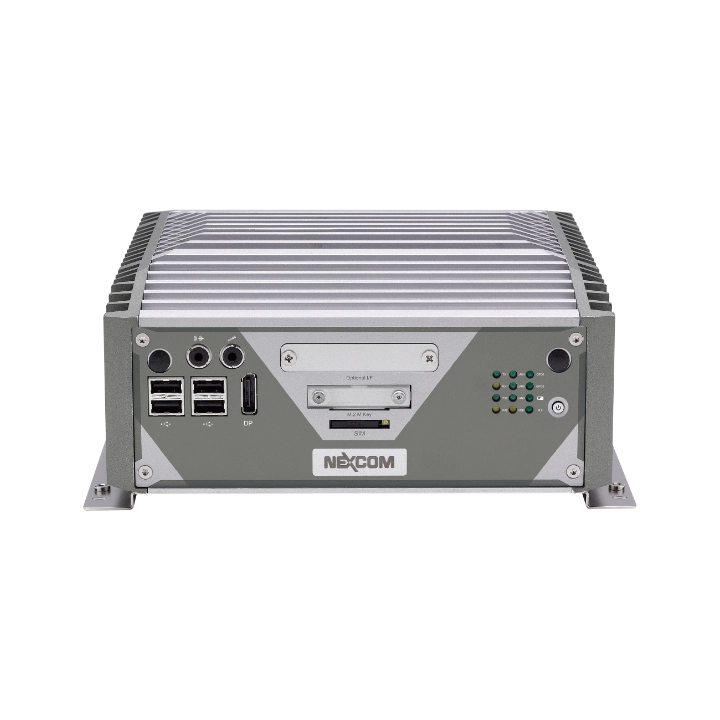

Front I/O Interface
- 1 x ATX power on/off switch
- 1 x DP
- 1 x Line-out and 1 x Mic-in
- 2 x Antenna holes
- 1 x External M.2 socket (Key M)
- 1 x SIM card holder
- 4 x USB 2.0 ports (500mA per each)

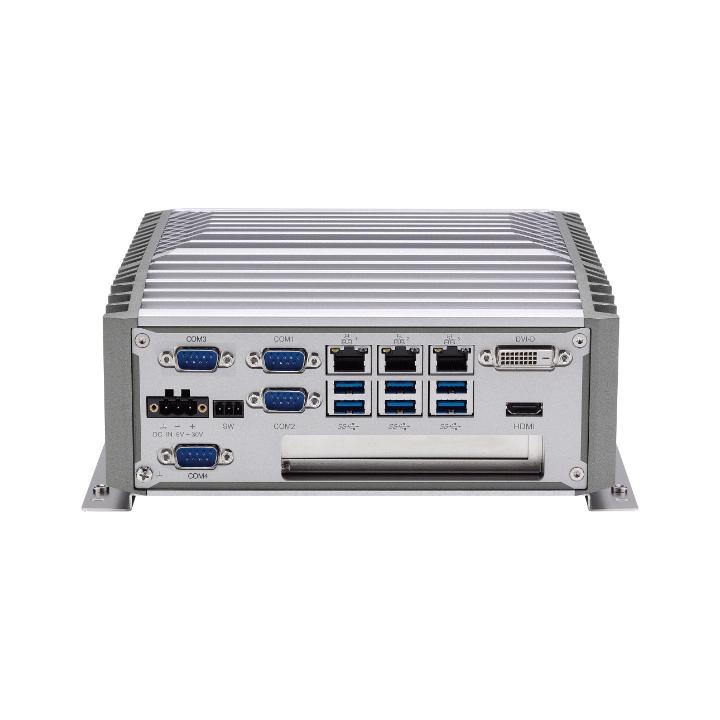

Rear I/O Interface
- 4 x DB9 for COM1 to COM4
  - COM1/2: RS232/422/485 auto flow control
  - COM3/4: RS232
- 6 x USB 3.1 ports (900mA per each)
- 1 x DVI-D port
- 1 x HDMI port
- 2 x Intel® I210-IT GbE LAN ports; support WoL, teaming and PXE
- 1 x Intel® I219-LM GbE LAN port
- 1 x 3-pin remote power on/off switch
- +9V to 30V DC input
Internal I/O
- 8CH GPIO: internal pin header, supports 4 x GPO and 4 x GPI, TTL 5V level
- Onboard TPM2.0 (SLB9665) for data encryption purposes
- 1 x Internal M.2 (Key B), supports optional LTE
Storage Device
- 1 x External M.2 socket (M-key SATA 3.0, PCIe x4)
- 1 x 2.5" HDD or SSD (SATA 3.0) driver bay
Expansion Slot
- One PCIe x4 expansion slot
  - Add-on card length: 169mm max.
  - Power consumption: 10W/slot max.
- 1 x Internal mini-PCIe socket support optional Wi-Fi/3.5G/4G LTE
Power Requirements
- AT/ATX power mode (default: ATX power mode)
- Power input: +9 to +30V DC
- Power adapter: optional AC to DC power adapter (24V DC, 120W)
Dimensions
- 215 mm(W) x 272mm (D) x 94mm (H) without wall mount bracket (8.5" x 10.7" x 3.7")
Construction
- Aluminum and metal chassis with fanless design
Environment
- Operating temperature: Ambient with air flow: -5°C to 55°
  (according to IEC60068-2-1, IEC60068-2-2, IEC60068-2-14)
- Storage temperature: -20°C to 80°C
- Relative humidity: 10% to 95% (non-condensing)
- Shock protection:
  - HDD: 20G, half sine, 11ms, IEC60068-2-27
  - M.2: 50G, half sine, 11ms, IEC60068-2-27
- Vibration protection with HDD condition:
  - Random: 0.5Grms @ 5~500 Hz, IEC60068-2-64
  - Sinusoidal: 0.5Grms @ 5~500 Hz, IEC60068-2-6
- Vibration protection with SSD & M.2 condition:
  - Random: 2Grms @ 5~500 Hz, IEC60068-2-64.
  - Sinusoidal: 2Grms @ 5~500 Hz, IEC60068-2-6
Certifications
- CE approval- EN61000-6-2- EN61000-6-4
- FCC Class A
- UKCA
OS Support Lists
- Windows 10 64-bit
- Linux Kernel 4.9
Weight Information
- Gross weight: 6.54kg
- Net weight: 5kg

Own Brand, Own Factory Production: High-quality assurance and global fast shipping.
Ships Fast: Orders are processed and shipped within 2 business days.
2-Year Global Warranty: Limited hardware warranty from the shipment date.
30-Day Return Policy: Satisfaction guarantee window (terms apply).
Free Shipping: Complimentary shipping on eligible global orders.
Direct Support: For any usage issues after purchase, please feel free to contact us anytime.

NEXCOM Return & Warranty Policy

1. Return Window (30 Days)

Customers may request a return or exchange within 30 days. The period is calculated from the shipment date (as shown on the invoice) to the date the return request is formally submitted.

* Please note: A "Return" (for refund) is distinct from our "2-Year Hardware Warranty" (for repair).

2. 2-Year Limited Warranty

We provide a 2-year warranty on all Industrial PC hardware, starting from the shipment date. This covers technical defects in materials and workmanship. During this period, NEXCOM offers repair or replacement services according to the RMA evaluation.

3. Return Conditions

Items must be in original, unused condition with all original packaging, manuals, and accessories.
Customized Orders: IPCs with specific custom configurations (e.g., custom RAM/SSD/OS) are Non-Returnable unless a hardware defect is confirmed.
Electronic components must be returned in their original anti-static packaging.

4. Shipping & Destination

All returns must be shipped back to our headquarters in Taiwan:

Return Address:
NEXCOM International Co., Ltd.
9F, No.920, Zhongzheng Rd., Zhonghe Dist.,
New Taipei City, Taiwan 235015

Scenario	Cost Responsibility
Defective Items (DOA)	Seller covers return shipping.
Non-Defective Returns	Buyer covers shipping and duties. Restocking fees will be quoted based on actual inspection of the returned unit.

5. RMA Procedure

To initiate a return, please email us at ecommerce@nexcom.com.tw to obtain an RMA number.

* Shipments without an RMA number clearly marked on the outer box will be refused and returned at the sender's expense.

Contact Us: ecommerce@nexcom.com.tw
NEXCOM International Co., Ltd. | Industrial Computing Solutions

NEXCOM NISE-3900E-Datasheet
- NEXCOM AIoT Mart Customer Service Email: ecommerce@nexcom.com.tw
Access NEXCOM Industrial Solutions on Our Official Online Channels:

Specifications
CPU Support

Support 8th & 9th generation Intel® Core™ i7 LGA socket type embedded processor
- Intel® Core™ i7-9700TE, 8 Core, 1.8GHz, 12M Cache

Turbo-boost disabled by default
Main Memory

2 x DDR4 2400/2666 SO-DIMM socket, support up to 64GB
Display Option

Three independent display
- HDMI+DP+ DVI-D

Dual independent display
- HDMI+DP
- HDMI+DVI-D
- DP + DVI-D
Front I/O Interface Status LEDs

3 x LAN active LEDs

2 x GPO status/COM1/2 TX/RX LEDs

1 x HDD access LEDs

1 x Battery low

1 x M.2
Front I/O Interface

1 x ATX power on/off switch

1 x DP

1 x Line-out and 1 x Mic-in

2 x Antenna holes

1 x External M.2 socket (Key M)

1 x SIM card holder

4 x USB 2.0 ports (500mA per each)
Rear I/O Interface

4 x DB9 for COM1 to COM4
- COM1/2: RS232/422/485 auto flow control
- COM3/4: RS232

6 x USB 3.1 ports (900mA per each)

1 x DVI-D port

1 x HDMI port

2 x Intel® I210-IT GbE LAN ports; support WoL, teaming and PXE

1 x Intel® I219-LM GbE LAN port

1 x 3-pin remote power on/off switch

+9V to 30V DC input
Internal I/O

8CH GPIO: internal pin header, supports 4 x GPO and 4 x GPI, TTL 5V level

Onboard TPM2.0 (SLB9665) for data encryption purposes

1 x Internal M.2 (Key B), supports optional LTE
Storage Device

1 x External M.2 socket (M-key SATA 3.0, PCIe x4)

1 x 2.5" HDD or SSD (SATA 3.0) driver bay
Expansion Slot

One PCIe x4 expansion slot
- Add-on card length: 169mm max.
- Power consumption: 10W/slot max.

1 x Internal mini-PCIe socket support optional Wi-Fi/3.5G/4G LTE
Power Requirements

AT/ATX power mode (default: ATX power mode)

Power input: +9 to +30V DC

Power adapter: optional AC to DC power adapter (24V DC, 120W)
Dimensions

215 mm(W) x 272mm (D) x 94mm (H) without wall mount bracket (8.5" x 10.7" x 3.7")
Construction

Aluminum and metal chassis with fanless design
Environment

Operating temperature: Ambient with air flow: -5°C to 55°
(according to IEC60068-2-1, IEC60068-2-2, IEC60068-2-14)

Storage temperature: -20°C to 80°C

Relative humidity: 10% to 95% (non-condensing)

Shock protection:
- HDD: 20G, half sine, 11ms, IEC60068-2-27
- M.2: 50G, half sine, 11ms, IEC60068-2-27

Vibration protection with HDD condition:
- Random: 0.5Grms @ 5~500 Hz, IEC60068-2-64
- Sinusoidal: 0.5Grms @ 5~500 Hz, IEC60068-2-6

Vibration protection with SSD & M.2 condition:
- Random: 2Grms @ 5~500 Hz, IEC60068-2-64.
- Sinusoidal: 2Grms @ 5~500 Hz, IEC60068-2-6
Certifications

CE approval- EN61000-6-2- EN61000-6-4

FCC Class A

UKCA
OS Support Lists

Windows 10 64-bit

Linux Kernel 4.9
Weight Information

Gross weight: 6.54kg

Net weight: 5kg

After-sales service

Own Brand, Own Factory Production: High-quality assurance and global fast shipping.
Ships Fast: Orders are processed and shipped within 2 business days.
2-Year Global Warranty: Limited hardware warranty from the shipment date.
30-Day Return Policy: Satisfaction guarantee window (terms apply).
Free Shipping: Complimentary shipping on eligible global orders.
Direct Support: For any usage issues after purchase, please feel free to contact us anytime.

NEXCOM Return & Warranty Policy

1. Return Window (30 Days)

Customers may request a return or exchange within 30 days. The period is calculated from the shipment date (as shown on the invoice) to the date the return request is formally submitted.

* Please note: A "Return" (for refund) is distinct from our "2-Year Hardware Warranty" (for repair).

2. 2-Year Limited Warranty

3. Return Conditions

Items must be in original, unused condition with all original packaging, manuals, and accessories.
Customized Orders: IPCs with specific custom configurations (e.g., custom RAM/SSD/OS) are Non-Returnable unless a hardware defect is confirmed.
Electronic components must be returned in their original anti-static packaging.

4. Shipping & Destination

All returns must be shipped back to our headquarters in Taiwan:

Return Address:
NEXCOM International Co., Ltd.
9F, No.920, Zhongzheng Rd., Zhonghe Dist.,
New Taipei City, Taiwan 235015

Scenario	Cost Responsibility
Defective Items (DOA)	Seller covers return shipping.
Non-Defective Returns	Buyer covers shipping and duties. Restocking fees will be quoted based on actual inspection of the returned unit.

5. RMA Procedure

To initiate a return, please email us at ecommerce@nexcom.com.tw to obtain an RMA number.

* Shipments without an RMA number clearly marked on the outer box will be refused and returned at the sender's expense.

Contact Us: ecommerce@nexcom.com.tw
NEXCOM International Co., Ltd. | Industrial Computing Solutions

Download

NEXCOM NISE-3900E-Datasheet
Contact Us
- NEXCOM AIoT Mart Customer Service Email: ecommerce@nexcom.com.tw
Online Shopping

Access NEXCOM Industrial Solutions on Our Official Online Channels:

NEXCOM NISE 3900E Industrial PC

Power, Performance, and Versatility in One Compact Solution

The NISE 3900E is a high-performance fanless industrial computer, engineered to handle demanding applications with 8th/9th Gen Intel® Core™ processors. Designed for reliable 24/7 operation, it features triple independent display support, multiple high-speed I/O ports, and versatile expansion options. With its rugged fanless design, wide voltage input (9V–30V DC), and industrial-grade durability, the NISE 3900E is the ultimate solution for edge computing, automation, and high-speed data processing in mission-critical environments.

Key Features

High-Performance Processing –
Powered by 8th/9th Gen Intel® Core™ i7 LGA socket processors for demanding industrial applications.
Triple Independent Display Support –
HDMI, DP, and DVI-D outputs for multi-screen visualization and monitoring.

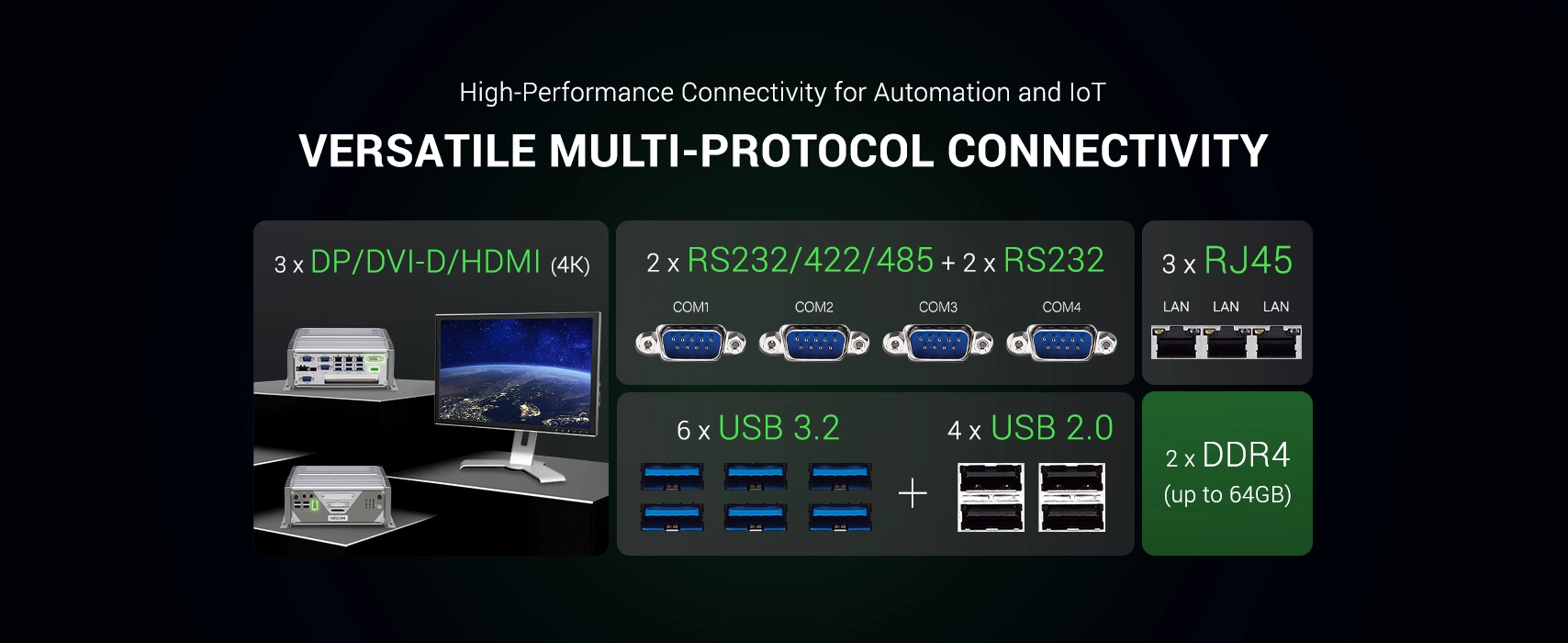

Industrial-Grade Connectivity –
3 x Intel® GbE LAN, 6 x USB 3.1, 4 x COM ports for seamless device integration.
Flexible Expansion Options –
Supports PCIe x4, M.2, and mini-PCIe for additional functionality and wireless connectivity.

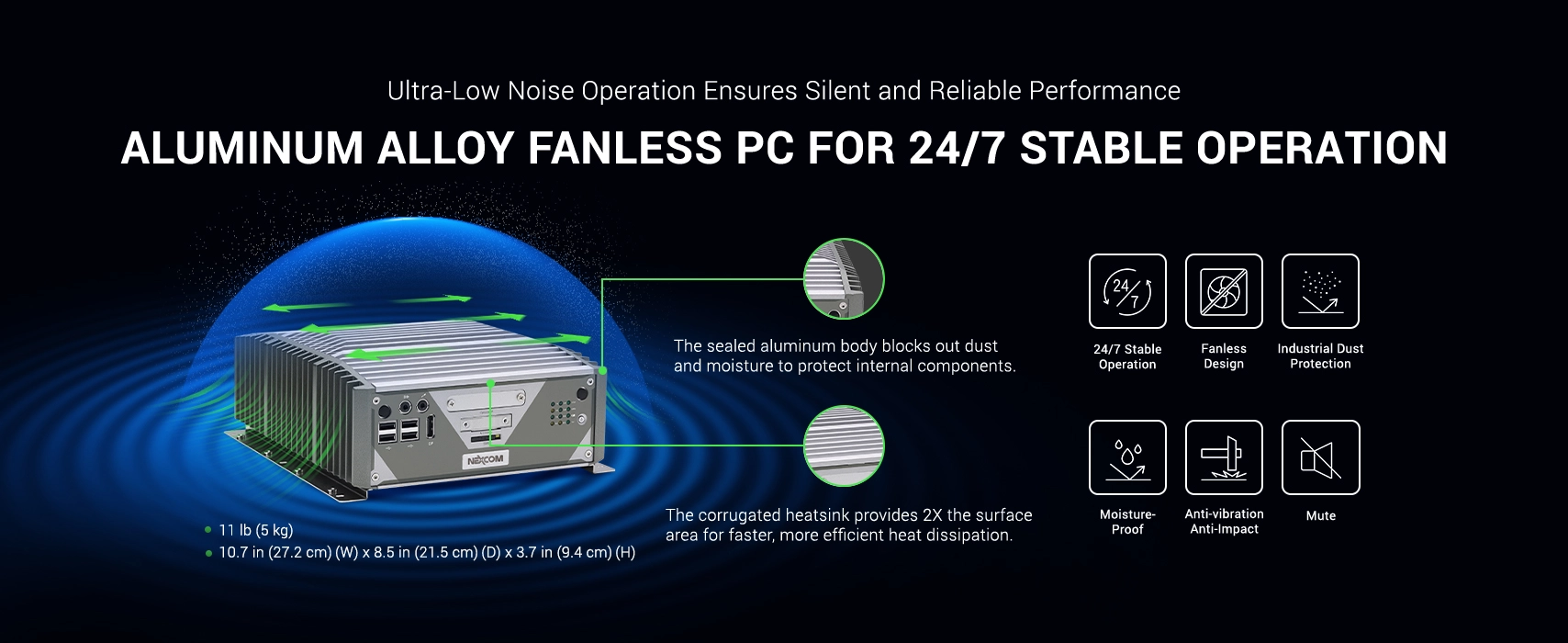

Rugged & Reliable Design –
Fanless aluminum chassis, wide voltage input (9V–30V DC), and industrial-grade shock & vibration resistance for harsh environments.

Benefits

Enhanced Performance & Efficiency –
Handles high-computing tasks with 8th/9th Gen Intel® Core™ processors, ensuring smooth operation in industrial environments.
Seamless Multi-Display Support –
Triple independent displays (HDMI, DP, DVI-D) enable real-time monitoring and data visualization.
Reliable Industrial Connectivity –
Three Intel® GbE LAN ports, multiple USB and COM ports provide seamless integration with industrial devices and networks.
Future-Proof Expandability –
Supports PCIe x4, M.2, and mini-PCIe for additional storage, GPU acceleration, or wireless connectivity.
Durable & Low-Maintenance –
Fanless aluminum chassis, wide voltage input (9V–30V DC), and industrial-grade ruggedness ensure long-lasting operation with minimal upkeep.

Unstoppable Power, Unlimited Possibilities

Built for high-performance industrial computing, the NISE 3900E is engineered to handle demanding workloads with ease. Powered by 8th/9th Gen Intel® Core™ processors, this fanless, rugged system delivers seamless multi-display support, ultra-fast connectivity, and flexible expansion options. With triple independent display outputs, three Intel® GbE LAN ports, and versatile I/O, it ensures unmatched efficiency for automation, AI, and edge computing. Designed to thrive in harsh environments, the wide voltage input (9V–30V DC), fanless architecture, and industrial-grade durability make it the ultimate choice for mission-critical applications. Power up your operations with the NISE 3900E!
