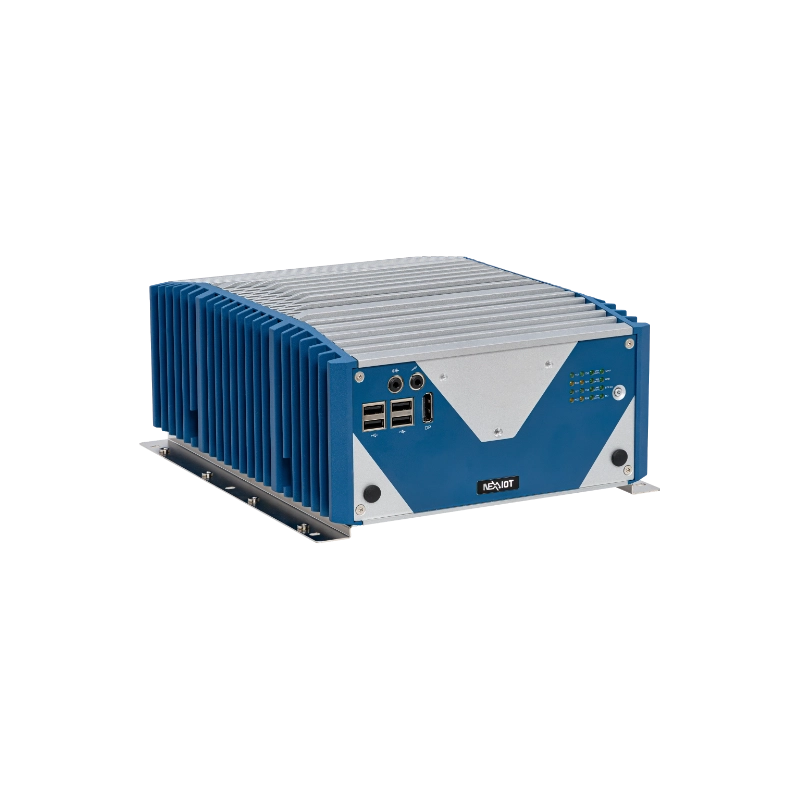

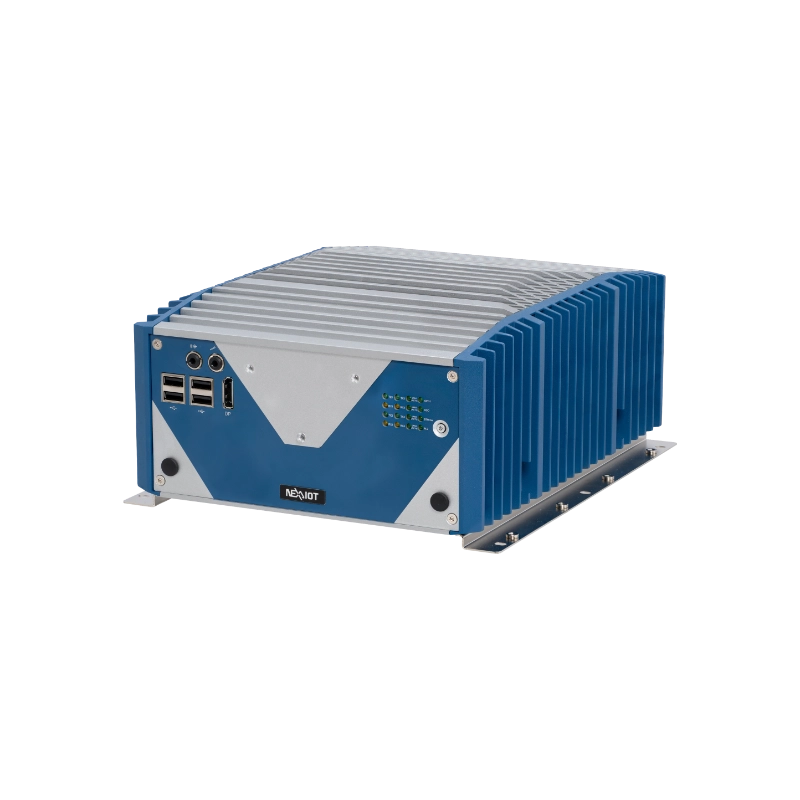

NexAIoT Fanless Embedded Computer | NISE3910P2E

NexAIoT Fanless Embedded Computer | NISE3910P2E

12th Generation Intel® Core™ i5 Industrial Automation Fanless System

Merchandise number：10J00391004X0

Discounted price:US$
Sale US$
MSRP US$
Use bonus pointspt.

Description：

Support 12th Gen Intel® Core™ i5 LGA1700 socket type embedded processor
Intel® Q670E PCH
Support 2 x DDR5 SO-DIMM, up to 64GB
4 x Intel® i226-IT LAN port, supports WoL, teaming, and PXE
1 x DP, 1 x HDMI®, and 1 x VGA with independent display
1 x M.2 3042/3052 Key B support LTE/5G module
1 x Outside accessible M.2 2242 Key M with PCIe x4,
supports NVMe
6 x USB 3.2 Gen 1, 4 x USB 2.0
2 x Isolated RS-232/422/485 with auto-flow and 1 x RS-232
1 x Mini PCIe slot, supports optional Wi-Fi, 3.5G, 4G LTE
1 x 2.5” SATA HDD/SSD
(additional 1 x 2.5” SATA upon request)
TPM 2.0 default onboardundefined

Download file

Spec.

CPU
- Intel® Core™ i5-12500TE
Main Memory
- DDR5 4800 SO-DIMM INNODISK 8GB
Display Option
- Three independent display: HDMI®, DP, VGA
Audio
- HD Audio Codec, Realtek ALC897

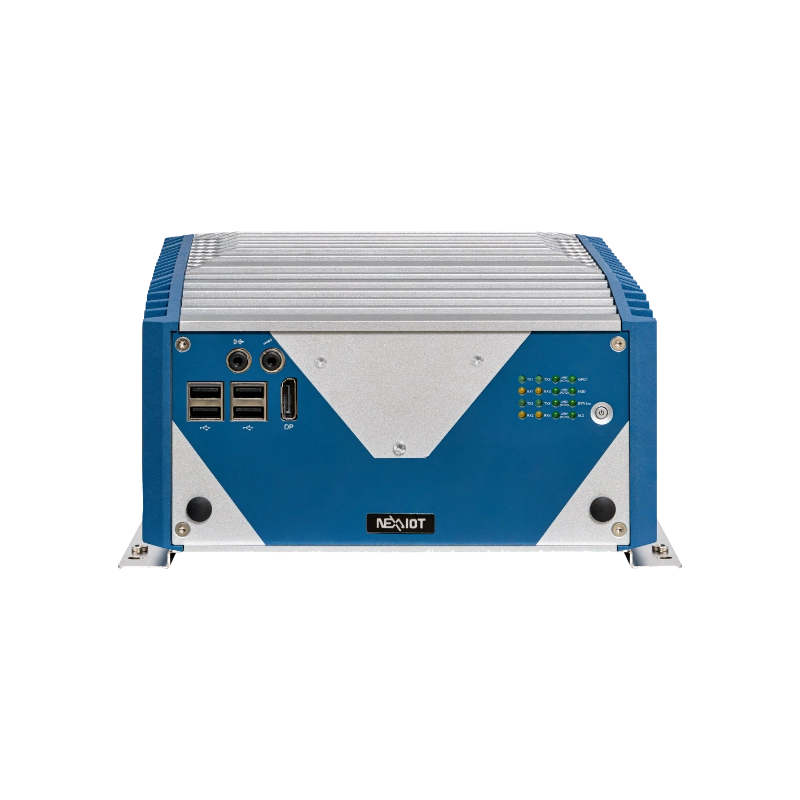

I/O Interface-Front
- 1 x ATX power on/off switch
- LED indicators:
  - 4 x LAN active
  - 1 x GPO status
  - 4 x COM Tx/Rx
  - 1 x HDD/SSD status
  - 1 x Battery low
  - M.2
- 1 x DP
- 2 x Antenna hole
- 1 x Outside accessible M.2 2242 Key M (PCIe x4, SATA)
- 1 x SIM card holder
- 4 x USB 2.0 Type A (500mA/port)
- 1 x Line out and 1 x Mic in

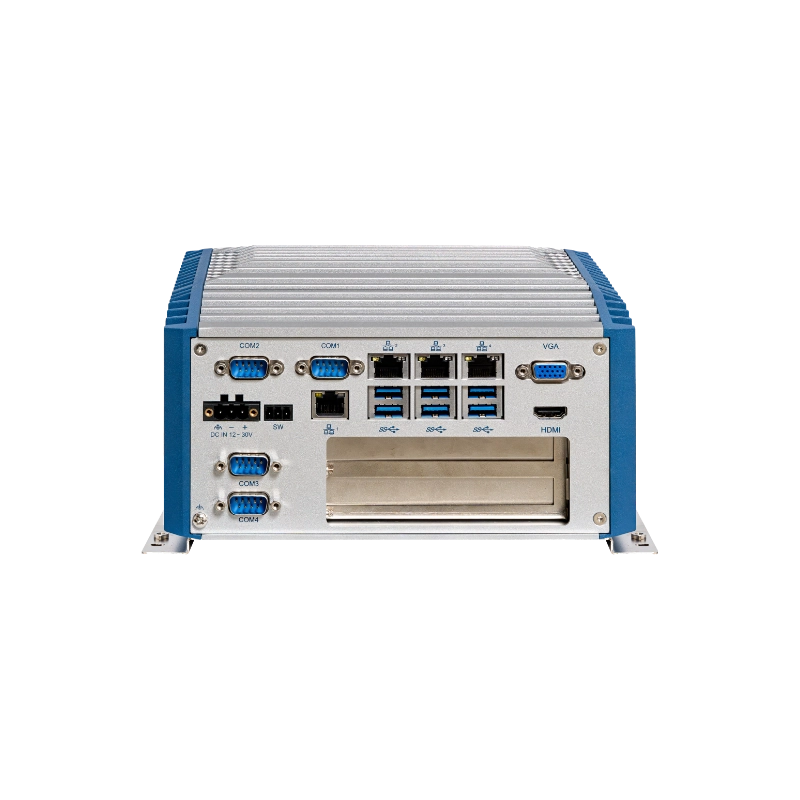

I/O Interface-Rear
- 1 x HDMI®
- 1 x VGA port
- 6 x USB 3.2 Gen1 Type-A (900mA per each)
- 4 x 2.5GbE RJ45 port, Intel® I226-IT, supports WoL, teaming & PXE
- 2 x Isolated RS-232/422/485
- 1 x RS-232
- 1 x 3-pin DC input, supports +12 to 30V DC input
- 1 x 3-pin remote power on/off switch
I/O Interface-Internal
- 8 x GPI and 8 x GPO (5V, TTL type)
- 1 x M.2 Key B 2242/3042/3052 (PCIe x2, SATA, USB 3.0)
- 1 x Mini PCIe (PCIe x1, USB 3.0)
Storage Device
- M.2 2242 SATAIII B+M Key ADATA 512G 3D TLC
Expansion Slot
- 1 x PCIe x16 (NISE 3910E16-A), up to 75W, 240mm Max. length
- 2 x PCIe x4 (NISE 3910E2-A), up to 10W/slot, 169mm & 240mm Max.length
- 2 x PCI (NISE 3910P2-A), up to 10W/slot, 169mm & 240mm Max.length
- 1 x PCIe x4 + 1 x PCI (NISE 3910P2E-A), up to 10W/slot, 169mm & 240mm Max. Length
- 1 x Mini PCIe (PCIe x1, USB 3.0)
Power Requirements
- AT/ATX power mode (Default ATX mode)
- Power input: +12~30 V DC
Dimensions
- 215mm (W) x 272mm (D) x 123mm (H) without wall-mount bracket
  (8.46” x 10.7” x 4.8”)
Construction
- Aluminum and metal chassis with fanless design
Environment
- Operating temperature: Ambient with air flow: -20°C~60°C
  (according to IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-14)
- Storage temperature: -20°C~80°C
- Relative humidity: 10%~95% (non-condensing)
- Shock protection:
  - HDD: 20G@wallmount, half sine, 11ms (operation), IEC 600682-27
  - SSD: 50G@wallmount, half sine, 11ms (operation), IEC 600682-27
- Vibration protection:
  - Random: 0.5Grms@5~500Hz, IEC 60068-2-64
  - Sinusoidal: 0.5Grms@5~500Hz, IEC 60068-2-6
Certifications
- CE
- FCC Class A
OS Support Lists
- Win11 IoT Enterprise 2024 LTSC MultiLang ESD Value

Own Brand, Own Factory Production: High-quality assurance and global fast shipping.
Ships Fast: Orders are processed and shipped within 2 business days.
2-Year Global Warranty: Limited hardware warranty from the shipment date.
30-Day Return Policy: Satisfaction guarantee window (terms apply).
Free Shipping: Complimentary shipping on eligible global orders.
Direct Support: For any usage issues after purchase, please feel free to contact us anytime.

NEXCOM Return & Warranty Policy

1. Return Window (30 Days)

Customers may request a return or exchange within 30 days. The period is calculated from the shipment date (as shown on the invoice) to the date the return request is formally submitted.

* Please note: A "Return" (for refund) is distinct from our "2-Year Hardware Warranty" (for repair).

2. 2-Year Limited Warranty

We provide a 2-year warranty on all Industrial PC hardware, starting from the shipment date. This covers technical defects in materials and workmanship. During this period, NEXCOM offers repair or replacement services according to the RMA evaluation.

3. Return Conditions

Items must be in original, unused condition with all original packaging, manuals, and accessories.
Customized Orders: IPCs with specific custom configurations (e.g., custom RAM/SSD/OS) are Non-Returnable unless a hardware defect is confirmed.
Electronic components must be returned in their original anti-static packaging.

4. Shipping & Destination

All returns must be shipped back to our headquarters in Taiwan:

Return Address:
NEXCOM International Co., Ltd.
9F, No.920, Zhongzheng Rd., Zhonghe Dist.,
New Taipei City, Taiwan 235015

Scenario	Cost Responsibility
Defective Items (DOA)	Seller covers return shipping.
Non-Defective Returns	Buyer covers shipping and duties. Restocking fees will be quoted based on actual inspection of the returned unit.

5. RMA Procedure

To initiate a return, please email us at ecommerce@nexcom.com.tw to obtain an RMA number.

* Shipments without an RMA number clearly marked on the outer box will be refused and returned at the sender's expense.

Contact Us: ecommerce@nexcom.com.tw
NEXCOM International Co., Ltd. | Industrial Computing Solutions

NEXCOM NISE 3910P2E-Datasheet
- NEXCOM AIoT Mart Customer Service Email: ecommerce@nexcom.com.tw
Access NEXCOM Industrial Solutions on Our Official Online Channels:

Specifications
CPU

Intel® Core™ i5-12500TE
Main Memory

DDR5 4800 SO-DIMM INNODISK 8GB
Display Option

Three independent display: HDMI®, DP, VGA
Audio

HD Audio Codec, Realtek ALC897
I/O Interface-Front

1 x ATX power on/off switch

LED indicators:
- 4 x LAN active
- 1 x GPO status
- 4 x COM Tx/Rx
- 1 x HDD/SSD status
- 1 x Battery low
- M.2

1 x DP

2 x Antenna hole

1 x Outside accessible M.2 2242 Key M (PCIe x4, SATA)

1 x SIM card holder

4 x USB 2.0 Type A (500mA/port)

1 x Line out and 1 x Mic in
I/O Interface-Rear

1 x HDMI®

1 x VGA port

6 x USB 3.2 Gen1 Type-A (900mA per each)

4 x 2.5GbE RJ45 port, Intel® I226-IT, supports WoL, teaming & PXE

2 x Isolated RS-232/422/485

1 x RS-232

1 x 3-pin DC input, supports +12 to 30V DC input

1 x 3-pin remote power on/off switch
I/O Interface-Internal

8 x GPI and 8 x GPO (5V, TTL type)

1 x M.2 Key B 2242/3042/3052 (PCIe x2, SATA, USB 3.0)

1 x Mini PCIe (PCIe x1, USB 3.0)
Storage Device

M.2 2242 SATAIII B+M Key ADATA 512G 3D TLC
Expansion Slot

1 x PCIe x16 (NISE 3910E16-A), up to 75W, 240mm Max. length

2 x PCIe x4 (NISE 3910E2-A), up to 10W/slot, 169mm & 240mm Max.length

2 x PCI (NISE 3910P2-A), up to 10W/slot, 169mm & 240mm Max.length

1 x PCIe x4 + 1 x PCI (NISE 3910P2E-A), up to 10W/slot, 169mm & 240mm Max. Length

1 x Mini PCIe (PCIe x1, USB 3.0)
Power Requirements

AT/ATX power mode (Default ATX mode)

Power input: +12~30 V DC
Dimensions

215mm (W) x 272mm (D) x 123mm (H) without wall-mount bracket
(8.46” x 10.7” x 4.8”)
Construction

Aluminum and metal chassis with fanless design
Environment

Operating temperature: Ambient with air flow: -20°C~60°C
(according to IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-14)

Storage temperature: -20°C~80°C

Relative humidity: 10%~95% (non-condensing)

Shock protection:
- HDD: 20G@wallmount, half sine, 11ms (operation), IEC 600682-27
- SSD: 50G@wallmount, half sine, 11ms (operation), IEC 600682-27

Vibration protection:
- Random: 0.5Grms@5~500Hz, IEC 60068-2-64
- Sinusoidal: 0.5Grms@5~500Hz, IEC 60068-2-6
Certifications

CE

FCC Class A
OS Support Lists

Win11 IoT Enterprise 2024 LTSC MultiLang ESD Value

After-sales service

Own Brand, Own Factory Production: High-quality assurance and global fast shipping.
Ships Fast: Orders are processed and shipped within 2 business days.
2-Year Global Warranty: Limited hardware warranty from the shipment date.
30-Day Return Policy: Satisfaction guarantee window (terms apply).
Free Shipping: Complimentary shipping on eligible global orders.
Direct Support: For any usage issues after purchase, please feel free to contact us anytime.

NEXCOM Return & Warranty Policy

1. Return Window (30 Days)

Customers may request a return or exchange within 30 days. The period is calculated from the shipment date (as shown on the invoice) to the date the return request is formally submitted.

* Please note: A "Return" (for refund) is distinct from our "2-Year Hardware Warranty" (for repair).

2. 2-Year Limited Warranty

3. Return Conditions

Items must be in original, unused condition with all original packaging, manuals, and accessories.
Customized Orders: IPCs with specific custom configurations (e.g., custom RAM/SSD/OS) are Non-Returnable unless a hardware defect is confirmed.
Electronic components must be returned in their original anti-static packaging.

4. Shipping & Destination

All returns must be shipped back to our headquarters in Taiwan:

Return Address:
NEXCOM International Co., Ltd.
9F, No.920, Zhongzheng Rd., Zhonghe Dist.,
New Taipei City, Taiwan 235015

Scenario	Cost Responsibility
Defective Items (DOA)	Seller covers return shipping.
Non-Defective Returns	Buyer covers shipping and duties. Restocking fees will be quoted based on actual inspection of the returned unit.

5. RMA Procedure

To initiate a return, please email us at ecommerce@nexcom.com.tw to obtain an RMA number.

* Shipments without an RMA number clearly marked on the outer box will be refused and returned at the sender's expense.

Contact Us: ecommerce@nexcom.com.tw
NEXCOM International Co., Ltd. | Industrial Computing Solutions

Download

NEXCOM NISE 3910P2E-Datasheet
Contact Us
- NEXCOM AIoT Mart Customer Service Email: ecommerce@nexcom.com.tw
Online Shopping

Access NEXCOM Industrial Solutions on Our Official Online Channels:

NEXCOM NISE 3910P2E Industrial PC

Unstoppable Performance in a Fanless Frame

Integrated with12th Gen Intel® Core™ i5 processor, NISE 3910P2E is the fanless PC designed for industrial automation and edge computing which demand high CPU and graphics performance. NISE 3910P2E supports up to 64G DDR5 memory and have several options on storage devices like M.2, HDD or SSD. NISE 3910P2E supports wide range of DC input from +12V to 30V DC input, and can be operated in an extended operating temperature range between -20 to 60 Celsius degree. For extended module availability, NISE 3910P2E is also equipped with one internal mini-PCIe sockets to support IoT wireless connectivity applications (support optional Wi-Fi, 3.5G, 4G LTE modules), also 5G module via M.2 3052 Key B.

Fanless. Fearless. Industrial-Grade.

The NISE 3910P2E is a powerful, fanless industrial PC built to handle edge computing, factory automation, and harsh environments. Powered by a 12th Gen Intel® Core™ i5-12500TE processor and 8GB of DDR5 RAM, it delivers high-speed performance with ultra-low latency—perfect for real-time data processing and control applications.

Storage You Can Trust. OS That's Ready.

Pre-installed with a 512GB ADATA M.2 SSD and Windows 11 IoT Enterprise 2024 LTSC, this system is ready to deploy out of the box. The SSD ensures fast boot times and long-term reliability, while the LTSC OS provides a stable, secure, and maintenance-light environment for industrial use.

Designed to Endure. Built to Scale.

With wide voltage input support, legacy PCI + PCIe expandability, and rich I/O including 10 USB ports and 3 COM ports, the NISE 3910P2E adapts easily to custom applications. Whether you're running AI at the edge, monitoring machines, or managing logistics, this rugged system delivers nonstop performance in tough conditions.
