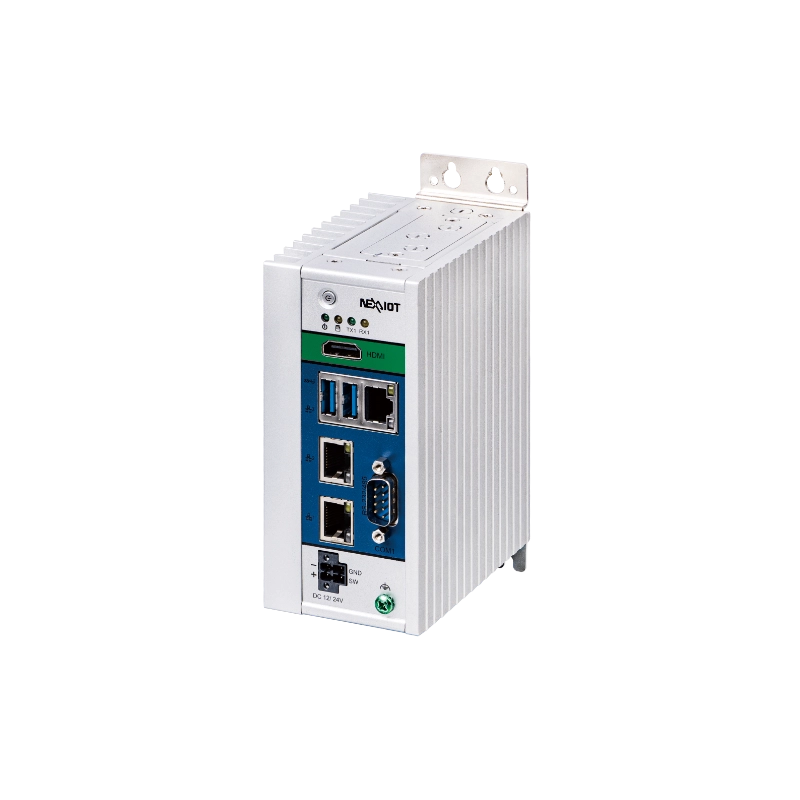

NexAIoT Fanless Embedded Computer | NIFE106-A01

NexAIoT Fanless Embedded Computer | NIFE106-A01

Intel® N97, 4C4T, ADL HDMI, 1COM, 3LAN Ultra Compact

Merchandise number：10J70010600XE

Discounted price:US$
Sale US$
MSRP US$
Use bonus pointspt.

Description：

Onboard Intel® Processor N97 Quad Core, 2.0GHz
1 x HDMI Display
3 x Intel® I226-IT 2.5GbE LAN port; supports WoL, Teaming and PXE
2 x USB 3.2 Gen2
1 x RS232/485 with auto flow control (TX, RX, CTX, RTX), supports 2.5KV isolation protection
Onboard TPM 2.0
Support -10°C~60°C operating temperature
Support typical +12/24VDC ±20%

Download file

Spec.

CPU Support
- Onboard Intel® Processor N97 quad core
Main Memory
- Onboard LPDDR5-4800 SDRAM,
  default 8GB (optional by DBOM up to 16 GB), with In-band ECC
Display Option
- 1 x HDMI port, resolution up to 3840 x 2160@30Hz
Status LEDs
- 4 x LED status indicator for power, battery, Tx, Rx
Storage Device
- Onboard eMMC 64GB

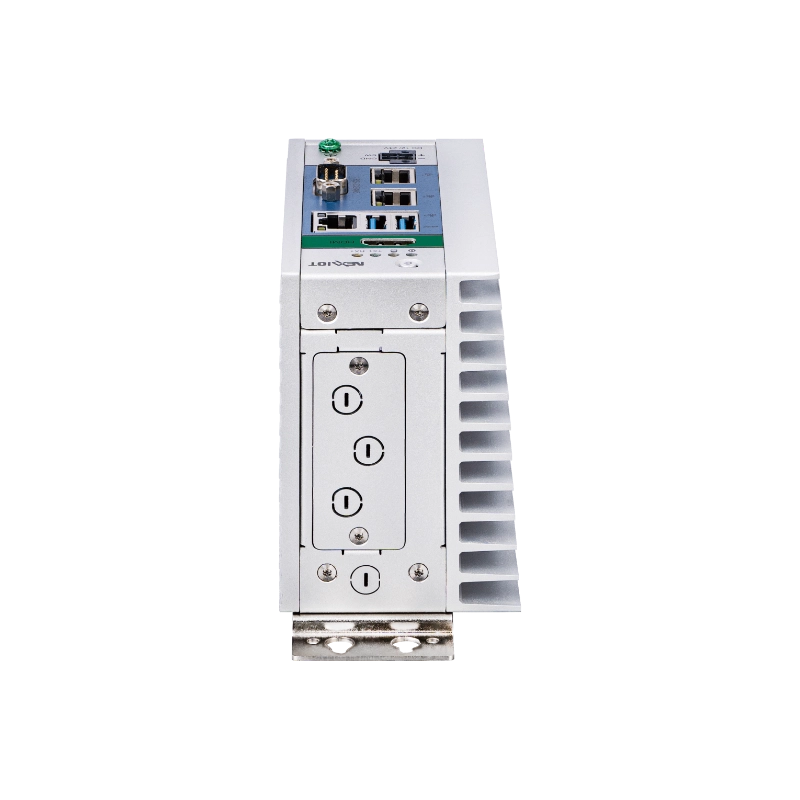

Top I/O Interface
- N/A

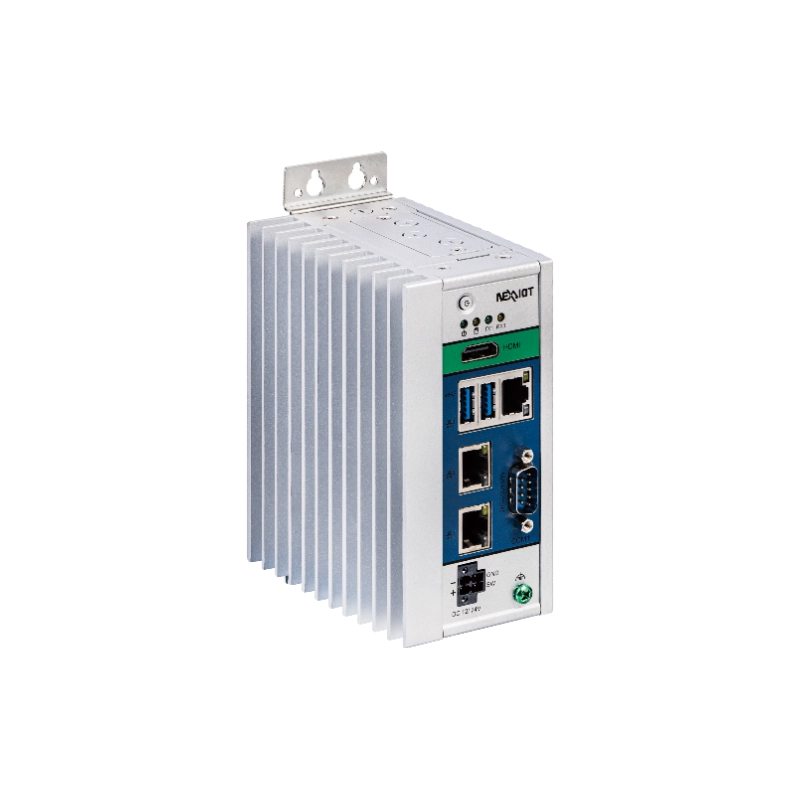

Front I/O Interface
- 1 x HDMI port
- 3 x Intel® I226-IT 2.5 GbE LAN port; supports WoL, teaming and PXE
- 2 x USB 3.2 Gen2 (900mA)
- 1 x DB9, supports RS232/485 with auto-flow control (TX, RX, CTX, RTX), supports 2.5KV isolation protection
- 1 x ATX power on/off switch
- 1 x 4-pin DC input, typical 12/24V DC input with ±20% range
Expansion Slot
- N/A
Power Requirement
- Power input: typical +12/24VDC ±20%
- 1 x Optional 24V, 60W power adapter
Dimensions
- 66.5mm (W) x 100mm (D) x 130mm (H)
Construction
- Aluminum and metal chassis with fanless design
Environment
- Operating temperature:
  -Ambient with low airflow: -10 ~ 60°C (Default) (according to IEC60068-2-1, IEC60068-2-2, IEC60068-2-14) (Tolerance +/- 2°C) for industry-grade
  -Ambient with low airflow: -10 ~ 55°C (according to IEC60068-2-1, IEC60068-2-2, IEC60068-2-14) (Tolerance +/- 2°C) for CB/CCC/UL
- Storage temperature: -20°C to 80°C
  Relative humidity: 10% to 95% (non-condensing)
- Shock protection:
  -eMMC: 50G, half sine, 11ms, IEC60068-27
- Vibration protection:
  -Random: 2Grms @ 5~500 Hz, IEC60068-2-64
  -Sinusoidal: 2Grms @ 5~500Hz, IEC60068-2-64
Certification
- CE approval
  -EN61000-6-2
  -EN61000-6-4
- FCC Class A
- UL/cUL (By request)
- CCC (By request)
Installed OS
- Win11 IoT Enterprise 2024 LTSC MultiLang ESD Entry

Own Brand, Own Factory Production: High-quality assurance and global fast shipping.
Ships Fast: Orders are processed and shipped within 2 business days.
2-Year Global Warranty: Limited hardware warranty from the shipment date.
30-Day Return Policy: Satisfaction guarantee window (terms apply).
Free Shipping: Complimentary shipping on eligible global orders.
Direct Support: For any usage issues after purchase, please feel free to contact us anytime.

NEXCOM Return & Warranty Policy

1. Return Window (30 Days)

Customers may request a return or exchange within 30 days. The period is calculated from the shipment date (as shown on the invoice) to the date the return request is formally submitted.

* Please note: A "Return" (for refund) is distinct from our "2-Year Hardware Warranty" (for repair).

2. 2-Year Limited Warranty

We provide a 2-year warranty on all Industrial PC hardware, starting from the shipment date. This covers technical defects in materials and workmanship. During this period, NEXCOM offers repair or replacement services according to the RMA evaluation.

3. Return Conditions

Items must be in original, unused condition with all original packaging, manuals, and accessories.
Customized Orders: IPCs with specific custom configurations (e.g., custom RAM/SSD/OS) are Non-Returnable unless a hardware defect is confirmed.
Electronic components must be returned in their original anti-static packaging.

4. Shipping & Destination

All returns must be shipped back to our headquarters in Taiwan:

Return Address:
NEXCOM International Co., Ltd.
9F, No.920, Zhongzheng Rd., Zhonghe Dist.,
New Taipei City, Taiwan 235015

Scenario	Cost Responsibility
Defective Items (DOA)	Seller covers return shipping.
Non-Defective Returns	Buyer covers shipping and duties. Restocking fees will be quoted based on actual inspection of the returned unit.

5. RMA Procedure

To initiate a return, please email us at ecommerce@nexcom.com.tw to obtain an RMA number.

* Shipments without an RMA number clearly marked on the outer box will be refused and returned at the sender's expense.

Contact Us: ecommerce@nexcom.com.tw
NEXCOM International Co., Ltd. | Industrial Computing Solutions

NEXCOM NIFE 106-A01 Datasheet
- NEXCOM AIoT Mart Customer Service Email: ecommerce@nexcom.com.tw
Access NEXCOM Industrial Solutions on Our Official Online Channels:

Specifications
CPU Support

Onboard Intel® Processor N97 quad core
Main Memory

Onboard LPDDR5-4800 SDRAM,
default 8GB (optional by DBOM up to 16 GB), with In-band ECC
Display Option

1 x HDMI port, resolution up to 3840 x 2160@30Hz
Status LEDs

4 x LED status indicator for power, battery, Tx, Rx
Storage Device

Onboard eMMC 64GB
Top I/O Interface

N/A
Front I/O Interface

1 x HDMI port

3 x Intel® I226-IT 2.5 GbE LAN port; supports WoL, teaming and PXE

2 x USB 3.2 Gen2 (900mA)

1 x DB9, supports RS232/485 with auto-flow control (TX, RX, CTX, RTX), supports 2.5KV isolation protection

1 x ATX power on/off switch

1 x 4-pin DC input, typical 12/24V DC input with ±20% range
Expansion Slot

N/A
Power Requirement

Power input: typical +12/24VDC ±20%

1 x Optional 24V, 60W power adapter
Dimensions

66.5mm (W) x 100mm (D) x 130mm (H)
Construction

Aluminum and metal chassis with fanless design
Environment

Operating temperature:
-Ambient with low airflow: -10 ~ 60°C (Default) (according to IEC60068-2-1, IEC60068-2-2, IEC60068-2-14) (Tolerance +/- 2°C) for industry-grade
-Ambient with low airflow: -10 ~ 55°C (according to IEC60068-2-1, IEC60068-2-2, IEC60068-2-14) (Tolerance +/- 2°C) for CB/CCC/UL

Storage temperature: -20°C to 80°C
Relative humidity: 10% to 95% (non-condensing)

Shock protection:
-eMMC: 50G, half sine, 11ms, IEC60068-27

Vibration protection:
-Random: 2Grms @ 5~500 Hz, IEC60068-2-64
-Sinusoidal: 2Grms @ 5~500Hz, IEC60068-2-64
Certification

CE approval
-EN61000-6-2
-EN61000-6-4

FCC Class A

UL/cUL (By request)

CCC (By request)
Installed OS

Win11 IoT Enterprise 2024 LTSC MultiLang ESD Entry

After-sales service

Own Brand, Own Factory Production: High-quality assurance and global fast shipping.
Ships Fast: Orders are processed and shipped within 2 business days.
2-Year Global Warranty: Limited hardware warranty from the shipment date.
30-Day Return Policy: Satisfaction guarantee window (terms apply).
Free Shipping: Complimentary shipping on eligible global orders.
Direct Support: For any usage issues after purchase, please feel free to contact us anytime.

NEXCOM Return & Warranty Policy

1. Return Window (30 Days)

Customers may request a return or exchange within 30 days. The period is calculated from the shipment date (as shown on the invoice) to the date the return request is formally submitted.

* Please note: A "Return" (for refund) is distinct from our "2-Year Hardware Warranty" (for repair).

2. 2-Year Limited Warranty

3. Return Conditions

Items must be in original, unused condition with all original packaging, manuals, and accessories.
Customized Orders: IPCs with specific custom configurations (e.g., custom RAM/SSD/OS) are Non-Returnable unless a hardware defect is confirmed.
Electronic components must be returned in their original anti-static packaging.

4. Shipping & Destination

All returns must be shipped back to our headquarters in Taiwan:

Return Address:
NEXCOM International Co., Ltd.
9F, No.920, Zhongzheng Rd., Zhonghe Dist.,
New Taipei City, Taiwan 235015

Scenario	Cost Responsibility
Defective Items (DOA)	Seller covers return shipping.
Non-Defective Returns	Buyer covers shipping and duties. Restocking fees will be quoted based on actual inspection of the returned unit.

5. RMA Procedure

To initiate a return, please email us at ecommerce@nexcom.com.tw to obtain an RMA number.

* Shipments without an RMA number clearly marked on the outer box will be refused and returned at the sender's expense.

Contact Us: ecommerce@nexcom.com.tw
NEXCOM International Co., Ltd. | Industrial Computing Solutions

Download

NEXCOM NIFE 106-A01 Datasheet
Contact Us
- NEXCOM AIoT Mart Customer Service Email: ecommerce@nexcom.com.tw
Online Shopping

Access NEXCOM Industrial Solutions on Our Official Online Channels:

NEXCOM NIFE106-A01 Industrial PC

Compact. Connected. Industrial-Grade Smart Automation.

Introducing the NIFE 106 automation system: compact and powerful, it's ideal for entry-level automation needs. The system comes equipped with an Intel® Processor N97, 8GB LPDDR5-4800 SDRAM memory, and 64GB eMMC storage, providing seamless performance. It features all-front I/O, including three LAN ports, one isolated COM port, and two USB 3.2 Gen2 ports, offering unmatched integration flexibility. With onboard TPM 2.0 for security and compliance with industrial standards EN61000-6-2 (EMS), and EN61000-6-4 (EMI), it guarantees reliability and safety. The NIFE 106 can be easily installed on a DIN-rail and has a wide operating temperature range of -10~60 °C, making it the perfect industrial automation solution.

Enhance your automation capabilities with the NIFE 106 - a compact device that delivers performance, reliability, and versatility!

Ultra-Compact Power for Smart Automation

The NIFE 106-A01 redefines entry-level automation with its ultra-compact, fanless design built for modern industrial environments. Powered by an efficient Intel® Processor N97 and equipped with 8GB LPDDR5 memory and 64GB onboard eMMC storage, it delivers responsive, low-power computing in a small footprint. Whether you're deploying smart sensors, edge controllers, or basic HMI systems, the NIFE 106-A01 offers reliable processing performance to meet your real-time automation needs.

Optimized I/O for Seamless Integration

Designed for maximum convenience, the NIFE 106-A01 features a full front-access I/O layout. It includes three Intel® I226-IT 2.5GbE LAN ports with support for WoL, PXE, and teaming, two USB 3.2 Gen2 ports, and an isolated RS232/485 COM port—ideal for direct integration with legacy and modern devices. A 4-pin DC power input supports 12/24V systems with ±20% tolerance, making it adaptable to diverse control cabinets and field equipment setups.

Industrial-Grade Reliability with Security Built-In

Built with ruggedness in mind, the NIFE 106-A01 features a fanless aluminum chassis, wide operating temperature support (-10°C to 60°C), and compliance with EN61000-6-2 and EN61000-6-4 standards, ensuring electromagnetic immunity and emission control. Onboard TPM 2.0 provides enhanced system security, while support for Windows 11 IoT Enterprise LTSC 2024 ensures long-term OS stability. With optional UL/CCC certifications and vibration/shock resistance, it's ready for any industrial deployment.
