Industrial Display

NexAIoT Panel PC | APPC1560-A01

15” XGA panel PC, Intel® N97, resistive touch, 8GB DDR5.

Merchandise number：10IA1560C01XE

Discounted price:US$
Sale US$
MSRP US$
Use bonus pointspt.

Description：

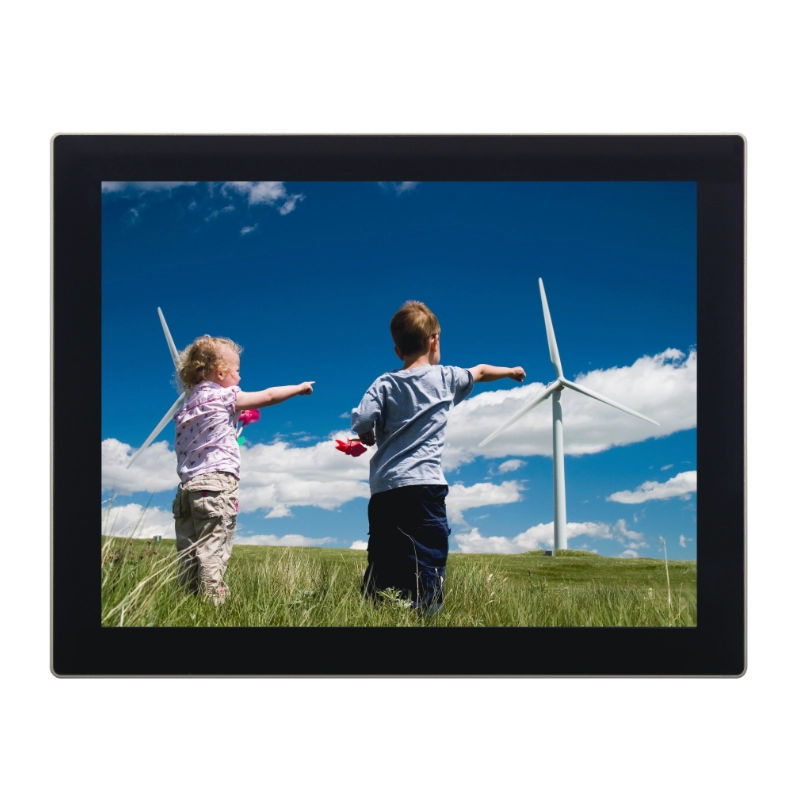

4:3 15” XGA fanless LED panel computer
Intel® Processor N97, Quad Core 2.0GHz, 6M Cache
Flush panel by 5-wire touch screen with slim bezel
1 x DDR5-4800MHz with default 8GB installed
Additional 2nd Display: 1 x DP / 1 x USB-C
Dual Intel® 2.5GbE LAN ports, 2 x USB 3.2, 1 x Line-out
2 x RS232/422/485, 1 x RS232, 1 x mini-PCIe, 2 x M.2
IP65 compliant front panel

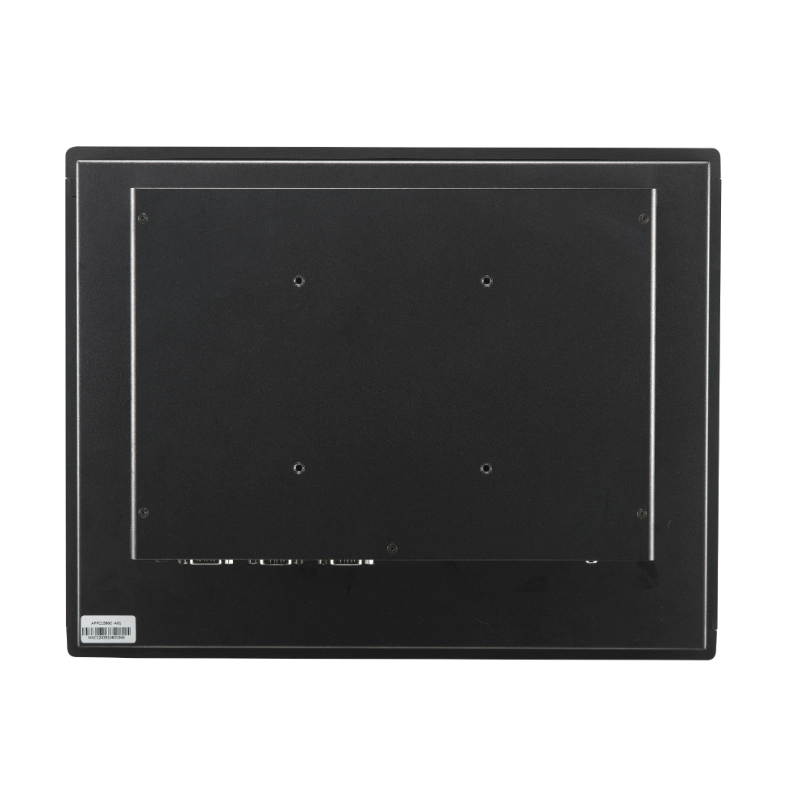

Mounting support: panel/wall/stand/VESA 100mm x 100mm
DC power input 24VDC

Download file

Spec.

Panel
- LCD size: 15”, 4:3
- Resolution: XGA 1024 x 768
- Luminance: 350cd/m²
- Contrast ratio: 1000:1
- LCD Color: 16.7M
- Viewing angle: 89 (U), 89 (D), 89 (L), 89 (R)
- Backlight: LED
Touch
- 5-wire resistive (flush panel type)
- Light transmission: 80%
- Interface: USB
System
- CPU: Onboard Alder Lake N Intel® processor N97
- BIOS: AMI BIOS
- Support TPM2.0
- System memory: DDR5 4800 SO-DIMM INNODISK 8GB
- Storage device
  - M.2 2242 SATAIII INNODISK 128GB 3D TLC T:-0~70°C

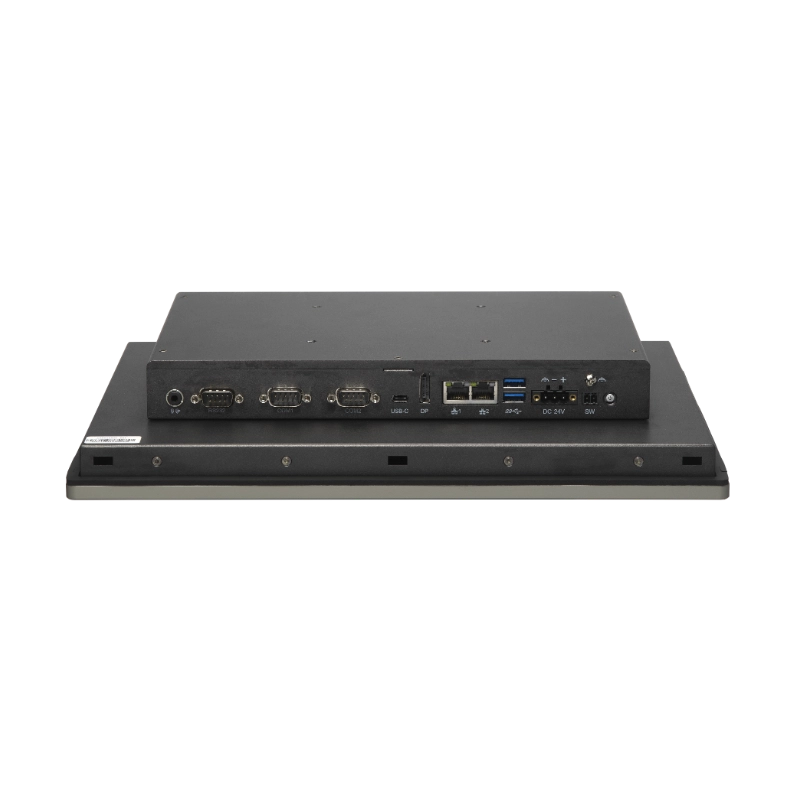

Rear I/O interface
- Power button
- 1 x 2-pin remote power on/off Terminal Block
- 24V DC input with 3-pins Terminal Block
- 2 x USB 3.2 Type A
- Ethernet: 2 x RJ45
- 1 x DP1.4a (up to 4K@60Hz)
- 1 x USB Type C (Support USB 3.2 / DP1.4a Alt. mode, up to 4K@60Hz)
- DB9 for COM1 & COM2
  - COM1: RS232/422/485 auto flow control
  - COM2: RS232/422/485 auto flow control
- 1 x DB9 for RS232 support
- 1 x Line-out
Ethernet
- LAN chip: dual Intel® I226-IT Gigabit LAN
- Ethernet interface: 10/100/1000/2500Base-T Ethernet compatible
- Support WoL and PXE
Audio
- HD audio codec: Realtek ALC888S-VD
- Audio interface: Line-out
Internal Slot
- 1 x mini-PCIe (PCIe x1, USB 2.0, SIM) for Wi-Fi/FBI/LTE
- 1 x M.2 2242 Key B (SATA) for storage
- 1 x M.2 2230/3042/3052 Key B (PCIe x1, USB 3.0, USB 2.0, SIM) for 5G/LTE
- 1 x nano SIM card slot onboard
- 1 x USB 2.0 Type A
Mechanical & Environment
- Color: Pantone 400C\RAL 090 80 10 aluminum front bezel and black silver PC box
- IP protection: IP65 front
- Mounting: panel/wall/stand/VESA 100mm x 100mm
- Power:
  - Power input: 24V DC ± 20%
  - AT/ATX power mode (default: ATX power mode)
  - Power adapter: optional AC to DC power adapter (24V DC, 60W)
- Vibration:
  - 2G@sine, 5-500Hz, 1hr/axis (M.2 operating), IEC60068-2-64
  - 2Grms@random condition, 5-500Hz, 1hr/axis (non-operating), IEC60068-2-64
- Shock:
  - 20G@wall mount, half sine, 11ms, IEC60068-2-27
- Temperature:
  - Operating temperature: 0°C to 50°C (ambient with air flow)
  - Storage temperature: -20°C to 75°C
- Operating humidity: 10% to 90%, non-condensing (limits to be at 90% RH at max 50°C)
- Dimension: 358.1 x 281.1 x 62.35 mm
- Weight: 4.6kg
Certifications
- CE approval (EN55032, EN55035)
- FCC Class A
OS Support Lists
- Win11 IoT Enterprise 2024 LTSC MultiLang ESD Entry

Own Brand, Own Factory Production: High-quality assurance and global fast shipping.
Ships Fast: Orders are processed and shipped within 2 business days.
2-Year Global Warranty: Limited hardware warranty from the shipment date.
30-Day Return Policy: Satisfaction guarantee window (terms apply).
Free Shipping: Complimentary shipping on eligible global orders.
Direct Support: For any usage issues after purchase, please feel free to contact us anytime.

NEXCOM Return & Warranty Policy

1. Return Window (30 Days)

Customers may request a return or exchange within 30 days. The period is calculated from the shipment date (as shown on the invoice) to the date the return request is formally submitted.

* Please note: A "Return" (for refund) is distinct from our "2-Year Hardware Warranty" (for repair).

2. 2-Year Limited Warranty

We provide a 2-year warranty on all Industrial PC hardware, starting from the shipment date. This covers technical defects in materials and workmanship. During this period, NEXCOM offers repair or replacement services according to the RMA evaluation.

3. Return Conditions

Items must be in original, unused condition with all original packaging, manuals, and accessories.
Customized Orders: IPCs with specific custom configurations (e.g., custom RAM/SSD/OS) are Non-Returnable unless a hardware defect is confirmed.
Electronic components must be returned in their original anti-static packaging.

4. Shipping & Destination

All returns must be shipped back to our headquarters in Taiwan:

Return Address:
NEXCOM International Co., Ltd.
9F, No.920, Zhongzheng Rd., Zhonghe Dist.,
New Taipei City, Taiwan 235015

Scenario	Cost Responsibility
Defective Items (DOA)	Seller covers return shipping.
Non-Defective Returns	Buyer covers shipping and duties. Restocking fees will be quoted based on actual inspection of the returned unit.

5. RMA Procedure

To initiate a return, please email us at ecommerce@nexcom.com.tw to obtain an RMA number.

* Shipments without an RMA number clearly marked on the outer box will be refused and returned at the sender's expense.

Contact Us: ecommerce@nexcom.com.tw
NEXCOM International Co., Ltd. | Industrial Computing Solutions

NEXCOM APPC 1560-A01-Datasheet
- NEXCOM AIoT Mart Customer Service Email: ecommerce@nexcom.com.tw
Access NEXCOM Industrial Solutions on Our Official Online Channels:

Specifications
Panel

LCD size: 15”, 4:3

Resolution: XGA 1024 x 768

Luminance: 350cd/m²

Contrast ratio: 1000:1

LCD Color: 16.7M

Viewing angle: 89 (U), 89 (D), 89 (L), 89 (R)

Backlight: LED
Touch

5-wire resistive (flush panel type)

Light transmission: 80%

Interface: USB
System

CPU: Onboard Alder Lake N Intel® processor N97

BIOS: AMI BIOS

Support TPM2.0

System memory: DDR5 4800 SO-DIMM INNODISK 8GB

Storage device
- M.2 2242 SATAIII INNODISK 128GB 3D TLC T:-0~70°C
Rear I/O interface

Power button

1 x 2-pin remote power on/off Terminal Block

24V DC input with 3-pins Terminal Block

2 x USB 3.2 Type A

Ethernet: 2 x RJ45

1 x DP1.4a (up to 4K@60Hz)

1 x USB Type C (Support USB 3.2 / DP1.4a Alt. mode, up to 4K@60Hz)

DB9 for COM1 & COM2
- COM1: RS232/422/485 auto flow control
- COM2: RS232/422/485 auto flow control

1 x DB9 for RS232 support

1 x Line-out
Ethernet

LAN chip: dual Intel® I226-IT Gigabit LAN

Ethernet interface: 10/100/1000/2500Base-T Ethernet compatible

Support WoL and PXE
Audio

HD audio codec: Realtek ALC888S-VD

Audio interface: Line-out
Internal Slot

1 x mini-PCIe (PCIe x1, USB 2.0, SIM) for Wi-Fi/FBI/LTE

1 x M.2 2242 Key B (SATA) for storage

1 x M.2 2230/3042/3052 Key B (PCIe x1, USB 3.0, USB 2.0, SIM) for 5G/LTE

1 x nano SIM card slot onboard

1 x USB 2.0 Type A
Mechanical & Environment

Color: Pantone 400C\RAL 090 80 10 aluminum front bezel and black silver PC box

IP protection: IP65 front

Mounting: panel/wall/stand/VESA 100mm x 100mm

Power:
- Power input: 24V DC ± 20%
- AT/ATX power mode (default: ATX power mode)
- Power adapter: optional AC to DC power adapter (24V DC, 60W)

Vibration:
- 2G@sine, 5-500Hz, 1hr/axis (M.2 operating), IEC60068-2-64
- 2Grms@random condition, 5-500Hz, 1hr/axis (non-operating), IEC60068-2-64

Shock:
- 20G@wall mount, half sine, 11ms, IEC60068-2-27

Temperature:
- Operating temperature: 0°C to 50°C (ambient with air flow)
- Storage temperature: -20°C to 75°C

Operating humidity: 10% to 90%, non-condensing (limits to be at 90% RH at max 50°C)

Dimension: 358.1 x 281.1 x 62.35 mm

Weight: 4.6kg
Certifications

CE approval (EN55032, EN55035)

FCC Class A
OS Support Lists

Win11 IoT Enterprise 2024 LTSC MultiLang ESD Entry

After-sales service

Own Brand, Own Factory Production: High-quality assurance and global fast shipping.
Ships Fast: Orders are processed and shipped within 2 business days.
2-Year Global Warranty: Limited hardware warranty from the shipment date.
30-Day Return Policy: Satisfaction guarantee window (terms apply).
Free Shipping: Complimentary shipping on eligible global orders.
Direct Support: For any usage issues after purchase, please feel free to contact us anytime.

NEXCOM Return & Warranty Policy

1. Return Window (30 Days)

Customers may request a return or exchange within 30 days. The period is calculated from the shipment date (as shown on the invoice) to the date the return request is formally submitted.

* Please note: A "Return" (for refund) is distinct from our "2-Year Hardware Warranty" (for repair).

2. 2-Year Limited Warranty

3. Return Conditions

Items must be in original, unused condition with all original packaging, manuals, and accessories.
Customized Orders: IPCs with specific custom configurations (e.g., custom RAM/SSD/OS) are Non-Returnable unless a hardware defect is confirmed.
Electronic components must be returned in their original anti-static packaging.

4. Shipping & Destination

All returns must be shipped back to our headquarters in Taiwan:

Return Address:
NEXCOM International Co., Ltd.
9F, No.920, Zhongzheng Rd., Zhonghe Dist.,
New Taipei City, Taiwan 235015

Scenario	Cost Responsibility
Defective Items (DOA)	Seller covers return shipping.
Non-Defective Returns	Buyer covers shipping and duties. Restocking fees will be quoted based on actual inspection of the returned unit.

5. RMA Procedure

To initiate a return, please email us at ecommerce@nexcom.com.tw to obtain an RMA number.

* Shipments without an RMA number clearly marked on the outer box will be refused and returned at the sender's expense.

Contact Us: ecommerce@nexcom.com.tw
NEXCOM International Co., Ltd. | Industrial Computing Solutions

Download

NEXCOM APPC 1560-A01-Datasheet
Contact Us
- NEXCOM AIoT Mart Customer Service Email: ecommerce@nexcom.com.tw
Online Shopping

Access NEXCOM Industrial Solutions on Our Official Online Channels:

NEXCCOM APPC 1560-A01 Applied Panel PC

Sleek 15” Panel PC with 5G & Dual LAN

The new 15” XGA fanless panel PC APPC 1560-A01 incorporating an industrial motherboard is intended for versatile industrial applications. APPC 1560-A01 supports 1024 x 768 (XGA) resolution and 350cd/m2 brightness. The front panel which adopts flush, narrow boarder design and complies with IP65 standard to makes it perfectly fit in industrial applications. APPC 1560-A01 contains dual 2.5 Gigabit Ethernet connectors, one mini-PCIe slot and two M.2 slots to support multiple networks of LAN/WLAN/WWAN (5G) and storage. In addition, APPC 1560-A01 can hook 2nd display via DP and USB-C for dual independent display. Two adjustable RS232/422/485 ports. It is ideal for general industrial equipment integration.

Rugged, Compact, and Industrial-Grade Design

The APPC1560-A01 features a 15” XGA (1024x768) LCD with a 4:3 aspect ratio and flush-mounted 5-wire resistive touch screen, making it ideal for legacy industrial interfaces and environments requiring precise input. Housed in a sleek aluminum bezel with IP65-rated front protection, it resists dust and water, while its fanless design ensures silent, reliable operation in harsh environments. With multiple mounting options including panel, wall, stand, and VESA (100x100mm), it easily integrates into various industrial settings.

High-Speed Connectivity and Expansion Flexibility

Engineered for modern connectivity, the APPC1560-A01 is equipped with dual Intel® I226 2.5GbE LAN ports for fast, reliable networking, and supports multiple displays via DP 1.4a and USB-C with DP Alt Mode (up to 4K@60Hz). It offers versatile I/O options including 3 x COM ports, 2 x USB 3.2, and an additional USB-C port. For wireless and modular expansion, the system includes a mini-PCIe slot and two M.2 slots supporting Wi-Fi, LTE, and 5G modules, enabling seamless communication and future-proof adaptability.

At the core of the APPC1560-A01 is the power-efficient Intel® N97 Alder Lake-N processor, paired with 8GB DDR5 memory and a 128GB M.2 SATA SSD, delivering enhanced system performance with low power consumption. The system supports Windows 11 IoT Enterprise 2024 LTSC, making it ideal for long-term industrial deployments. With built-in TPM 2.0 support, advanced remote power control, and compatibility with a wide range of industrial software, this panel PC is designed to serve as a robust platform for Industry 4.0, smart manufacturing, and factory automation applications.
