Industrial Display

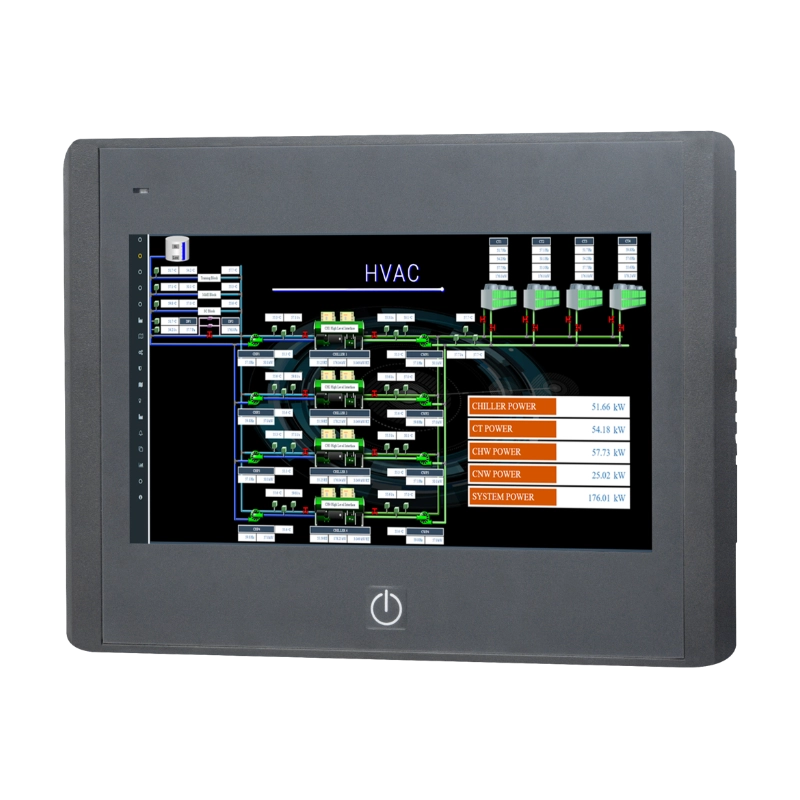

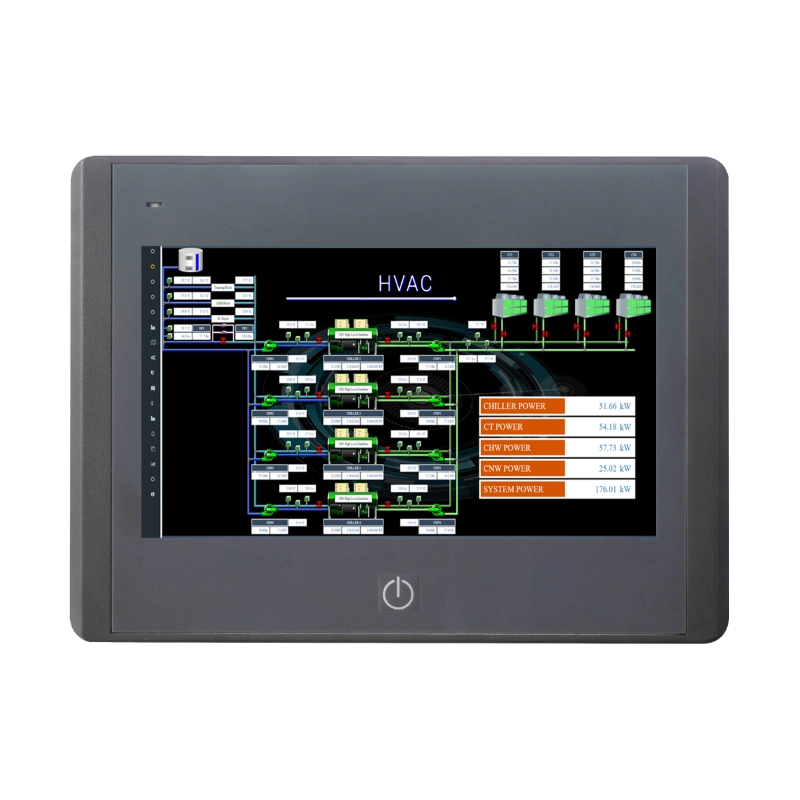

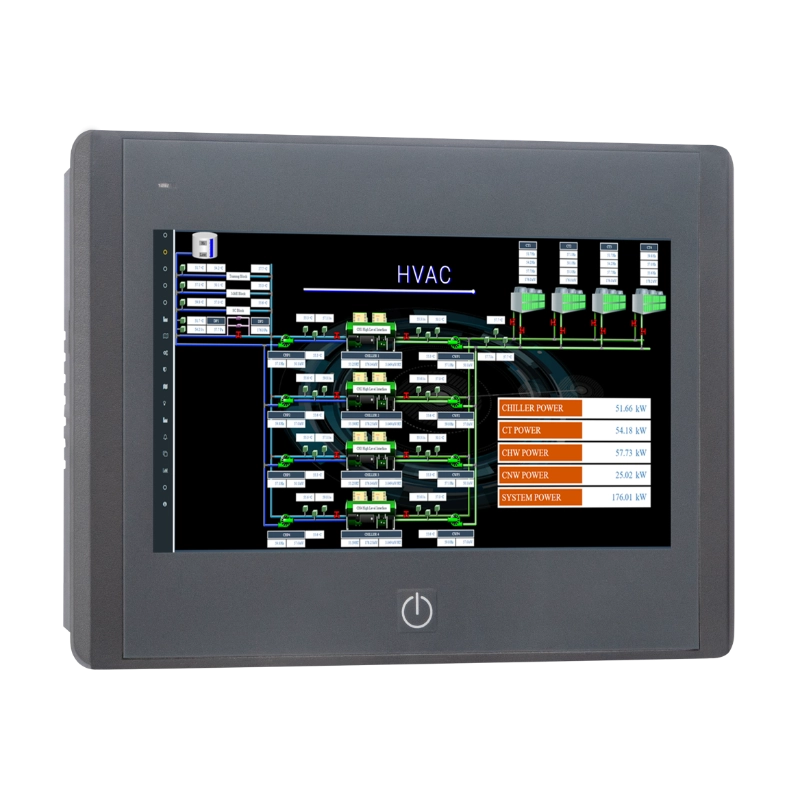

NexAIoT Arm-based HMI | nHMI-07L

7" Widescreen TFT HMI with Touchscreen

Merchandise number：79NH007L01X00

Discounted price:US$
Sale US$
MSRP US$
Use bonus pointspt.

Description：

Rich gallery of symbols and objects
Use the interface clearly and intuitive
Develop projects with easy to reach functions and properties
Support various automation protocols
Multi-language support
Allow users to visit anywhere and anytime
Password supports alphanumeric input
Panel or VESA 75mm x 75 mm mount, IP65 front bezel
ESD protection: level 4 (contact discharge 8KV, Air-Gap discharge 15KV), Class A

Download file

Spec.

CPU Support
- ARM 9 (400 MHz)
Main Memory
- 128MB SDRAM
Display
- 7” TFT, 800 x 480
- Luminance 300 (cd/m²)
- View angle 140/120 (H°/V°)
- Backlight lifetime 20,000 hours
- Contrast ratio 500:1
Net Weight (Kgs)
- 0.68 Kg

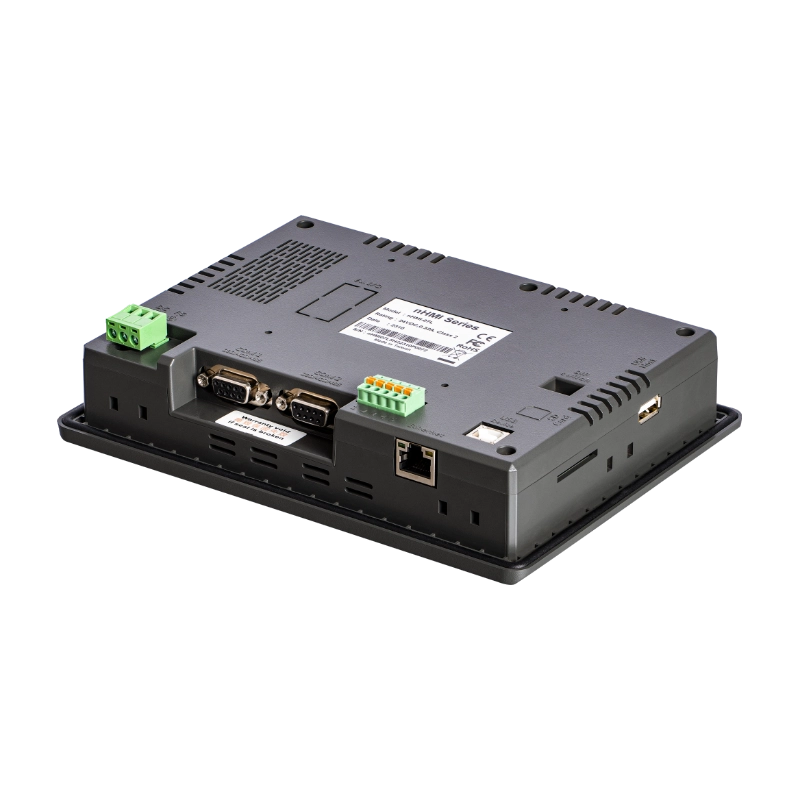

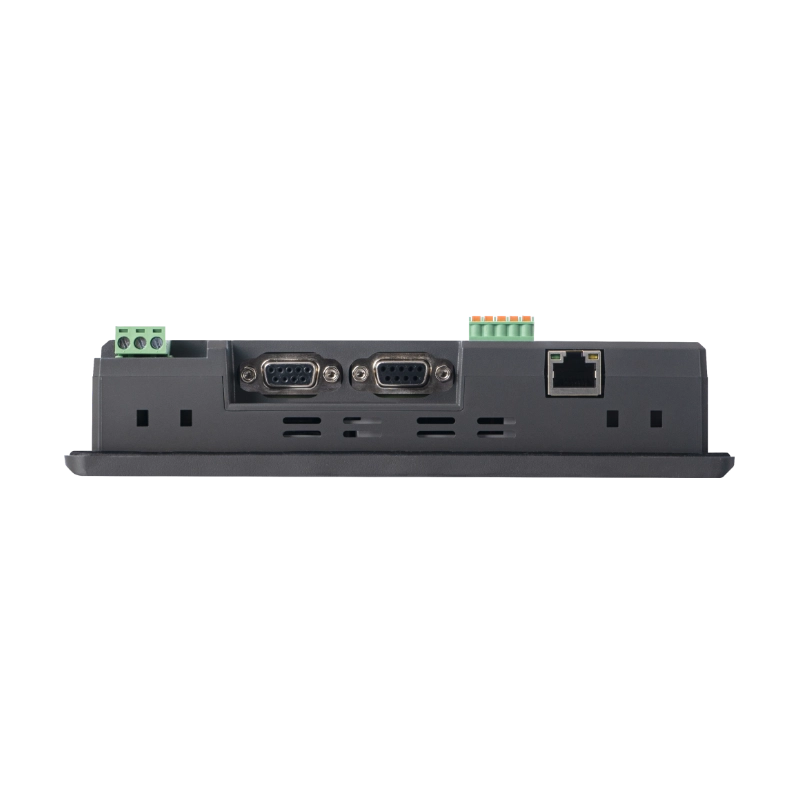

I/O Interface
- 1 x USB 1.1 host Type A
- 1 x USB 2.0 device Type B
- 2 x RS232/422/485, COM1, COM2
- 1 x RS232/485, COM3
- 1 x 10/100 Mbit Ethernet port
- 1 x SD Card Slot
Touch Screen
- 4-wire resistive touch
Power
- 19.2 ~ 28.8V Isolated Power
Dimensions
- 199.8mm (W) x 39.8 mm (D) x 147.8 mm (H)
Mounting
- Panel or VESA 75 mm x 75 mm mount
Cut-out
- 185.2 mm(W) x 113.2 mm(H)
Construction
- Painted plastic IP65 front bezel
Environment
- Operating temperature: ambient with air flow: 0°C to 50°C
- Storage temperature: -20°C to 60°C
- Relative humidity: 10% to 90% @ 40°C, (non-condensing)
- SED protection: level 4 (contact Discharge 8KV, Air-Gap discharge 15KV), Class A
Certifications
- CE
- FCC
  - EN 61000-6-4
  - EN 61000-6-2

Own Brand, Own Factory Production: High-quality assurance and global fast shipping.
Ships Fast: Orders are processed and shipped within 2 business days.
2-Year Global Warranty: Limited hardware warranty from the shipment date.
30-Day Return Policy: Satisfaction guarantee window (terms apply).
Free Shipping: Complimentary shipping on eligible global orders.
Direct Support: For any usage issues after purchase, please feel free to contact us anytime.

NEXCOM Return & Warranty Policy

1. Return Window (30 Days)

Customers may request a return or exchange within 30 days. The period is calculated from the shipment date (as shown on the invoice) to the date the return request is formally submitted.

* Please note: A "Return" (for refund) is distinct from our "2-Year Hardware Warranty" (for repair).

2. 2-Year Limited Warranty

We provide a 2-year warranty on all Industrial PC hardware, starting from the shipment date. This covers technical defects in materials and workmanship. During this period, NEXCOM offers repair or replacement services according to the RMA evaluation.

3. Return Conditions

Items must be in original, unused condition with all original packaging, manuals, and accessories.
Customized Orders: IPCs with specific custom configurations (e.g., custom RAM/SSD/OS) are Non-Returnable unless a hardware defect is confirmed.
Electronic components must be returned in their original anti-static packaging.

4. Shipping & Destination

All returns must be shipped back to our headquarters in Taiwan:

Return Address:
NEXCOM International Co., Ltd.
9F, No.920, Zhongzheng Rd., Zhonghe Dist.,
New Taipei City, Taiwan 235015

Scenario	Cost Responsibility
Defective Items (DOA)	Seller covers return shipping.
Non-Defective Returns	Buyer covers shipping and duties. Restocking fees will be quoted based on actual inspection of the returned unit.

5. RMA Procedure

To initiate a return, please email us at ecommerce@nexcom.com.tw to obtain an RMA number.

* Shipments without an RMA number clearly marked on the outer box will be refused and returned at the sender's expense.

Contact Us: ecommerce@nexcom.com.tw
NEXCOM International Co., Ltd. | Industrial Computing Solutions

NEXCOM nHMI-07L-Datasheet
- NEXCOM AIoT Mart Customer Service Email: ecommerce@nexcom.com.tw
Access NEXCOM Industrial Solutions on Our Official Online Channels:
Access NEXCOM Industrial Solutions on Our Official Online Channels:

Specifications
CPU Support

ARM 9 (400 MHz)
Main Memory

128MB SDRAM
Display

7” TFT, 800 x 480

Luminance 300 (cd/m²)

View angle 140/120 (H°/V°)

Backlight lifetime 20,000 hours

Contrast ratio 500:1
Net Weight (Kgs)

0.68 Kg
I/O Interface

1 x USB 1.1 host Type A

1 x USB 2.0 device Type B

2 x RS232/422/485, COM1, COM2

1 x RS232/485, COM3

1 x 10/100 Mbit Ethernet port

1 x SD Card Slot
Touch Screen

4-wire resistive touch
Power

19.2 ~ 28.8V Isolated Power
Dimensions

199.8mm (W) x 39.8 mm (D) x 147.8 mm (H)
Mounting

Panel or VESA 75 mm x 75 mm mount
Cut-out

185.2 mm(W) x 113.2 mm(H)
Construction

Painted plastic IP65 front bezel
Environment

Operating temperature: ambient with air flow: 0°C to 50°C

Storage temperature: -20°C to 60°C

Relative humidity: 10% to 90% @ 40°C, (non-condensing)

SED protection: level 4 (contact Discharge 8KV, Air-Gap discharge 15KV), Class A
Certifications

CE

FCC
- EN 61000-6-4
- EN 61000-6-2

After-sales service

Own Brand, Own Factory Production: High-quality assurance and global fast shipping.
Ships Fast: Orders are processed and shipped within 2 business days.
2-Year Global Warranty: Limited hardware warranty from the shipment date.
30-Day Return Policy: Satisfaction guarantee window (terms apply).
Free Shipping: Complimentary shipping on eligible global orders.
Direct Support: For any usage issues after purchase, please feel free to contact us anytime.

NEXCOM Return & Warranty Policy

1. Return Window (30 Days)

Customers may request a return or exchange within 30 days. The period is calculated from the shipment date (as shown on the invoice) to the date the return request is formally submitted.

* Please note: A "Return" (for refund) is distinct from our "2-Year Hardware Warranty" (for repair).

2. 2-Year Limited Warranty

3. Return Conditions

Items must be in original, unused condition with all original packaging, manuals, and accessories.
Customized Orders: IPCs with specific custom configurations (e.g., custom RAM/SSD/OS) are Non-Returnable unless a hardware defect is confirmed.
Electronic components must be returned in their original anti-static packaging.

4. Shipping & Destination

All returns must be shipped back to our headquarters in Taiwan:

Return Address:
NEXCOM International Co., Ltd.
9F, No.920, Zhongzheng Rd., Zhonghe Dist.,
New Taipei City, Taiwan 235015

Scenario	Cost Responsibility
Defective Items (DOA)	Seller covers return shipping.
Non-Defective Returns	Buyer covers shipping and duties. Restocking fees will be quoted based on actual inspection of the returned unit.

5. RMA Procedure

To initiate a return, please email us at ecommerce@nexcom.com.tw to obtain an RMA number.

* Shipments without an RMA number clearly marked on the outer box will be refused and returned at the sender's expense.

Contact Us: ecommerce@nexcom.com.tw
NEXCOM International Co., Ltd. | Industrial Computing Solutions

Download

NEXCOM nHMI-07L-Datasheet
Contact Us
- NEXCOM AIoT Mart Customer Service Email: ecommerce@nexcom.com.tw
Online Shopping

Access NEXCOM Industrial Solutions on Our Official Online Channels:
Online Shopping

Access NEXCOM Industrial Solutions on Our Official Online Channels:

NEXCCOM nHMI-07L Arm-based HMI

nHMI-07L — Smart Control, Seamless Interaction

The nHMI-07L is a 7-inch widescreen ARM-based HMI designed for industrial and IoT applications, offering a clear, intuitive interface and a robust set of features to streamline control and monitoring tasks. Equipped with a 400 MHz ARM9 processor, 128MB SDRAM, and a 4-wire resistive touchscreen, it supports multiple communication protocols, multilanguage applications, and alphanumeric password input. Its IP65-rated front bezel and industrial-grade ESD protection ensure reliable performance in harsh environments, while panel and VESA mounting options provide installation flexibility. With a rich gallery of HMI objects, offline simulation, and scripting support, the nHMI-07L simplifies development while enhancing system efficiency.

Clear Interface, Powerful Core

The nHMI-07L features a 7” widescreen display with a responsive 4-wire resistive touchscreen, powered by a 400 MHz ARM9 processor and 128MB SDRAM. Its clean interface makes control simple and fast, even in tough environments.

Fast Development, Global Ready

With multi-language support, built-in automation protocols, offline simulation, and script capabilities, the nHMI-07L helps you build powerful HMI projects quickly — ready for deployment anywhere in the world.

Industrial Strength, Flexible Mounting

Designed with IP65 front protection and ESD resistance (8KV/15KV), it’s built to last. Panel and VESA mount options offer installation flexibility for factory floors, machines, or control cabinets.
