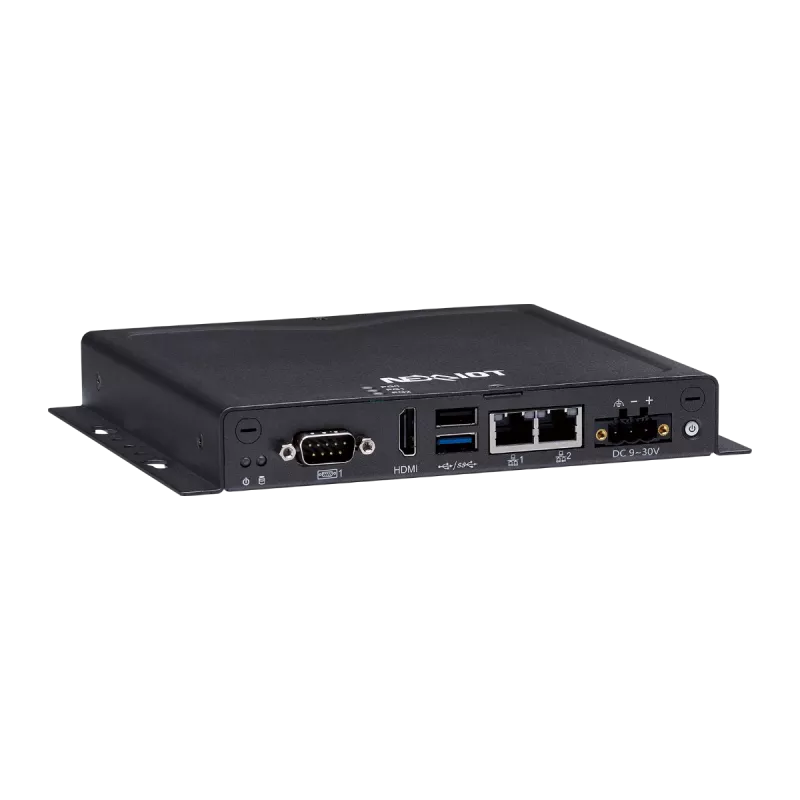

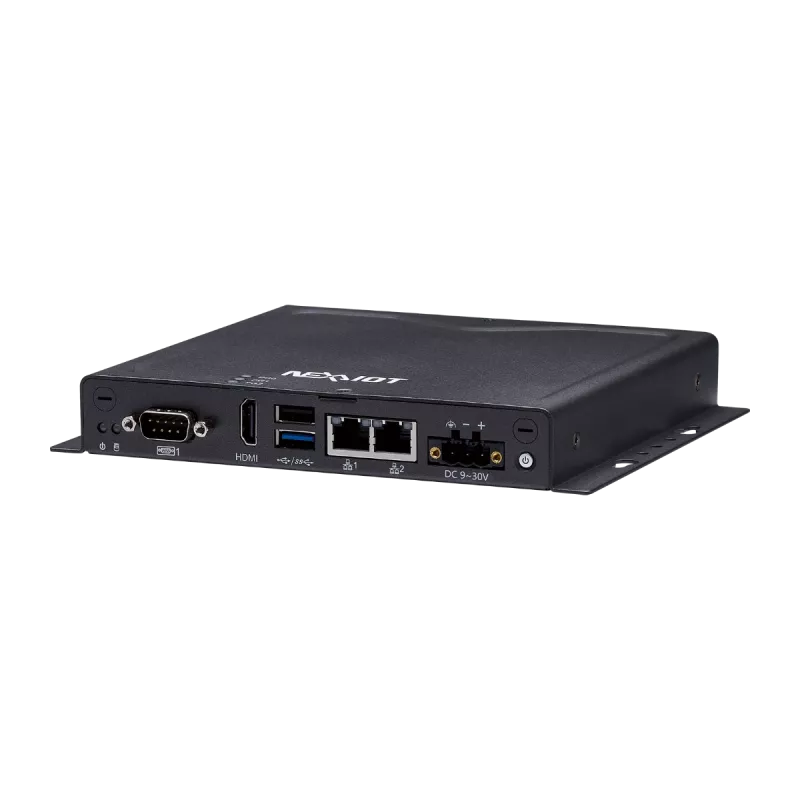

NexAIoT Fanless Embedded Computer | CPS50-N01

NexAIoT Fanless Embedded Computer | CPS50-N01

Celeron® J6413 Quad Core 1.8 GHz

Merchandise number：10JC0005000X0

Discounted price:US$
Sale US$
MSRP US$
Use bonus pointspt.

Description：

NXP i.MX8M Plus Cortex®-A53 quad core processor
Embedded Neural Processing Unit (NPU) delivers
up to 2.3 TOPS AI performance
1 x HDMI
1 x USB 3.0, 1 x USB 2.0
1 x COM
2 x GbE LAN ports
1 x Full-size mini-PCIe for optional Wi-Fi/BT/4G LTE
(PCIe 3.0, USB 2.0, SIM)
1 x Internal M.2 2230 Key E
(USB 2.0, SDIO, UART)
Modular rear I/O design for easy customization
Support 9~30V DC input

Download file

Spec.

CPU Support
- NXP i.MX8M Plus Cortex®-A53 quad core 1.6 GHz
Main Memory
- Onboard LPDDR4 2 GB, 4000MT/s memory
Display Option
- 1 x HDMI, resolution 3840 x 2160 @30 Hz, 1920 x 1080 @60 Hz
LED System Indicators
- Top: 3 x Green wireless network status LED
- Front: 1 x Green power LED, 1 x Green S/W programmable LED

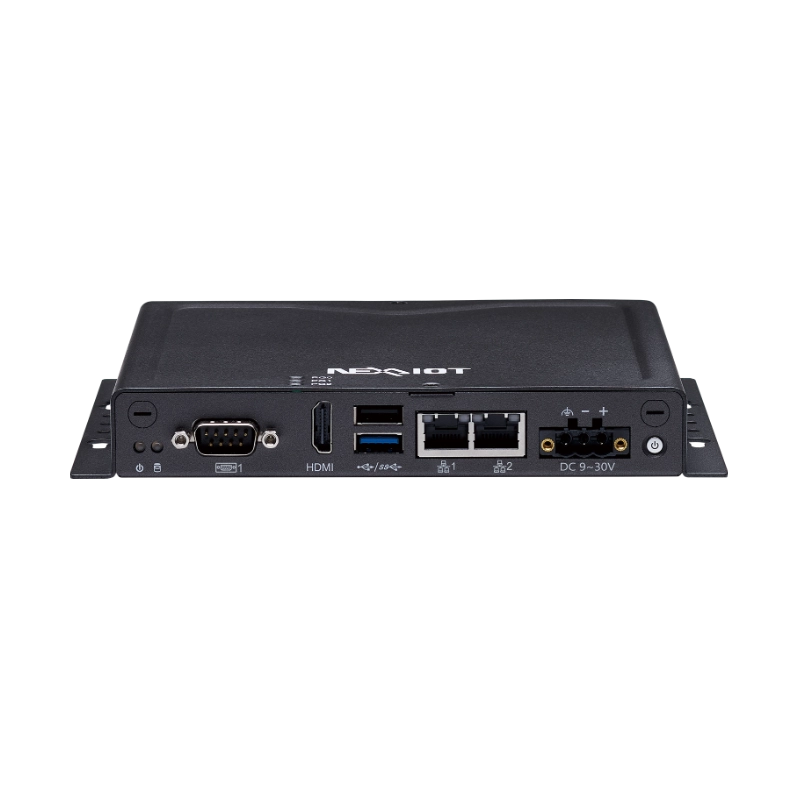

I/O Interface-Front
- ATX power on/off switch
- 1 x HDMI
- 2 x RJ45 for GbE LAN
- 1 x USB 3.0 Type A port (900 mA), 1 x USB 2.0 Type A port (500 mA)
- 1 x DB9 for RS-232/422/485, select by SW (TX, RX, CTS, RTS 4 wire only)
- 1 x 3-pin terminal block, support 9-30VDC input
- 2 x Antenna hole for optional Wi-Fi/4G/LTE antenna

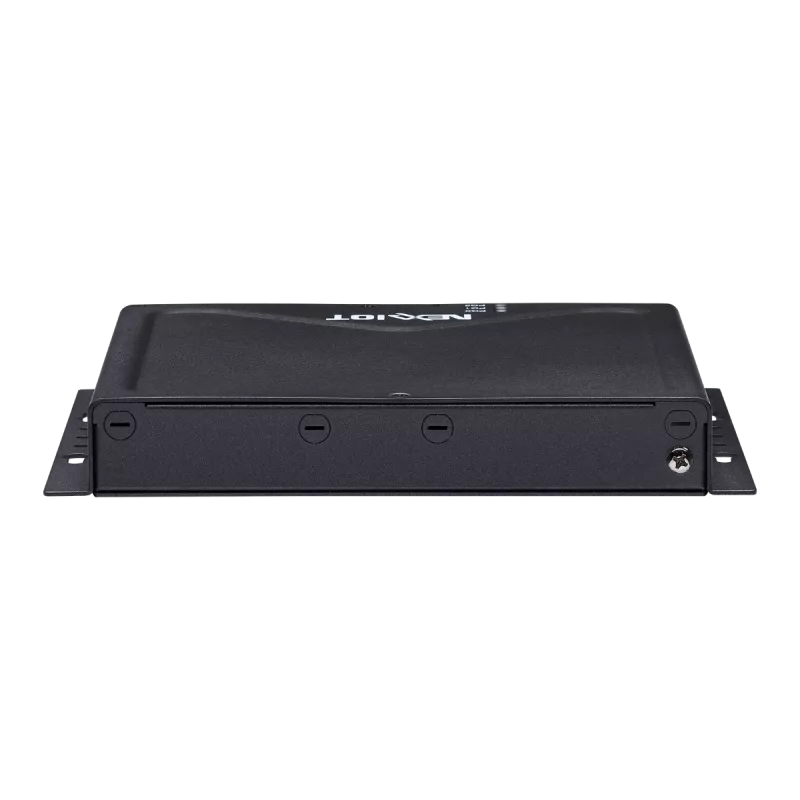

I/O Interface-Rear
- 4 x Antenna hole for optional Wi-Fi/4G/LTE antenna
I/O Interface-Internal
- 1 x MIPI-CSI connector
- 1 x 4-lane MIPI-DSI connector (Either one with LVDS connector, BOM option)
- 1 x LVDS connector 24-bit LVDS, backlight power: 12V, max 1A
- 1 x Touch connector
- 1 x Debug connector for console use
Storage Device
- 1 x Onboard 32 GB EMMC
- 1 x Internal Micro SD slot
Expansion Slot
- 1 x Full-size mini-PCIe for optional Wi-Fi/BT/4G LTE (PCIe 3.0, USB 2.0, SIM), support SIM card holder onboard
- 1 x M.2 2230 Key E (USB 2.0, SDIO, UART)
Power Requirements
- Power input: 9-30 VDC input
Support OS
- Primary: Linux 5.4.70_2.3.3 Yocto Project 3.0 (Zeus)
- Secondary: Ubuntu 20.04 LTS
Dimensions
- 162mm (W) x 150mm (D) x 26mm (H) w/o wall mount bracket
- 186mm (W) x 150mm (D) x 26mm (H) w/ wall mount bracket
Construction
- Metal chassis with fanless design
Environment
- Operating temperature
  - Ambient temperature: -20°C~70 °C
  (according to IEC60068-2-1, IEC60068-2-2, IEC60068-2-14)
- Storage temperature: -20°C to 85°C
- Relative humidity: 10% to 90% (non-condensing)
- Shock protection
  - EMMC/M.2: 50G@wall mount, half sine, 11ms (operation), IEC60068-2-27
- Vibration protection with EMMC/ M.2 condition:
  - Random: 2Grms@5~500 Hz, IEC60068-2-64
  - Sinusoidal: 2Grms@5~500 Hz, IEC60068-2-6
Certifications
- CE Approval
  - EN61000-6-2
  - EN61000-6-4
- FCC Class A

Own Brand, Own Factory Production: High-quality assurance and global fast shipping.
Ships Fast: Orders are processed and shipped within 2 business days.
2-Year Global Warranty: Limited hardware warranty from the shipment date.
30-Day Return Policy: Satisfaction guarantee window (terms apply).
Free Shipping: Complimentary shipping on eligible global orders.
Direct Support: For any usage issues after purchase, please feel free to contact us anytime.

NEXCOM Return & Warranty Policy

1. Return Window (30 Days)

Customers may request a return or exchange within 30 days. The period is calculated from the shipment date (as shown on the invoice) to the date the return request is formally submitted.

* Please note: A "Return" (for refund) is distinct from our "2-Year Hardware Warranty" (for repair).

2. 2-Year Limited Warranty

We provide a 2-year warranty on all Industrial PC hardware, starting from the shipment date. This covers technical defects in materials and workmanship. During this period, NEXCOM offers repair or replacement services according to the RMA evaluation.

3. Return Conditions

Items must be in original, unused condition with all original packaging, manuals, and accessories.
Customized Orders: IPCs with specific custom configurations (e.g., custom RAM/SSD/OS) are Non-Returnable unless a hardware defect is confirmed.
Electronic components must be returned in their original anti-static packaging.

4. Shipping & Destination

All returns must be shipped back to our headquarters in Taiwan:

Return Address:
NEXCOM International Co., Ltd.
9F, No.920, Zhongzheng Rd., Zhonghe Dist.,
New Taipei City, Taiwan 235015

Scenario	Cost Responsibility
Defective Items (DOA)	Seller covers return shipping.
Non-Defective Returns	Buyer covers shipping and duties. Restocking fees will be quoted based on actual inspection of the returned unit.

5. RMA Procedure

To initiate a return, please email us at ecommerce@nexcom.com.tw to obtain an RMA number.

* Shipments without an RMA number clearly marked on the outer box will be refused and returned at the sender's expense.

Contact Us: ecommerce@nexcom.com.tw
NEXCOM International Co., Ltd. | Industrial Computing Solutions

NEXCOM CPS 50-N01-Datasheet
- NEXCOM AIoT Mart Customer Service Email: ecommerce@nexcom.com.tw
Access NEXCOM Industrial Solutions on Our Official Online Channels:

Specifications
CPU Support

NXP i.MX8M Plus Cortex®-A53 quad core 1.6 GHz
Main Memory

Onboard LPDDR4 2 GB, 4000MT/s memory
Display Option

1 x HDMI, resolution 3840 x 2160 @30 Hz, 1920 x 1080 @60 Hz
LED System Indicators

Top: 3 x Green wireless network status LED

Front: 1 x Green power LED, 1 x Green S/W programmable LED
I/O Interface-Front

ATX power on/off switch

1 x HDMI

2 x RJ45 for GbE LAN

1 x USB 3.0 Type A port (900 mA), 1 x USB 2.0 Type A port (500 mA)

1 x DB9 for RS-232/422/485, select by SW (TX, RX, CTS, RTS 4 wire only)

1 x 3-pin terminal block, support 9-30VDC input

2 x Antenna hole for optional Wi-Fi/4G/LTE antenna
I/O Interface-Rear

4 x Antenna hole for optional Wi-Fi/4G/LTE antenna
I/O Interface-Internal

1 x MIPI-CSI connector

1 x 4-lane MIPI-DSI connector (Either one with LVDS connector, BOM option)

1 x LVDS connector 24-bit LVDS, backlight power: 12V, max 1A

1 x Touch connector

1 x Debug connector for console use
Storage Device

1 x Onboard 32 GB EMMC

1 x Internal Micro SD slot
Expansion Slot

1 x Full-size mini-PCIe for optional Wi-Fi/BT/4G LTE (PCIe 3.0, USB 2.0, SIM), support SIM card holder onboard

1 x M.2 2230 Key E (USB 2.0, SDIO, UART)
Power Requirements

Power input: 9-30 VDC input
Support OS

Primary: Linux 5.4.70_2.3.3 Yocto Project 3.0 (Zeus)

Secondary: Ubuntu 20.04 LTS
Dimensions

162mm (W) x 150mm (D) x 26mm (H) w/o wall mount bracket

186mm (W) x 150mm (D) x 26mm (H) w/ wall mount bracket
Construction

Metal chassis with fanless design
Environment

Operating temperature
- Ambient temperature: -20°C~70 °C
(according to IEC60068-2-1, IEC60068-2-2, IEC60068-2-14)

Storage temperature: -20°C to 85°C

Relative humidity: 10% to 90% (non-condensing)

Shock protection
- EMMC/M.2: 50G@wall mount, half sine, 11ms (operation), IEC60068-2-27

Vibration protection with EMMC/ M.2 condition:
- Random: 2Grms@5~500 Hz, IEC60068-2-64
- Sinusoidal: 2Grms@5~500 Hz, IEC60068-2-6
Certifications

CE Approval
- EN61000-6-2
- EN61000-6-4

FCC Class A

After-sales service

Own Brand, Own Factory Production: High-quality assurance and global fast shipping.
Ships Fast: Orders are processed and shipped within 2 business days.
2-Year Global Warranty: Limited hardware warranty from the shipment date.
30-Day Return Policy: Satisfaction guarantee window (terms apply).
Free Shipping: Complimentary shipping on eligible global orders.
Direct Support: For any usage issues after purchase, please feel free to contact us anytime.

NEXCOM Return & Warranty Policy

1. Return Window (30 Days)

Customers may request a return or exchange within 30 days. The period is calculated from the shipment date (as shown on the invoice) to the date the return request is formally submitted.

* Please note: A "Return" (for refund) is distinct from our "2-Year Hardware Warranty" (for repair).

2. 2-Year Limited Warranty

3. Return Conditions

Items must be in original, unused condition with all original packaging, manuals, and accessories.
Customized Orders: IPCs with specific custom configurations (e.g., custom RAM/SSD/OS) are Non-Returnable unless a hardware defect is confirmed.
Electronic components must be returned in their original anti-static packaging.

4. Shipping & Destination

All returns must be shipped back to our headquarters in Taiwan:

Return Address:
NEXCOM International Co., Ltd.
9F, No.920, Zhongzheng Rd., Zhonghe Dist.,
New Taipei City, Taiwan 235015

Scenario	Cost Responsibility
Defective Items (DOA)	Seller covers return shipping.
Non-Defective Returns	Buyer covers shipping and duties. Restocking fees will be quoted based on actual inspection of the returned unit.

5. RMA Procedure

To initiate a return, please email us at ecommerce@nexcom.com.tw to obtain an RMA number.

* Shipments without an RMA number clearly marked on the outer box will be refused and returned at the sender's expense.

Contact Us: ecommerce@nexcom.com.tw
NEXCOM International Co., Ltd. | Industrial Computing Solutions

Download

NEXCOM CPS 50-N01-Datasheet
Contact Us
- NEXCOM AIoT Mart Customer Service Email: ecommerce@nexcom.com.tw
Online Shopping

Access NEXCOM Industrial Solutions on Our Official Online Channels:

NEXCOM CPS50-N01 Industrial PC

Reliable, High-Performance Solution for Industrial Automation

CPS 50 is a fanless PC powered by NXP i.MX8M Plus Cortex®-A53 quad core processor with Neural Network Accelerator up to 2.3 TOPS designed for advanced machine learning inference at the industrial and IoT (Internet-of-Things) edge that require high-performance and low power consumption. CPS 50 comes with onboard 2GB LPDDR4 memory, 32GB eMMC, and internal Micro SD slot for storage expansion. CPS 50 packs all-you-need peripheral connectivity and offers flexibility with a modular rear I/O design for easy customization. The CPS 50 offers strong connectivity - Ethernet-based LAN ports and traditional serial ports, mainly for Modbus TCP or Modbus RTU communication. For wireless connectivity, CPS 50 has mini-PCIe and M.2 sockets that can support optional wireless modules for IoT applications, for example, Wi-Fi, Bluetooth, 4G LTE, and 5G modules as well as a storage module. CPS 50 supports a wide DC input range from 9-30VDC. All of the features make CPS 50 suitable for various applications such as edge AI, M2M intelligent systems, and factory automation platforms.

AI Acceleration at the Edge for Real Time Intelligence

Equipped with an advanced quad core ARM processor and an integrated neural processing unit delivering up to 2.3 TOPS, this system enables powerful AI inference directly at the edge. It eliminates the need for cloud offloading, allowing real time analytics and decision making in environments with limited connectivity. This embedded AI capability is ideal for machine vision, predictive maintenance, and intelligent automation applications, setting a new benchmark for performance in compact industrial gateways.

Flexible I O Architecture for Seamless Integration

Designed with modular connectivity in mind, the system features a wide range of industrial I O including dual gigabit LAN, serial communication, USB ports, and HDMI. Combined with onboard mini PCIe and M.2 expansion slots, it supports easy integration with wireless modules such as WiFi, Bluetooth, or cellular networks. This versatility ensures smooth deployment across diverse use cases from factory floors to remote energy facilities, where custom interface configurations are critical.

Rugged Design for Harsh Industrial Environments

Built with a fanless metal chassis and wide voltage input support from 9 to 30 volts, the unit is engineered to withstand extreme industrial conditions. It operates reliably across a wide temperature range and meets stringent vibration and shock resistance standards. Its durability and compact footprint make it the optimal choice for space constrained and mission critical environments requiring stable 24 by 7 operation.
