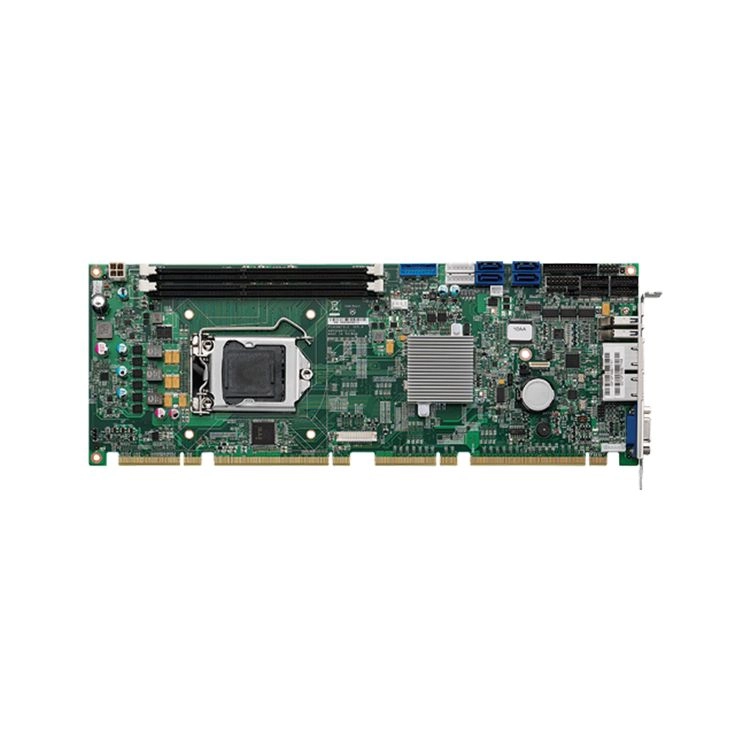

NexCOBOT PICMG SBC | PEAK887VL2

PICMG 1.3 Full-Size SBC

Merchandise number：10P0887VL00X0

Discounted price:US$
Sale US$
MSRP US$
Use bonus pointspt.

Description：

Scalable Performance:
Supports 4th Generation Intel® Core™ i7/i5/i3 processors (Non-ECC)
Reliable Chipset:
Intel® Q87 PCH chipset compliant with PICMG 1.3 specification
High-Speed Memory:
Dual channel DDR3L NON-ECC DIMMs 1333/1600MHz up to 16GB
Rich Expansion Interfaces:
PCIe x16, 4× PCIe x1, 4× USB 3.0, 4× USB 2.0, 4× SATA 3.0, 2× SATA 2.0, and GbE
Versatile Display Support:
VGA, DVI, and HDMI outputs

Download file

Spec.

CPU Support
- Intel® Core™ i7/i5/i3 processor (95W/ 65W/ 45W/ 35W) TDPs
Main Memory
- 2 x DIMM, support Dual channel DDR3L (default)/ DDR3 NON-ECC DIMM (dual voltage models by auto detection for DDR3 and DDR3L
- Maximum 16 GB – 1066/1333/1600 MT/S
Platform Control Hub
- Intel® Q87 Express Chipset PCH
BIOS
- AMI system BIOS
- 16 Mbit SPI depended on AMT function
- Dual BIOS for Four PCIex1 and One PCIex4 (setting by DP switch)
Display
- The Processor Graphics contains a refresh of the seventh generation graphics
- Intel® HD Graphics GT1 / GT2
- Share system memory
- Analog Display Support
- Drive a standard progressive scan analog monitor
Audio
- Reverse HDA interface, 2.0mm 2x5 pin header
On-board LAN
- 1x Intel® I217LM GbE PHY
- 1x Intel® I211 Gigabit Ethernet Controller
- RJ45 with LED connecter x 2
- Support Boot From LAN (PXE)
- RJ45 LED
- Support Wake on LAN
- Extra (External) LED: 2 x 4 pin header
I/O Interface
- ITE8783
- PS2 KB/MS reserve 1x6 (2.0m) JST connector
- 26-pin Box Header x 1 (2.0mm)
- SIO Box Header x 4 (2.0mm), COM1,3,4 support RS232, COM2
- RS232/422/485, RI pin can be select RI/5V/12V with jumper (2x3 pin 2.0mm pin-header)
- 4 Ports USB 2.0 and 4 ports USB 3.0:
- 2 ports through 2.5mm JST Connectors, located near Rear Side of PCB (near CPU, USB3.0)
- 4 ports through
- backplane (USB 2.0)
- 2 ports through I/O bracket (USB 3.0)
- 4-pin FAN connector x 2 (for CPU,System)
- On board pin header for IrDA Tx Rx 1x5/2.54mm pin-header
- HDD LED/ Power LED/ Power ON SW/ Reset SW
- On Board buzzer
- USBx1/ USBx1/ LAN1 RJ45 x1/ LAN2 RJ45 x1/ VGA DB15 from top to down
Power Requirements
- Power source from Backplane through Golden Finger and AUX +12V
- Support ATX/AT function by jumper setting
- BIOS default is (ATX MODE)
Power Requirements
- Power source from backplane through golden finger and AUX
- +12V
- Support ATX/AT function by jumper setting
- BIOS default is (ATX MODE)
Environment
- Board Level Operating temperatures: -15°C to 60°C
- Storage temperatures: -20°C to 85°C
- Relative humidity:
  10% to 90% (operating, non-condensing)
  5% to 95% (non-operating, non-condensing)
Dimension
- 338.58mm x 126.39mm, 8 layers (single side)
Certificate
- CE/FCC Class A compliant
