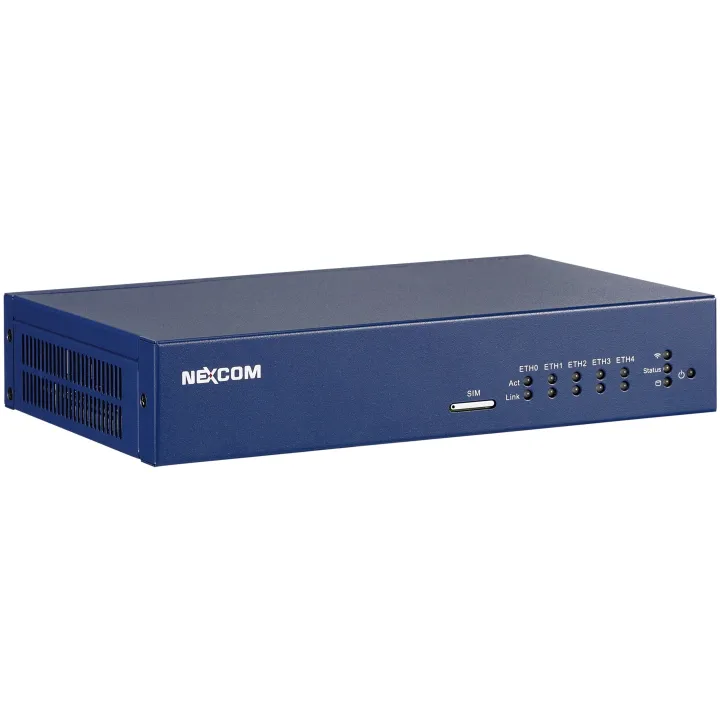

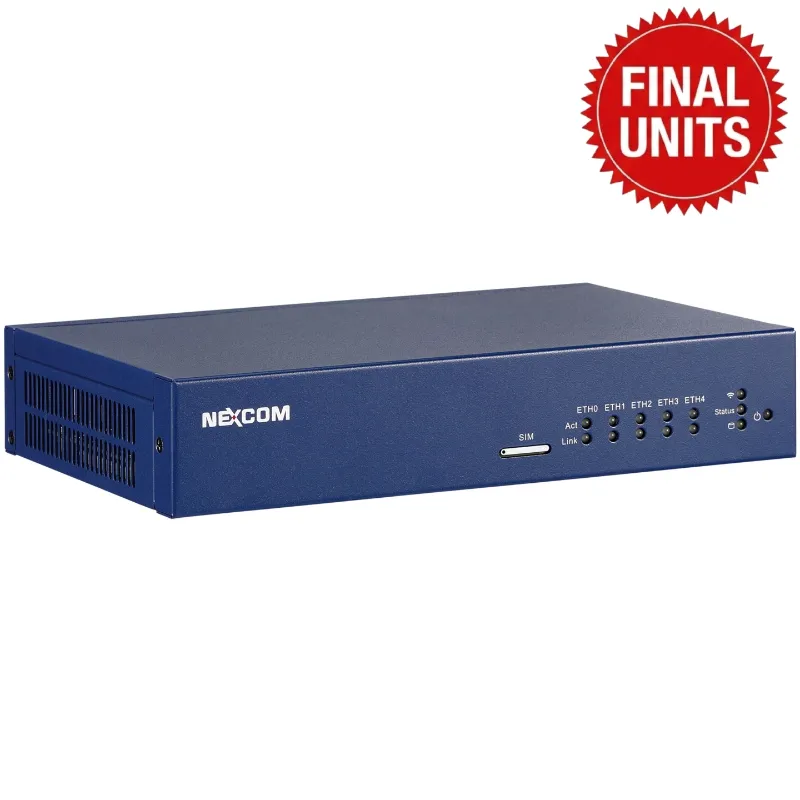

NEXCOM Desktop Network Appliance | DNA 130 Series

NEXCOM Desktop Network Appliance | DNA 130 Series

Intel Atom® processor x5-E3900 series SoC, BGA type

Discounted price:US$
Sale US$
MSRP US$
Use bonus pointspt.

Description：

Intel Atom® processor x5-E3900 series SoC, BGA type
DDR3L SO-DIMM memory, max. 8GB
Support 5 GbE LAN ports
Onboard eMMC 4GB
Wi-Fi/LTE (optional)
USB 2.0 connector
HDMI type A connector

Download file

Spec.

Processor
- Intel Atom® processor x5-E3900 series, BGA type
  - DNA 130: Intel Atom® x5-E3930, 2 cores, 1.3GHz
  - DNA 130A: Intel Atom® x5-E3940, 4 cores, 1.6GHz
  - DNA 130B: Intel Atom® x5-E3930, 2 cores, 1.3GHz
Memory
- 1 x DDR3L SO-DIMM ECC/non-ECC memory, max. 8GB
  - DNA 130/ DNA 130A: 1 x DDR3L non-ECC memory slot
  - DNA 130B: 1 x DDR3L SO-DIMM with ECC memory slot
LAN Features
- 5 x Copper ports
- LAN bypass: 1 pair
- 5 x LAN controller: Intel I211-AT
- Support 10/100/1000 link speed
Expansion
- 1 x mini-PCIe slot for Wi-Fi or LTE

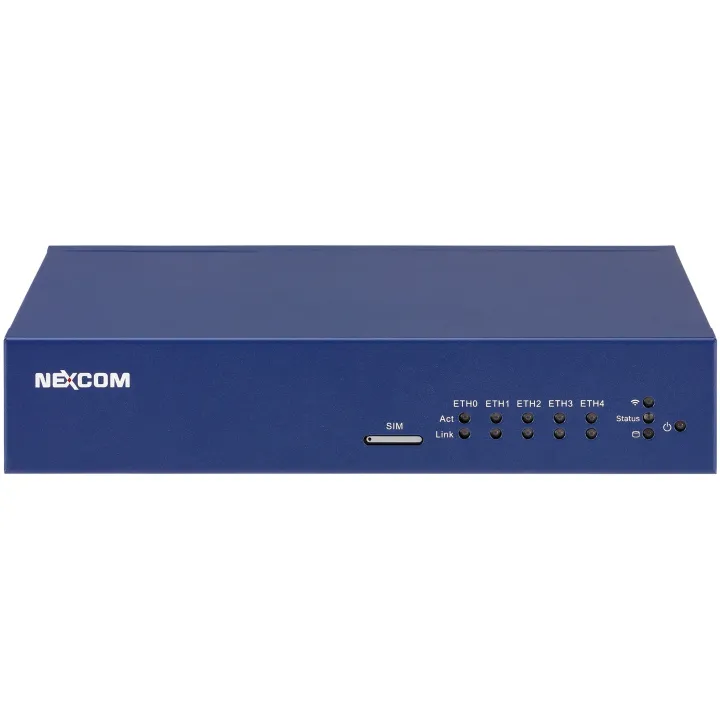

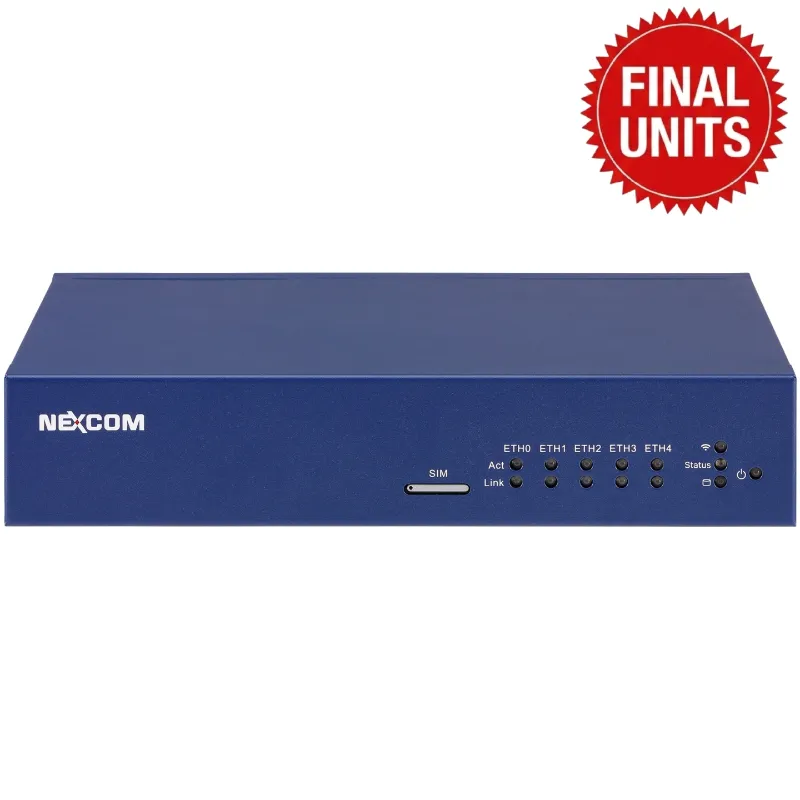

I/O Interface-Front
- Power status/HDD status/LAN status/Wi-Fi status
- SIM slot

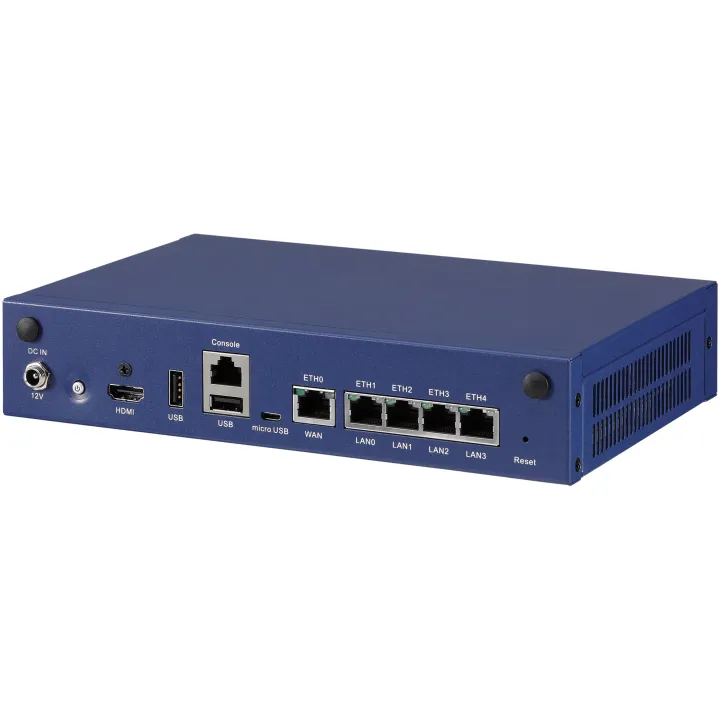

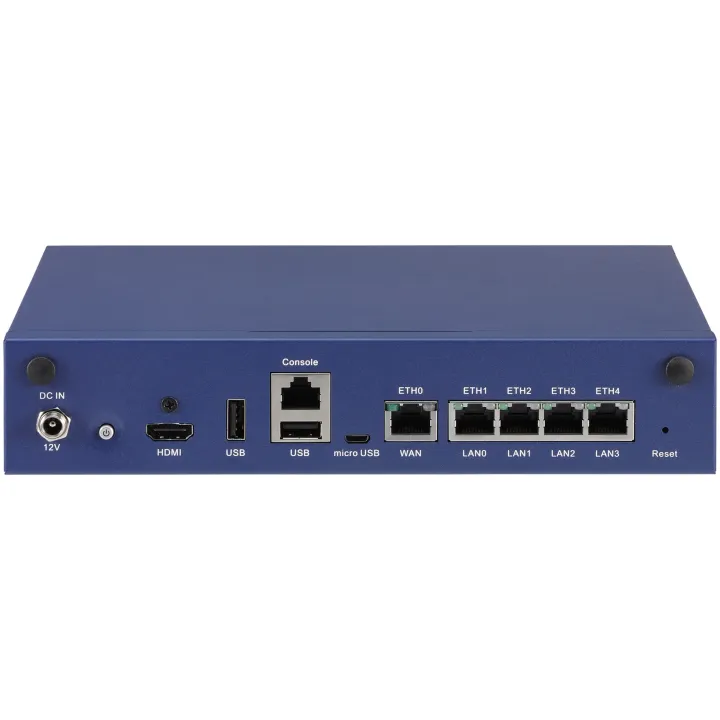

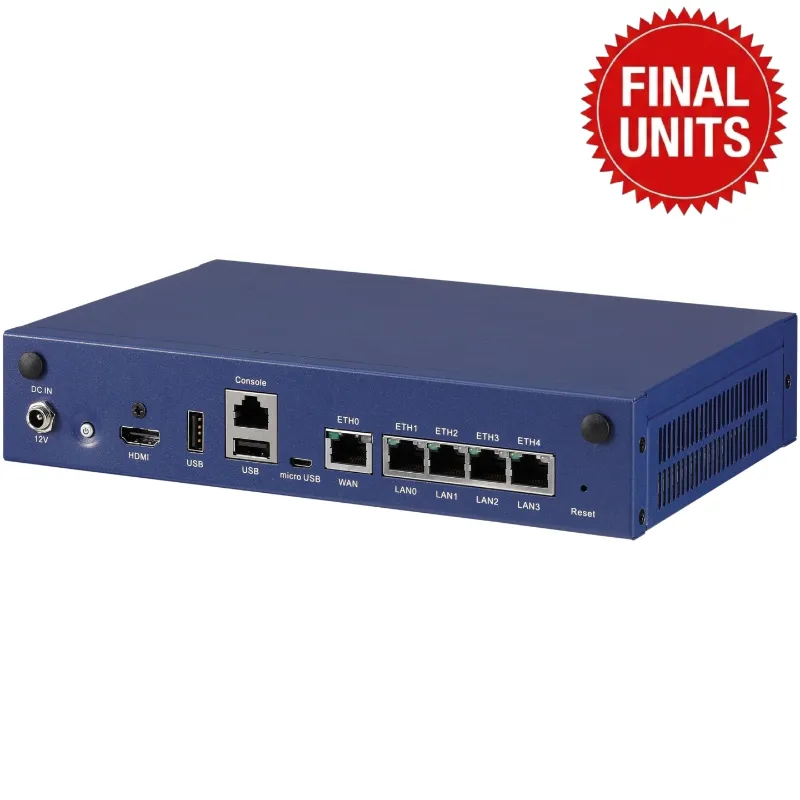

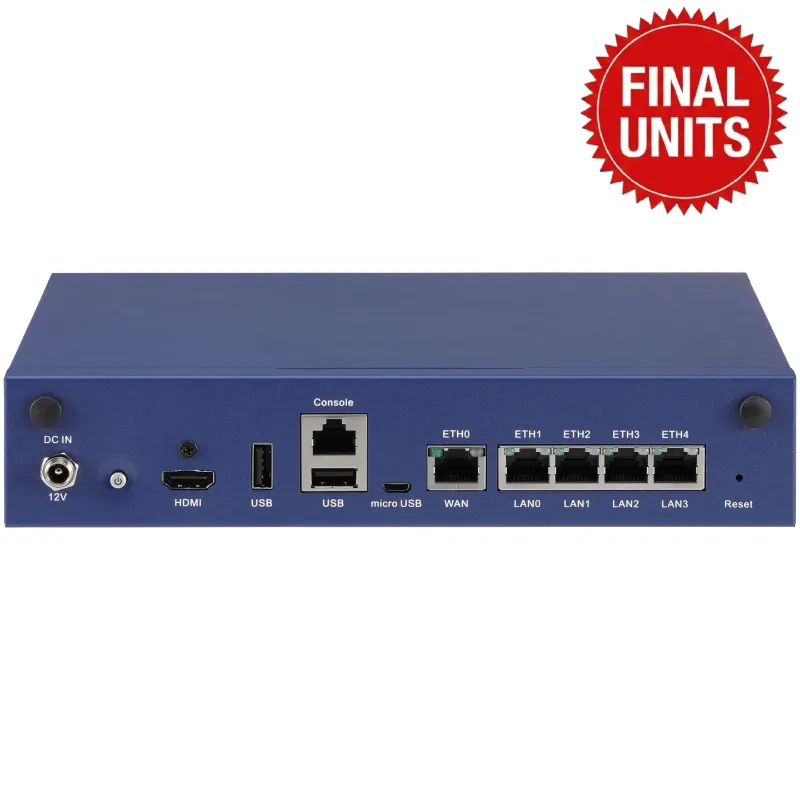

I/O Interface-Rear
- 2 x USB 2.0
- 1 x microUSB type console port (first priority)
- 1 x RJ45 type console port (secondary)
- 1 x RJ45 WAN port
- 4 x RJ45 copper ports
- 1 x Power button
- 1 x HDMI type A connector
- 1 x DC-in
- 1 x Reset button
Storage Device
- 1 x Onboard eMMC flash 4GB
- 1 x mSATA connector
Power Input
- DC 12V/3.33A 40W power adaptor
Dimensions
- Chassis dimension (mm): 225(W) x 150(D) x 44(H)
- Package dimension (mm): 275(W) x 230(D) x 185(H)
Weight
- Net weight: 1.1kg
- Gross weight: 2.1kg
Environment
- Ambient with air flows: 0°C~40°C
- Storage temperature: -20°C~80°C
- Relative humidity 10%~90% non-condensing
Certifications
- CE Approval
- FCC Class B
