NexCOBOT Robot Controller | MARS400 T10-05

NexCOBOT Robot Controller | MARS400 T10-05

Robotic Controller NVIDIA® Jetson Thor™

Merchandise number：10JF0MARS20X0

Discounted price:US$
Sale US$
MSRP US$
Use bonus pointspt.

Description：

NVIDIA® Jetson T5000™
14-core Arm® Neoverse®;-V3AE 64-bit CPU
1 MB L2 cache per core 16 MB shared system L3 cache
Single Display : HDMI
4 x USB 3.2 Gen2
4 x RJ45 port
8 x GMSL
3 x M.2 Slot
DC 24V to 48V input.
Support 0~50 °C operating temperature

Download file

Spec.

CPU Support
- 14-core Arm® Neoverse®-V3AE 64-bit CPU
- 1 MB L2 cache per core
- 16 MB shared system L3 cache
GPU Support
- 2560-core NVIDIA Blackwell architecture GPU
- 96 fifth-generation Tensor Cores
- 10 Tensor Processing Clusters (TPCs)
Memory
- 128 GB 256-bit LPDDR5X 273 GB/s
Storage
- M.2 Key M slot support NVMe up to 512GB (optional)
I/O Interface-Front
- 1 x HDMI
- 4 x RJ45 LAN
- 4 x USB 3.2 Gen2
- 8 x GMSL2
Expansion
- 1 x M.2 Key M slot: 2280 form factor (PCIe x4) for NVMe SSD
- 1 x M.2 Key B 3042/3052 (PCIe x1, USB3.0)
  - Support 4G/5G module
- 1 x M.2 Key E 2230 (PCIe x1 Gen1, USB2.0)
  - Support WiFi/BT module
Power Input
- DC 24V to 48V input
Dimensions
- Chassis dimension (mm): 172.6(W) x 145(D) x 99.5(H) mm
Construction
- Aluminum and metal chassis with cooling design
- Installation: wall-mounting
Environment
- Operating temperature: Ambient with air flow: 0°C to 50°C (according to IEC60068-2-1, IEC60068-2-2, IEC60068-2-14)
- Storage temperature: -20°C to 85°C
- Relative humidity: 25~50°C, 90% (non-condensing)
Certifications
- CE: EN61000-6-2, EN61000-6-4
- FCC Class A

Own Brand, Own Factory Production: High-quality assurance and global fast shipping.
Ships Fast: Orders are processed and shipped within 2 business days.
2-Year Global Warranty: Limited hardware warranty from the shipment date.
30-Day Return Policy: Satisfaction guarantee window (terms apply).
Free Shipping: Complimentary shipping on eligible global orders.
Direct Support: For any usage issues after purchase, please feel free to contact us anytime.

NEXCOM Return & Warranty Policy

1. Return Window (30 Days)

Customers may request a return or exchange within 30 days. The period is calculated from the shipment date (as shown on the invoice) to the date the return request is formally submitted.

* Please note: A "Return" (for refund) is distinct from our "2-Year Hardware Warranty" (for repair).

2. 2-Year Limited Warranty

We provide a 2-year warranty on all Industrial PC hardware, starting from the shipment date. This covers technical defects in materials and workmanship. During this period, NEXCOM offers repair or replacement services according to the RMA evaluation.

3. Return Conditions

Items must be in original, unused condition with all original packaging, manuals, and accessories.
Customized Orders: IPCs with specific custom configurations (e.g., custom RAM/SSD/OS) are Non-Returnable unless a hardware defect is confirmed.
Electronic components must be returned in their original anti-static packaging.

4. Shipping & Destination

All returns must be shipped back to our headquarters in Taiwan:

Return Address:
NEXCOM International Co., Ltd.
9F, No.920, Zhongzheng Rd., Zhonghe Dist.,
New Taipei City, Taiwan 235015

Scenario	Cost Responsibility
Defective Items (DOA)	Seller covers return shipping.
Non-Defective Returns	Buyer covers shipping and duties. Restocking fees will be quoted based on actual inspection of the returned unit.

5. RMA Procedure

To initiate a return, please email us at ecommerce@nexcom.com.tw to obtain an RMA number.

* Shipments without an RMA number clearly marked on the outer box will be refused and returned at the sender's expense.

Contact Us: ecommerce@nexcom.com.tw
NEXCOM International Co., Ltd. | Industrial Computing Solutions

MARS400 T10-05 Data Sheet
- NEXCOM AIoT Mart Customer Service Email: ecommerce@nexcom.com.tw

Specifications
CPU Support

14-core Arm® Neoverse®-V3AE 64-bit CPU

1 MB L2 cache per core

16 MB shared system L3 cache
GPU Support

2560-core NVIDIA Blackwell architecture GPU

96 fifth-generation Tensor Cores

10 Tensor Processing Clusters (TPCs)
Memory

128 GB 256-bit LPDDR5X 273 GB/s
Storage

M.2 Key M slot support NVMe up to 512GB (optional)
I/O Interface-Front

1 x HDMI

4 x RJ45 LAN

4 x USB 3.2 Gen2

8 x GMSL2
Expansion

1 x M.2 Key M slot: 2280 form factor (PCIe x4) for NVMe SSD

1 x M.2 Key B 3042/3052 (PCIe x1, USB3.0)

Support 4G/5G module

1 x M.2 Key E 2230 (PCIe x1 Gen1, USB2.0)

Support WiFi/BT module
Power Input

DC 24V to 48V input
Dimensions

Chassis dimension (mm): 172.6(W) x 145(D) x 99.5(H) mm
Construction

Aluminum and metal chassis with cooling design

Installation: wall-mounting
Environment

Operating temperature: Ambient with air flow: 0°C to 50°C (according to IEC60068-2-1, IEC60068-2-2, IEC60068-2-14)

Storage temperature: -20°C to 85°C

Relative humidity: 25~50°C, 90% (non-condensing)
Certifications

CE: EN61000-6-2, EN61000-6-4

FCC Class A

After-sales service

Own Brand, Own Factory Production: High-quality assurance and global fast shipping.
Ships Fast: Orders are processed and shipped within 2 business days.
2-Year Global Warranty: Limited hardware warranty from the shipment date.
30-Day Return Policy: Satisfaction guarantee window (terms apply).
Free Shipping: Complimentary shipping on eligible global orders.
Direct Support: For any usage issues after purchase, please feel free to contact us anytime.

NEXCOM Return & Warranty Policy

1. Return Window (30 Days)

Customers may request a return or exchange within 30 days. The period is calculated from the shipment date (as shown on the invoice) to the date the return request is formally submitted.

* Please note: A "Return" (for refund) is distinct from our "2-Year Hardware Warranty" (for repair).

2. 2-Year Limited Warranty

3. Return Conditions

Items must be in original, unused condition with all original packaging, manuals, and accessories.
Customized Orders: IPCs with specific custom configurations (e.g., custom RAM/SSD/OS) are Non-Returnable unless a hardware defect is confirmed.
Electronic components must be returned in their original anti-static packaging.

4. Shipping & Destination

All returns must be shipped back to our headquarters in Taiwan:

Return Address:
NEXCOM International Co., Ltd.
9F, No.920, Zhongzheng Rd., Zhonghe Dist.,
New Taipei City, Taiwan 235015

Scenario	Cost Responsibility
Defective Items (DOA)	Seller covers return shipping.
Non-Defective Returns	Buyer covers shipping and duties. Restocking fees will be quoted based on actual inspection of the returned unit.

5. RMA Procedure

To initiate a return, please email us at ecommerce@nexcom.com.tw to obtain an RMA number.

* Shipments without an RMA number clearly marked on the outer box will be refused and returned at the sender's expense.

Contact Us: ecommerce@nexcom.com.tw
NEXCOM International Co., Ltd. | Industrial Computing Solutions

Download

MARS400 T10-05 Data Sheet
Contact Us
- NEXCOM AIoT Mart Customer Service Email: ecommerce@nexcom.com.tw

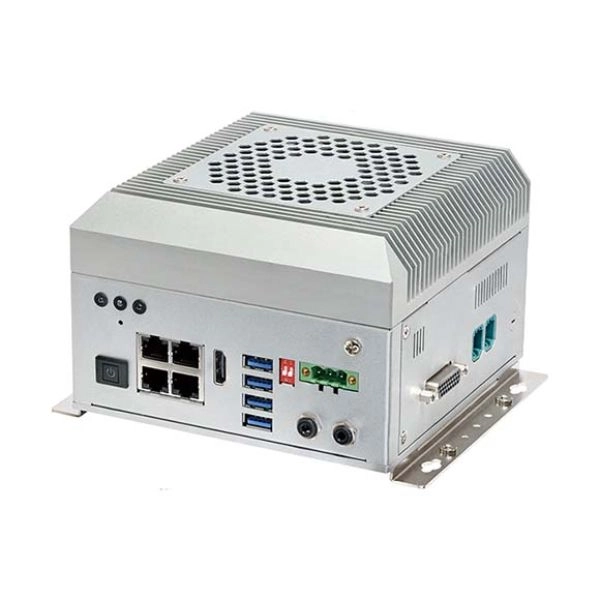

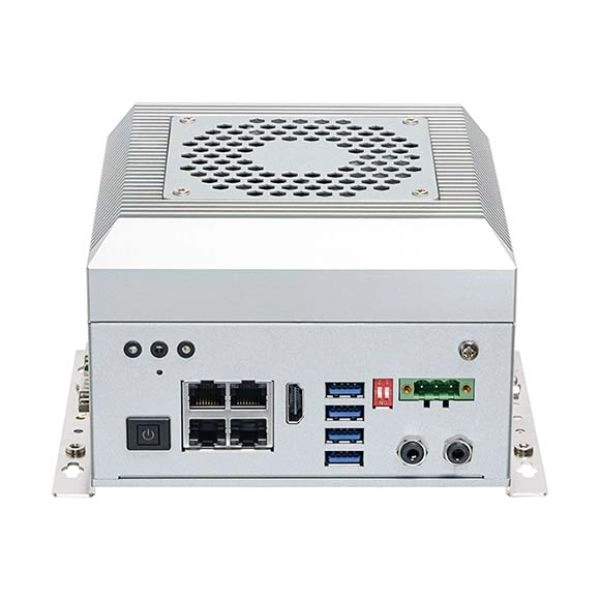

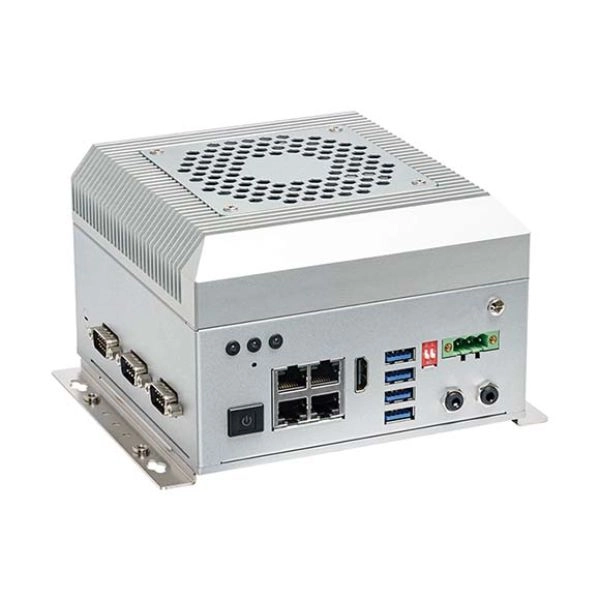

NexCOBOT MARS400 T10-05 Robot Controller

The MARS400-T10-05 is a high-performance, highly integrated control platform designed for advanced robotics, motion control, and AI-driven automation applications. Accelerated by the NVIDIA® Jetson T5000™, it is ideally suited for humanoid robots, quadruped robots, autonomous mobile robots (AMRs), smart manufacturing, and intelligent sensing systems. With built-in motion control and AI capabilities, the platform significantly shortens development cycles and accelerates innovation in robotics and AI.

At its core, the MARS400-T10-05 integrates the Jetson T5000 system-on-module (SOM), featuring a 2560-core NVIDIA Blackwell architecture GPU, 96 fifth-generation Tensor Cores, and 10 Tensor Processing Clusters (TPCs) configured with Multi-Instance GPU (MIG) technology. This configuration delivers an impressive 2070 TFLOPS of AI inference performance (FP4 – Sparse), enabling compute-intensive and multi-tasking workloads in edge AI systems.

The MARS400-T10-05 offers rich and flexible I/O interfaces, including 4 x Gigabit Ethernet ports for sensor, camera, and network connectivity, 4 x USB 3.2 ports for high-speed peripheral integration, 8 x GMSL (Gigabit Multimedia Serial Link) ports for high- resolution camera or synchronized sensor input, supporting high-bandwidth video and data streams

With its powerful AI computing capabilities, flexible connectivity, and modular architecture, the MARS400-T10-05 is the ideal solution for accelerating innovation in robotics and edge AI. It empowers developers to rapidly deploy intelligent functions and bring cutting-edge products to market faster.

High-Efficiency Edge Computing

Powered by NVIDIA Jetson T5000 with a 14-core Arm Neoverse-V3AE CPU and 2560-core Blackwell architecture GPU delivering 2070 TFLOPS FP4 AI performance.

Multimodal Sensor Connectivity

Equipped with 8x GMSL2 camera ports, 4x Gigabit Ethernet RJ45 ports, 4x USB 3.2 Gen2 ports, and 1x HDMI display output for high-bandwidth video streams.

High-Bandwidth Memory & Storage

Integrated 128GB 256-bit LPDDR5X memory with 273 GB/s bandwidth and 1x M.2 Key M 2280 slot for optional NVMe SSD expansion.

Expandable Wireless Capabilities

Features 1x M.2 Key B 3042/3052 slot for 5G/4G LTE modules and 1x M.2 Key E 2230 slot for Wi-Fi/Bluetooth module expansion.

Rugged Industrial Architecture

Supports 24V to 48V DC input range, operates from 0°C to 50°C in an aluminum wall-mount chassis with CE and FCC Class A certifications.
