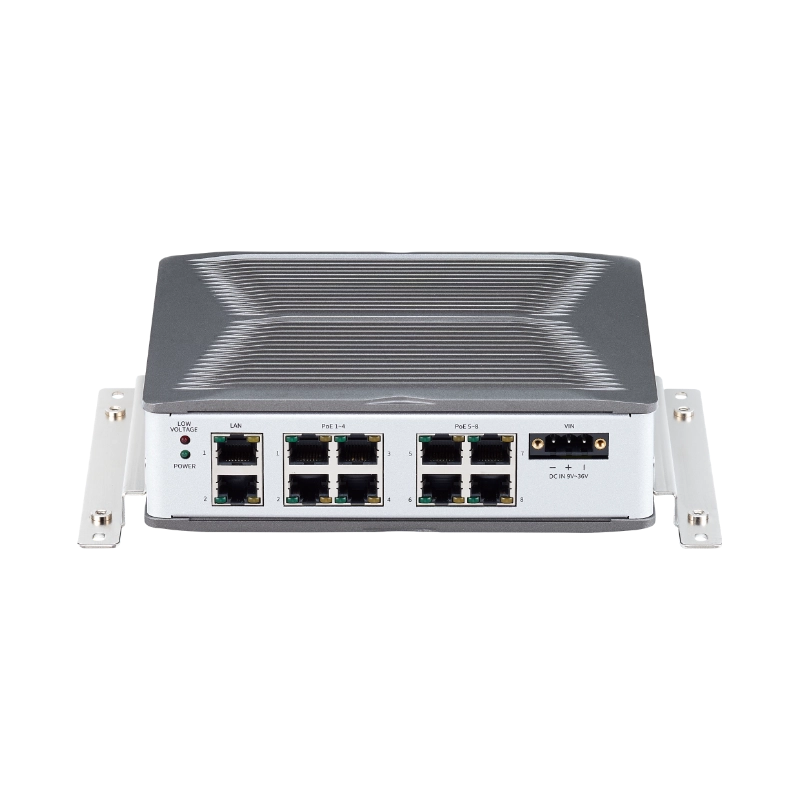

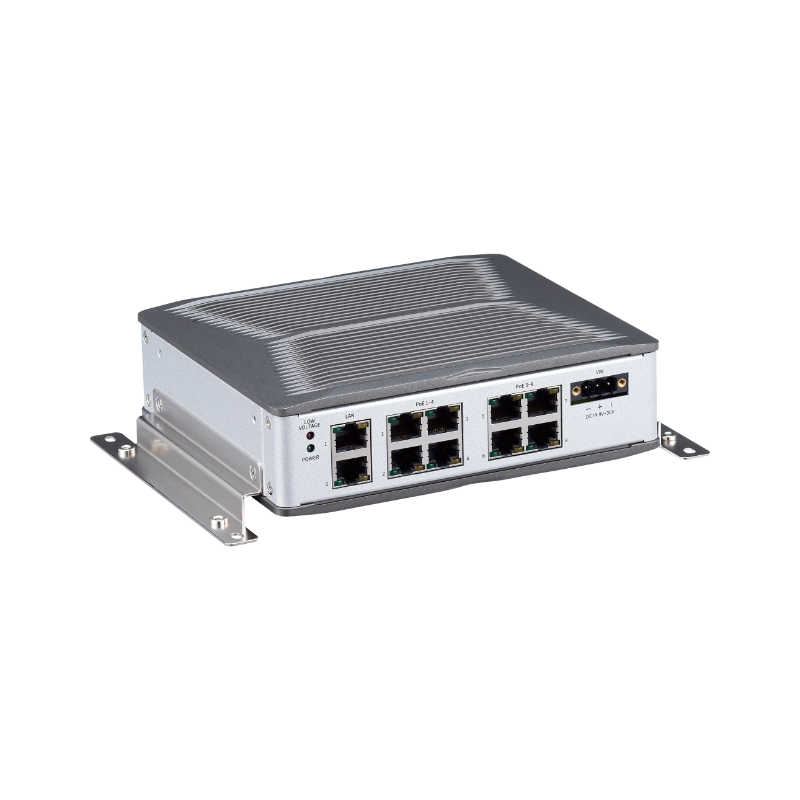

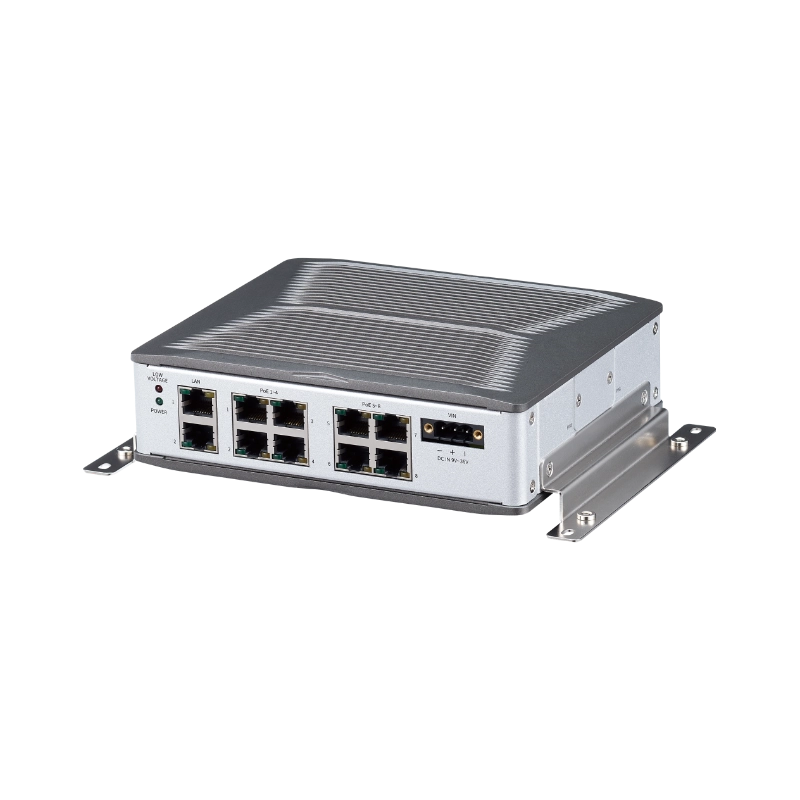

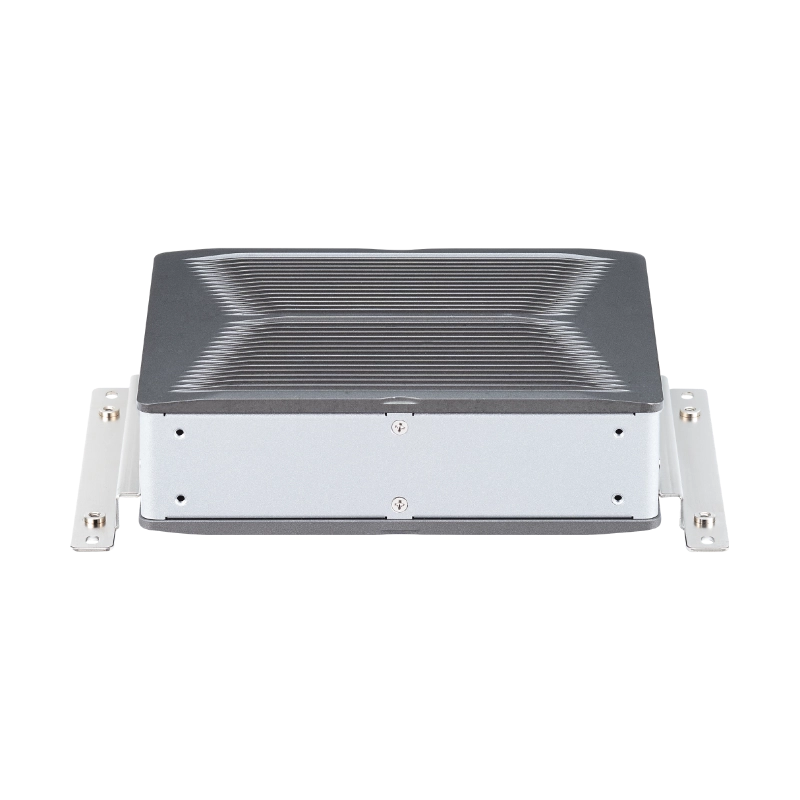

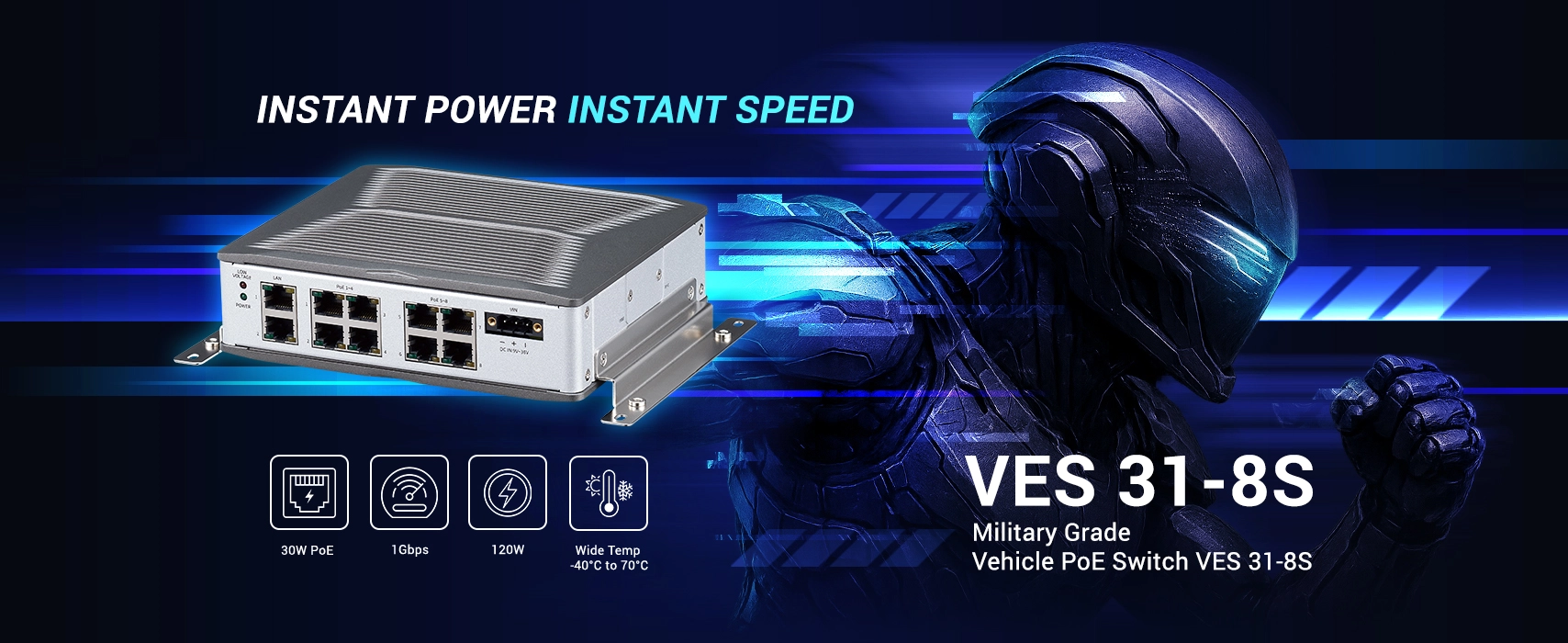

NEXCOM Industrial PoE Switch | VES31-8S

Powering Your Network, Perfected.

Merchandise number：10VE0003101X0

Discounted price:US$
Sale US$
MSRP US$
Use bonus pointspt.

Description：

Power Over Ethernet, Perfected.
High-power, versatile PoE solutions.
Power and Performance.
Delivering reliable power and data over Ethernet.
Robust and Reliable.
Built for demanding environments.
Power Your Network, Anywhere.
Wide voltage input and extreme temperature operation.
Scalable and Flexible.
Expand your network with multiple PoE ports and jumbo frame support.
Certified Reliability.
CE, FCC, UKCA, and E13 certifications for global compliance.
Ignite Your Network.
Ignition power on/off for vehicle applications.
High-Power PoE+.
Power demanding devices like IP cameras and wireless access points.
Extreme Temperature Operation.
Built to withstand harsh environments.
Network Flexibility.
Jumbo frame support for optimal performance.
Safety and Compliance.
Certified for global use in various applications.

Download file

Spec.

Architecture
- Switch architecture. highly integrated, unmanaged-smart gigabit, store and forward switch
- 2K entry MAC address table with 4-way hash algorism

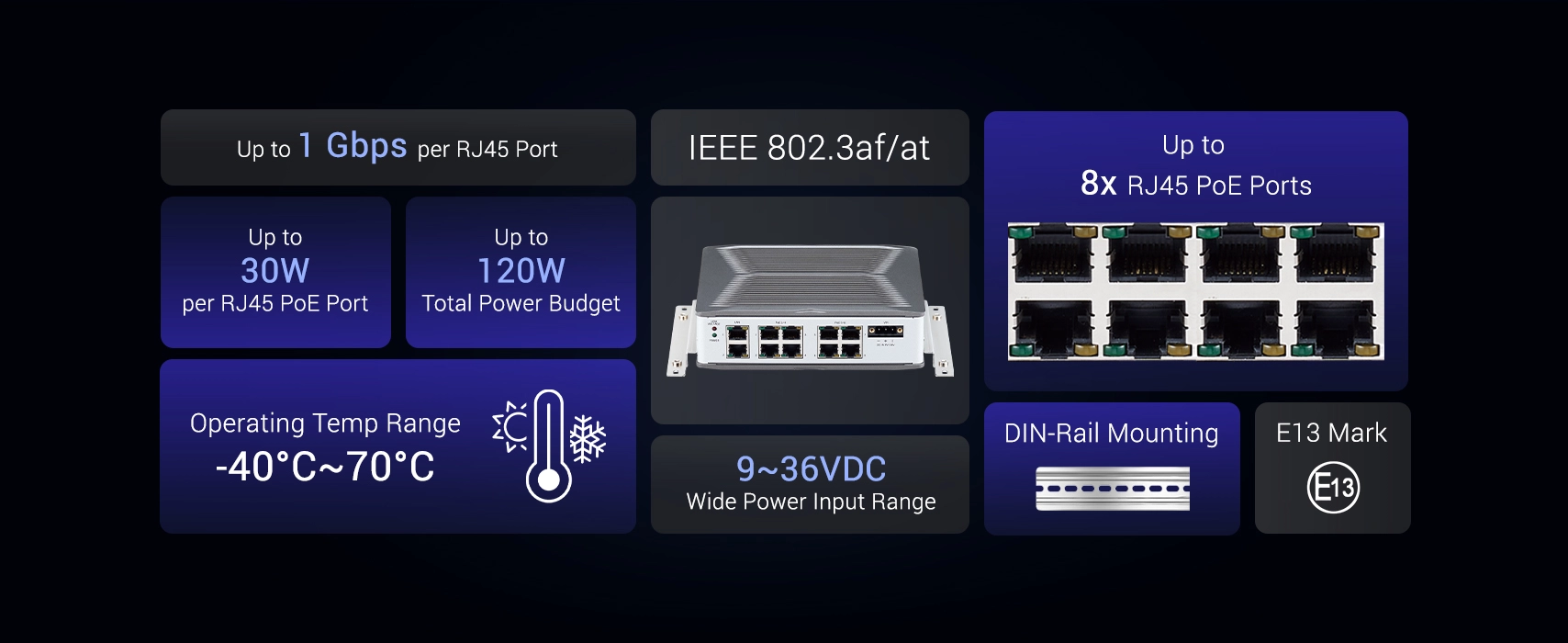

Power over Ethernet

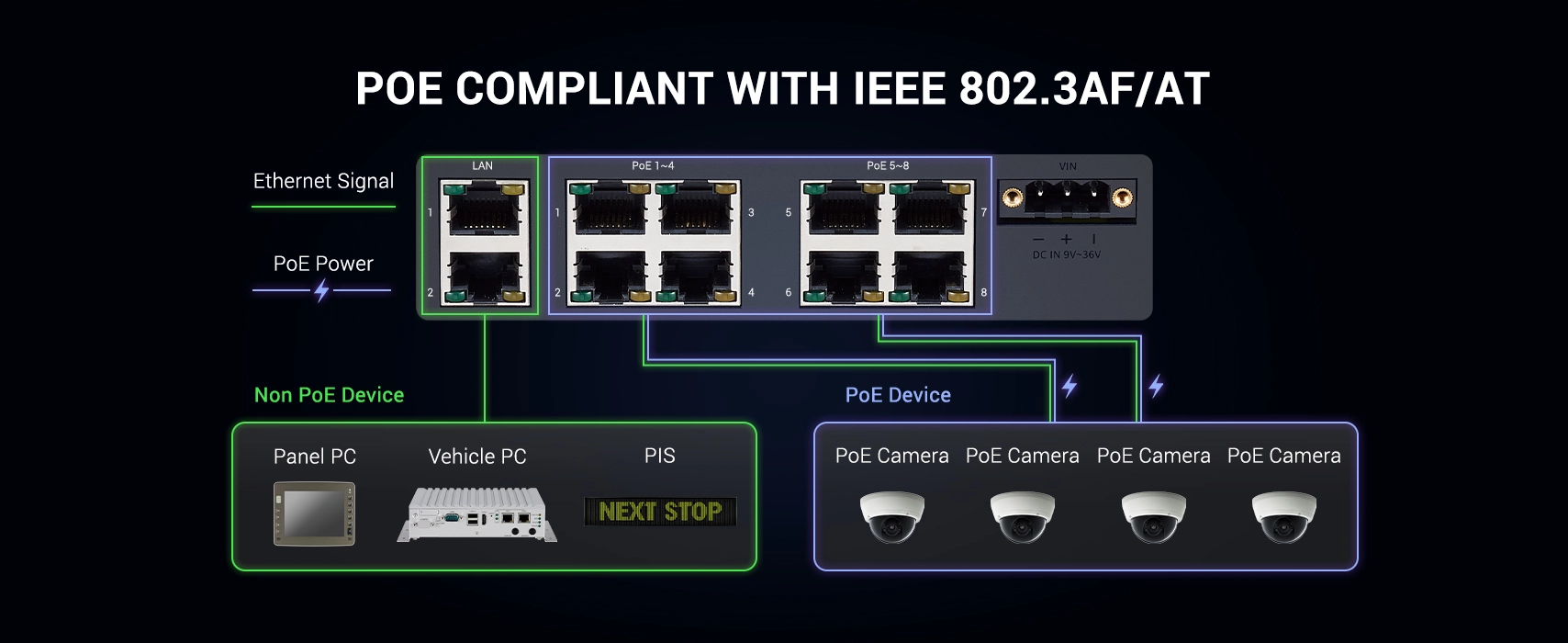

- PoE standard IEEE 802.3af/at power over Ethernet/PSE
- PoE power supply type end-span
- PoE power output per port 54V DC, 550mA. max. 30 watts
Network Connector

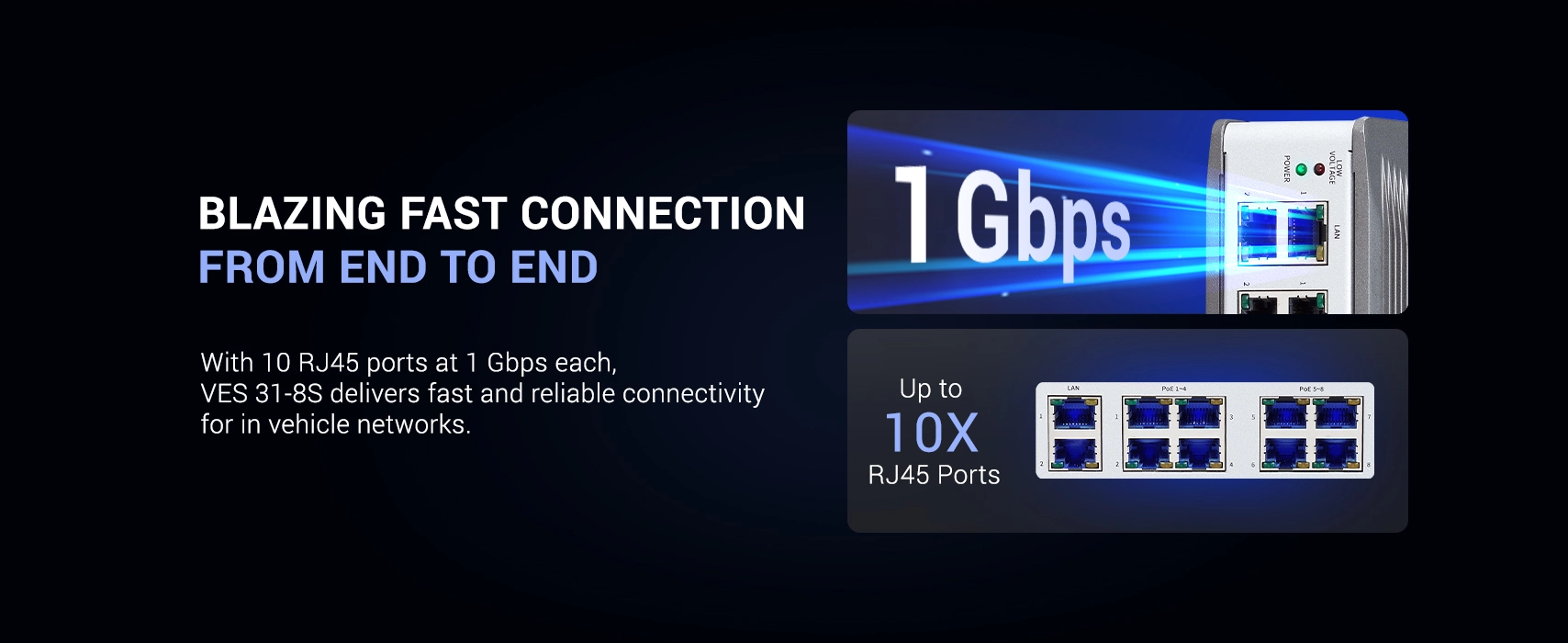

- 8-port RJ45 for 10/100/1000 base-T. PoE IEEE 802.3af/at compliance, total 120W
- 2-port RJ45 for 10/100/1000 base-T
Standard Compliance
- IEEE 802.3 for 10BaseT Ethernet
- IEEE 802.3u for 100BaseT(X) Fast Ethernet
- IEEE 802.3ab for 1000BaseT(X) Gigabit Ethernet
- IEEE 802.3x for flow control
- IEEE 802.3af/at Power Over Ethernet
I/O Interface
- Power: 9~36VDC input with ignition
- Ethernet
  - 4/8 x RJ45 10/100/1000 Mbps PoE port, 802.3af/at compliance
  - 2 x RJ45 10/100/1000 Mbps
- LED
  - 1 x power indicator
  - (RJ45 for PoE) 4/8 x PoE indicator+4/8 x Link/Active indicator
  - (RJ45 for LAN) 2 x Link indicator+2 x Active indicator
  - 1 x low voltage protection indicator
Power Management
- Selectable boot-up & shut-down voltage for low power protection by DIP switch
- Power on/off delay time setting by DIP switch
Dimensions
- 211 x 55 x 140 mm (83" x 21.65" x 55.1") with wall mount bracket
- Weight: 1kg

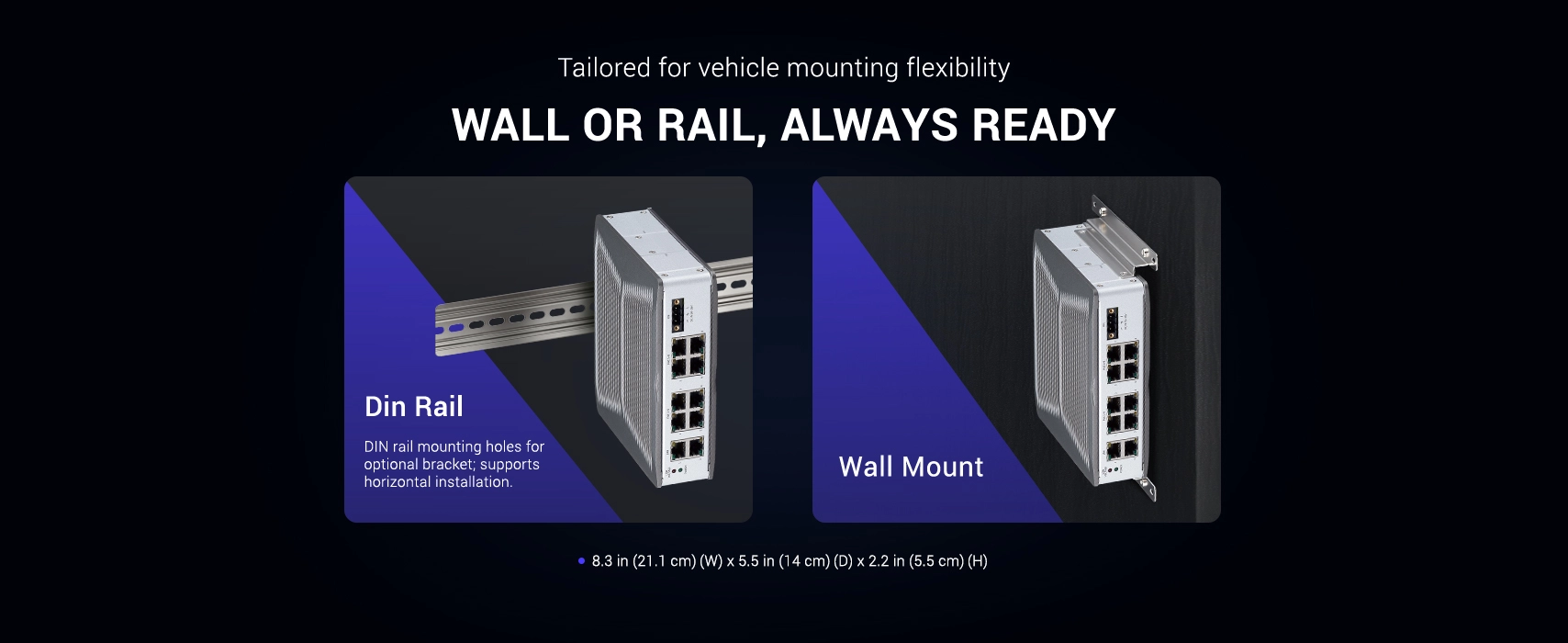

- Support horizontal mounting, DIN- Rail mounting (option)
Environment
- Operating temperatures: -40°C to 70°C with air flow
- Storage temperatures: -40°C to 85°C
- Relative humidity: 10% to 90% (non-condensing)
- Vibration (random): 2g@5~500 Hz
- Vibration:
  - Operating: MIL-STD-810H, Method 514.8C Procedure 1, Category 4, common carrier US highway truck vibration exposure
  - Storage: MIL-STD-810H, Method 514.8E Procedure 1, Category 24
- Shock:
  - Operating: MIL-STD-810H, Method 516.8 Procedure I, trucks and semi-trailers=40g
  - Non-Operating: MIL-STD-810H, Method 516.8 Procedure V, crash hazard shock test=75g
Standards/Certifications
- CE approval
- FCC Class A
- UKCA
- E Mark

Own Brand, Own Factory Production: High-quality assurance and global fast shipping.
Ships Fast: Orders are processed and shipped within 2 business days.
2-Year Global Warranty: Limited hardware warranty from the shipment date.
30-Day Return Policy: Satisfaction guarantee window (terms apply).
Free Shipping: Complimentary shipping on eligible global orders.
Direct Support: For any usage issues after purchase, please feel free to contact us anytime.

NEXCOM Return & Warranty Policy

1. Return Window (30 Days)

Customers may request a return or exchange within 30 days. The period is calculated from the shipment date (as shown on the invoice) to the date the return request is formally submitted.

* Please note: A "Return" (for refund) is distinct from our "2-Year Hardware Warranty" (for repair).

2. 2-Year Limited Warranty

We provide a 2-year warranty on all Industrial PC hardware, starting from the shipment date. This covers technical defects in materials and workmanship. During this period, NEXCOM offers repair or replacement services according to the RMA evaluation.

3. Return Conditions

Items must be in original, unused condition with all original packaging, manuals, and accessories.
Customized Orders: IPCs with specific custom configurations (e.g., custom RAM/SSD/OS) are Non-Returnable unless a hardware defect is confirmed.
Electronic components must be returned in their original anti-static packaging.

4. Shipping & Destination

All returns must be shipped back to our headquarters in Taiwan:

Return Address:
NEXCOM International Co., Ltd.
9F, No.920, Zhongzheng Rd., Zhonghe Dist.,
New Taipei City, Taiwan 235015

Scenario	Cost Responsibility
Defective Items (DOA)	Seller covers return shipping.
Non-Defective Returns	Buyer covers shipping and duties. Restocking fees will be quoted based on actual inspection of the returned unit.

5. RMA Procedure

To initiate a return, please email us at ecommerce@nexcom.com.tw to obtain an RMA number.

* Shipments without an RMA number clearly marked on the outer box will be refused and returned at the sender's expense.

Contact Us: ecommerce@nexcom.com.tw
NEXCOM International Co., Ltd. | Industrial Computing Solutions

NEXCOM VES 31-8S Datasheet
- NEXCOM AIoT Mart Customer Service Email: ecommerce@nexcom.com.tw
Access NEXCOM Industrial Solutions on Our Official Online Channels:

Specifications
Architecture

Switch architecture. highly integrated, unmanaged-smart gigabit, store and forward switch

2K entry MAC address table with 4-way hash algorism
Power over Ethernet

PoE standard IEEE 802.3af/at power over Ethernet/PSE

PoE power supply type end-span

PoE power output per port 54V DC, 550mA. max. 30 watts
Network Connector

8-port RJ45 for 10/100/1000 base-T. PoE IEEE 802.3af/at compliance, total 120W

2-port RJ45 for 10/100/1000 base-T
Standard Compliance

IEEE 802.3 for 10BaseT Ethernet

IEEE 802.3u for 100BaseT(X) Fast Ethernet

IEEE 802.3ab for 1000BaseT(X) Gigabit Ethernet

IEEE 802.3x for flow control

IEEE 802.3af/at Power Over Ethernet
I/O Interface

Power: 9~36VDC input with ignition

Ethernet
- 4/8 x RJ45 10/100/1000 Mbps PoE port, 802.3af/at compliance
- 2 x RJ45 10/100/1000 Mbps

LED
- 1 x power indicator
- (RJ45 for PoE) 4/8 x PoE indicator+4/8 x Link/Active indicator
- (RJ45 for LAN) 2 x Link indicator+2 x Active indicator
- 1 x low voltage protection indicator
Power Management

Selectable boot-up & shut-down voltage for low power protection by DIP switch

Power on/off delay time setting by DIP switch
Dimensions

211 x 55 x 140 mm (83" x 21.65" x 55.1") with wall mount bracket

Weight: 1kg

Support horizontal mounting, DIN- Rail mounting (option)
Environment

Operating temperatures: -40°C to 70°C with air flow

Storage temperatures: -40°C to 85°C

Relative humidity: 10% to 90% (non-condensing)

Vibration (random): 2g@5~500 Hz

Vibration:
- Operating: MIL-STD-810H, Method 514.8C Procedure 1, Category 4, common carrier US highway truck vibration exposure
- Storage: MIL-STD-810H, Method 514.8E Procedure 1, Category 24

Shock:
- Operating: MIL-STD-810H, Method 516.8 Procedure I, trucks and semi-trailers=40g
- Non-Operating: MIL-STD-810H, Method 516.8 Procedure V, crash hazard shock test=75g
Standards/Certifications

CE approval

FCC Class A

UKCA

E Mark

After-sales service

Own Brand, Own Factory Production: High-quality assurance and global fast shipping.
Ships Fast: Orders are processed and shipped within 2 business days.
2-Year Global Warranty: Limited hardware warranty from the shipment date.
30-Day Return Policy: Satisfaction guarantee window (terms apply).
Free Shipping: Complimentary shipping on eligible global orders.
Direct Support: For any usage issues after purchase, please feel free to contact us anytime.

NEXCOM Return & Warranty Policy

1. Return Window (30 Days)

Customers may request a return or exchange within 30 days. The period is calculated from the shipment date (as shown on the invoice) to the date the return request is formally submitted.

* Please note: A "Return" (for refund) is distinct from our "2-Year Hardware Warranty" (for repair).

2. 2-Year Limited Warranty

3. Return Conditions

Items must be in original, unused condition with all original packaging, manuals, and accessories.
Customized Orders: IPCs with specific custom configurations (e.g., custom RAM/SSD/OS) are Non-Returnable unless a hardware defect is confirmed.
Electronic components must be returned in their original anti-static packaging.

4. Shipping & Destination

All returns must be shipped back to our headquarters in Taiwan:

Return Address:
NEXCOM International Co., Ltd.
9F, No.920, Zhongzheng Rd., Zhonghe Dist.,
New Taipei City, Taiwan 235015

Scenario	Cost Responsibility
Defective Items (DOA)	Seller covers return shipping.
Non-Defective Returns	Buyer covers shipping and duties. Restocking fees will be quoted based on actual inspection of the returned unit.

5. RMA Procedure

To initiate a return, please email us at ecommerce@nexcom.com.tw to obtain an RMA number.

* Shipments without an RMA number clearly marked on the outer box will be refused and returned at the sender's expense.

Contact Us: ecommerce@nexcom.com.tw
NEXCOM International Co., Ltd. | Industrial Computing Solutions

Download

NEXCOM VES 31-8S Datasheet
Contact Us
- NEXCOM AIoT Mart Customer Service Email: ecommerce@nexcom.com.tw
Online Shopping

Access NEXCOM Industrial Solutions on Our Official Online Channels:

NEXCOM VES 31-8S Industrial PC

Powering the Future of Transportation: NEXCOM VES 31-8S

NEXCOM VES 31-8S of fanless, unmanaged mobile PoE switches is designed to meet the rigorous demands of the transportation industry. These ruggedized devices offer reliable power and data delivery, ensuring seamless operation in even the harshest environments.

Product Features

Robust Design:
Built to withstand shock, vibration, and extreme temperatures.
Reliable Power Delivery:
Provides up to 120W of PoE power for multiple devices.
Flexible Connectivity:
Offers multiple Gigabit Ethernet ports for diverse networking needs.
Advanced Security:
Ensures data integrity and security with robust security features.
Easy Installation:
Compact and lightweight design for hassle-free deployment.

Ideal for:

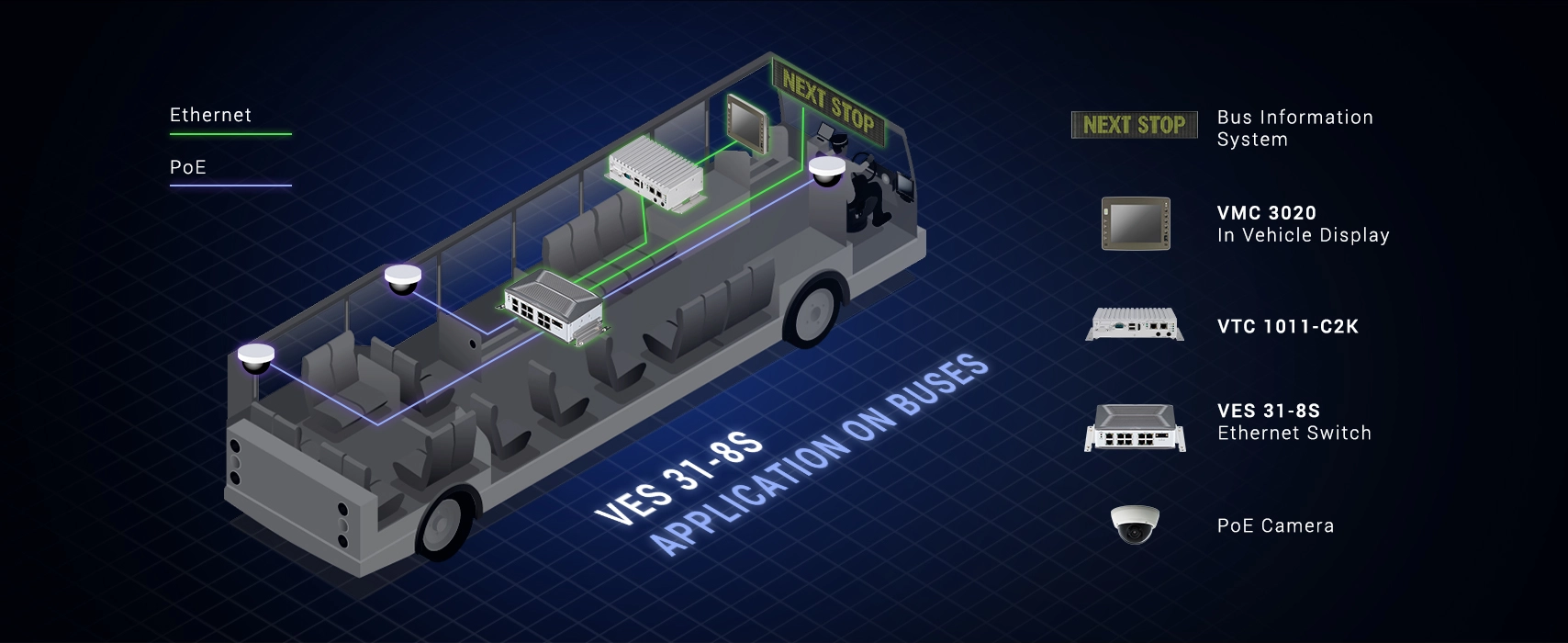

Public Transportation:
Enhance passenger experience with real-time information and entertainment.
Commercial Vehicles:
Optimize fleet operations with advanced telematics solutions.
Industrial Applications:
Power and connect devices in demanding industrial settings.

Benefits

Improved Efficiency:
Streamline operations and reduce downtime.
Enhanced Security:
Protect your network and critical data.
Increased Productivity:
Enable remote monitoring and control.
Enhanced Passenger Experience:
Provide seamless connectivity and entertainment.

Experience the Power of NEXCOM

The NEXCOM VES 31 -8S is the perfect solution for your transportation needs. With its rugged design, advanced features, and reliable performance, it will help you build a smarter, safer, and more efficient fleet.
